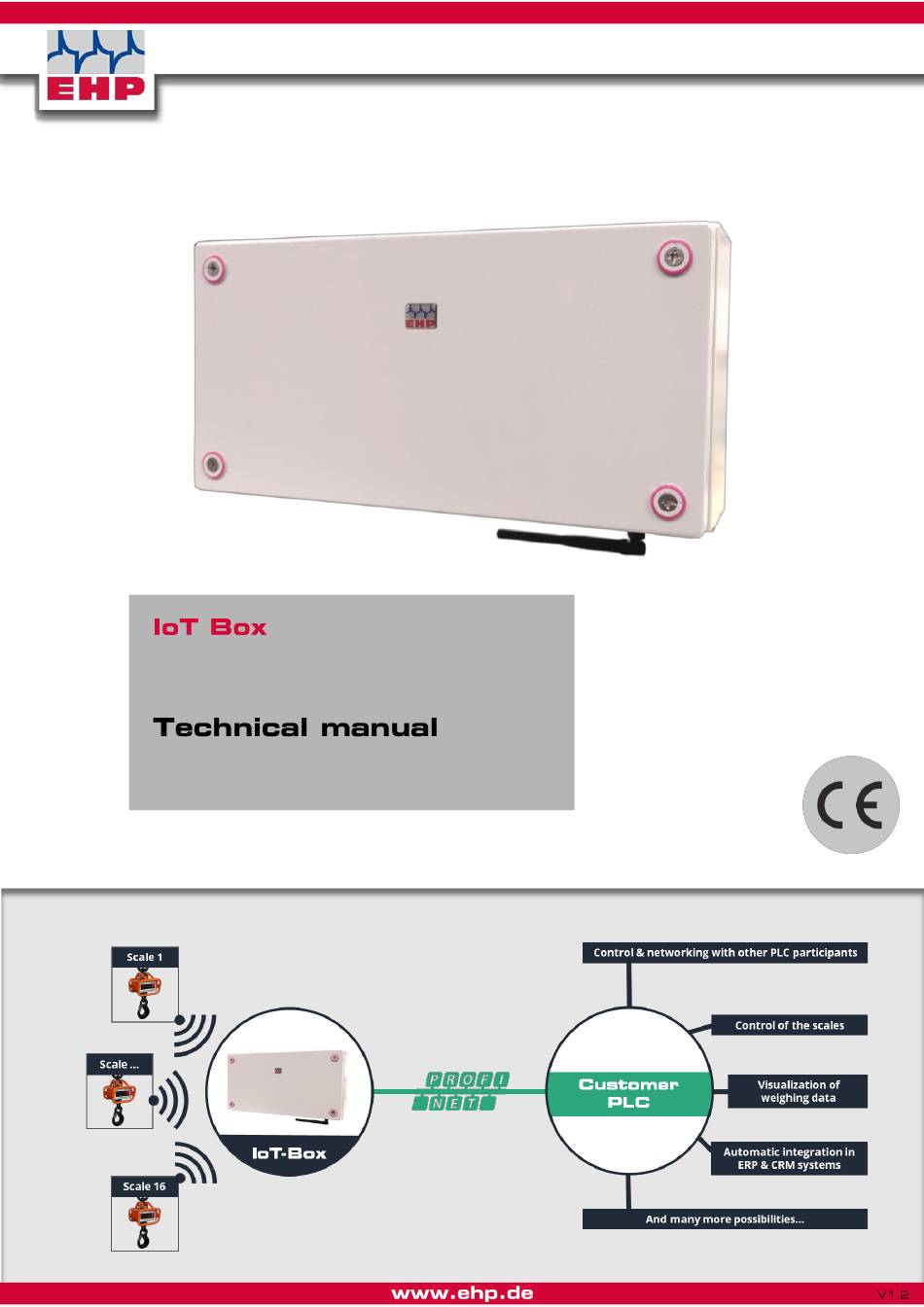

EHP IoT Box Technical Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the IoT Box and is the answer not in the manual?

Questions and answers

Summary of Contents for EHP IoT Box

  • Page 2 Warranty ............................. 6 Power & Network Connection ......................11 Site ....................Fehler! Textmarke nicht definiert. TIA Portal ............................15 Section “Error Codes” ........................17 Section “Weight Registered at Standstill” ..................18 Section “Weighing value request” ....................19 Section “Weighing value unique request” ..................19 Section “Physical Inputs”...
  • Page 3 Address: Dieselstrasse 8 D-77815 Bühl (Baden) hereby declares that the product: Data Receiver Type IoT Box with all options complies with the following harmonized standards: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 according to directive 2004/30/EU (electromagnetic compatibility)
  • Page 4 In this technical manual you will find the necessary information for installation & operation of the IoT Box. ► Read this manual before operating the product. This will protect you and prevent damage to your device. ► Always keep this manual in a place where employees, service personnel, etc. can view it. Present this manual to the inspector or the contracted specialist company at each recurring inspection.
  • Page 5 To avoid exposing yourself to the risk of electric shock, do not remove the housing cover. There are no user-repairable parts inside the unit. Leave repairs to the qualified EHP customer service. There is a risk of contact with non-insulated parts inside the device, which can lead to electric shocks.
  • Page 6 The warranty is void in the event of: • Non-intended use of the manufacturer's specifications in this operating manual • mechanical damage, damage due to heat, moisture and liquids • Wear and tear...
  • Page 7 Table 1 - Technical data...
  • Page 8 Using the IoT Box, you can integrate weighing data from up to 16 EHP crane scales simultaneously into your PLC system. Thanks to predefined GSDML & UDT file, a connection can be established in a few minutes without much effort.
  • Page 9 ● IoT Box Figure 2- IoT Box The following accessories are included as standard: ● Connector for power connection - Neutrik Powercon NAC3FCA ● Connector for network connection - Neutrik Ethercon NE8MX ● Angle antenna...
  • Page 10 The IoT Box consists of the following components: 1. Main switch 2. Power supply unit 3. Central processing Unit 4. Communication processor 5. EHP NetScale 6. Power Supply connector 7. Digital Input connector 8. ProfiNet Port...
  • Page 11 Depending on the installation location of the IoT Box, different cable lengths are required. Therefore, only the connector for the power connection - Neutrik Powercon NAC3FCA - and the connector for the network connection - Neutrik Ethercon NE8MX - are included in the scope of delivery.
  • Page 12 This completes the commissioning on the hardware side. The IoT Box has a radio range of up to 500m in the open field. Obstacles between the scales and the IoT Box, such as walls, can impair the range accordingly. Therefore, if possible, select a location with a clear view of the connected scales.
  • Page 13 This facilitates the integration of the Netscale in order to be able to use commands such as "Register weight – 10 without any programming effort or to establish communication with an EHP large display if no permanent IT connection of the network interface is provided.
  • Page 14 The SD-Card can easily be exchanged by pushing on it. It’s located at the top of the NetScale.
  • Page 15 Using the predefined GSDML & UDT files, you can integrate the IoT Box into your PLC network in just a few steps. You can obtain the files from your EHP contact. The following describes the integration of the relevant information in the widely used TIA Portal (TIA Portal is not part of the IoT Box scope of delivery).
  • Page 16 Select "Add new external file" in the "Project navigation" under "External sources". Select the appropriate path and the file "EHP_IoT_Box.udt...
  • Page 17 Switch scale off and on measuring amplifier is too again to see if Error is low. detected again. The input voltage of the Contact your EHP measuring amplifier is too Service partner for high. further information. AD- Converter error Error radio modem...
  • Page 18 This section lists individual parameters that are recorded when the weight is registered like Timestamp, Net weight, tare weight etc. GewichtRegistrierenBeiStillstand WeightRegisteredAtStandstill WaagenNummer ScaleNumber ReserveByte2 ReserveByte2 Registernummer RegisterNumber Jahr Year Monat Month Stunde Hour Minute Minute Sekunde Second ReserveByte13 ReserveByte13 NettoGewicht NetWeight DimensionNetto0...
  • Page 19 This section lists individual parameters regarding the weight value like weight value or tare weight. MesswertAbfragen WeighingValueRequest StatusByte StatusByte FehlerCode ErrorCode Messwert Measured value DimensionMesswert0 DimensionMeasured value0 DimensionMesswert1 DimensionMeasured value1 Tarawert Tare value DimensionTaraWert0 DimensionTareValue0 DimensionTaraWert1 DimensionTareValue1 MesswertAbfragenEinmalig WeighingValueUniqueRequest StatusByte StatusByte FehlerCode ErrorCode...
  • Page 20 This section lists input parameters like setting zero, setting tare, setting time stamp, selecting scales or frequency. PhysikalischeEingänge PhysicalInputs Nullsetzen Zeroing TaraSetzen TareSet TaraLöschen TareClear FixtaraSetzen Set Fixtara WaageWählen ScaleSelect GewichtRegistrierenBeiStillstand WeightRegisterAtStop FirmwareVersion FirmwareVersion DatumUhrzeitSetzen DateTimeSet FrequenzkanalWählen FrequencyChannelSelect MesswertAbfragen Measured ValueQuery MesswertAbfragenEinmalig Measured valueQueryOnce ReserveBool3...
  • Page 21 UhrzeitSetzenJahr TimeSetYear UhrzeitSetzenMonat TimeSetMonth UhrzeitSetzenTag TimeSetDay UhrzeitSetzenStunde TimeSetHour UhrzeitSetzenMinute TimeSetMinute UhrzeitSetzenSekunde TimeSetSecond...
  • Page 22 Access to the user interface is gained through the inputs of the permanently defined IP address of the IoT Box in any browser.

  • Page 23: Weight Information

    The following information is displayed: 1. Scale information Scale Name, the actual weight and the scale status (stand still) are shown. With the cursor symbols at the left and right you can select other scales. 2. Weight information Tare weight , Gross weight & registered weight are shown 3.
  • Page 24 The EHP crane scale must have a release version LAH12.26 or LAH12.42 to operate with IoT- Box.As standard only scales are integrated which are purchased together with the IoT-Box. For the integration of existing scales please contact your EHP contact person.
  • Page 25 The Net-Scale protocol requires that the scale and channel numbers match. You can only receive data from a scale if both values of the scale are identical with the call-up commands of the Net-Scale. ► Press the TEST key of the crane scale, the most important setting parameters are now displayed one after the other.
  • Page 26 Activate the parameter using the tare key to call up the position to be changed. Use the Test key to enter a value between 01- 28 (corresponds to channel 01-28). Close the parameter with the zero key. Press the Test key repeatedly until P14 (scale number) appears in the display.
  • Page 27 First press the tare key and then operate with the zero key Sto (Store) flashes in the display. To exit the setting mode, press the On and Off keys simultaneously or briefly disconnect the scale's battery pack Table 5 - Change frequency & scale number...
  • Page 28 EHP scales that already have the corresponding radio equipment can be connected directly to the IoT box. If your EHP scales do not yet have radio equipment, this can be retrofitted at low cost. If your scales are equipped with the appropriate radio technology, they can be connected to the IoT box without any problems.
  • Page 29 __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ _____________________________________________________________________ _____________...
