Getting Started
Welcome to the STC1001 user guide! In order to get started, make sure you have the following hardware on hand:
STC1001- 2.5A Stepper Phidget
VINT Hub
Phidget cable
USB cable and computer
Power supply (8-30V DC)
4-wire, 6-wire, or 8-wire

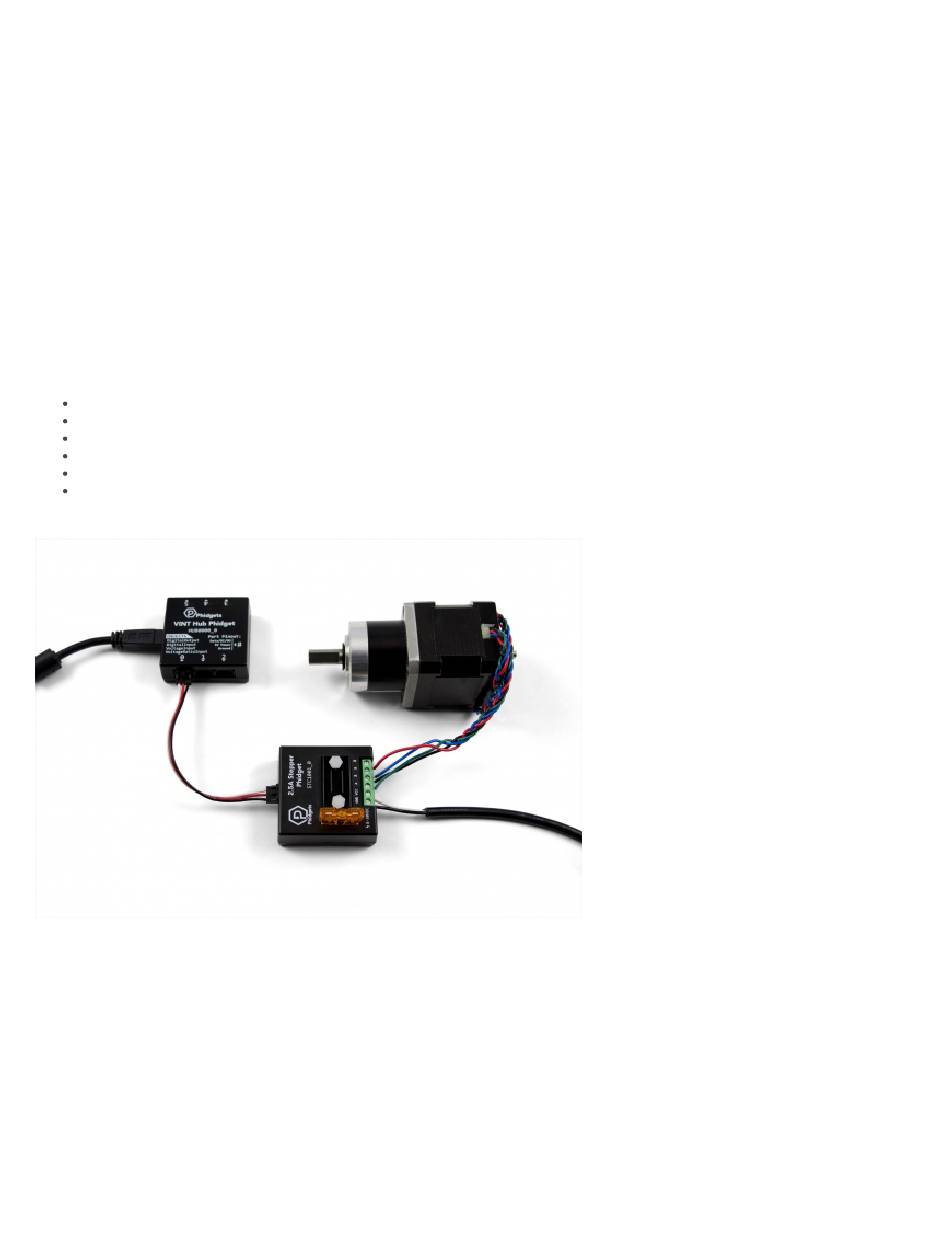

Next, you will need to connect the pieces:
1. Connect the STC1001 to the VINT Hub using the Phidget cable.
2. Connect the stepper motor to the Phidget's output terminals. See your motor's data sheet or product page for wiring
instructions.
3. Connect the VINT Hub to your computer with a USB cable.
4. Connect the power supply to the power terminals on the STC1001.
Now that you have everything together, let's start using the STC1001!
Using the STC1001
Phidget Control Panel
In order to demonstrate the functionality of the STC1001, the Phidget Control Panel running on a Windows machine will be used.
https://www.phidgets.com/?tier=3&catid=64&pcid=57&prodid=1014
2.5A Stepper Phidget - STC1001_0 at Phidgets
bipolar stepper motor
