- Page 1 Wind Top AE1900 All-In-One (AIO) PC MS-6638 (V1.X) System G52-66381X3...
-
Page 2: Copyright Notice
Copyright Notice T he material in this document is the intellec tual property of M ICRO-STAR INTERNATIONAL. W e take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice. -
Page 3: Upgrade And Warranty
Alternatively, please try the following help resources for further guidance. Visit the MSI website for FAQ, technical guide, BIOS updates, driver up- dates and other information: http://www.msi.com/index.php?func=service Contact our technical staff at: http://ocss.msi.com... -
Page 4: Safety Instructions
Safety Instructions Always read the safety instructions carefully. Keep this user’s manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. -
Page 5: Fcc-B Radio Frequency Interference Statement
FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residen- tial installation. -
Page 6: Weee (Waste Electrical And Electronic Equipment) Statement
WEEE (Waste Electrical and Electronic Equipment) Statement... - Page 8 viii...
-
Page 9: Table Of Contents
Copyright Notice...ii Trademarks...ii U.S. Patent Numbers...ii Revision History...ii Upgrade and Warranty...iii Technical Support...iii Safety Instructions...iv FCC-B Radio Frequency Interference Statement...v WEEE (Waste Electrical and Electronic Equipment) Statement...vi Chapter 1 System Overview...1-1 Packing Contents...1-2 System Overview...1-3 Mainboard Specifications...1-10 System Specifications...1-11 Hardware Setup...1-12 Chapter 2 Getting Started...2-1 System Booting Setup for the First Time...2-2 How to Create the System Recovery Disk...2-3... -
Page 11: Chapter 1 System Overview
Sy stem Overview Chapter 1 System Overview Congratulations for purchasing the Wind Top AE1900 AIO PC. This is your best choice for all in one PC. It can easily be set anywhere. The feature packed platform also gives you an exciting PC experience. -
Page 12: Packing Contents
M S-6638 System Packing Contents Wind Top AE1900 AIO PC LCD Display Wiper Keyboard (Optional) * The blank CD is for system recovery backup. * Please contact us immediately if any of the item is damaged or missing. * The picture is for your reference only and your packing contents may slightly vary depending on the model you purchased. -
Page 13: System Overview

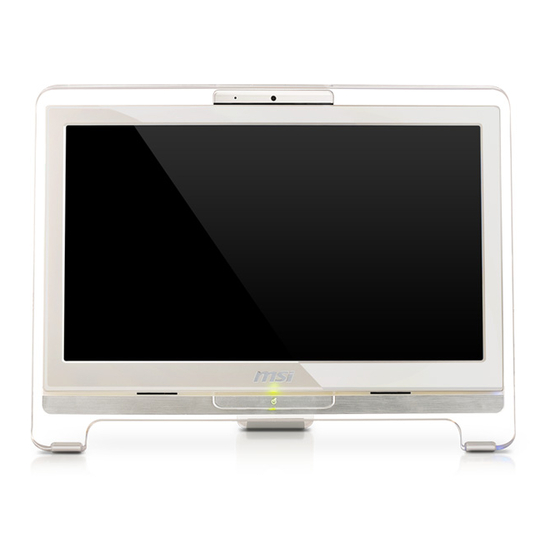

System Overview Front View Microphone - The built-in microphone can be used for video chatting online. Webcam - The built-in webcam with the microphone can be used for pic- ture taking, video recoding, online conferencing and any other interactive applications. LCD Display - The 18.5-inch TFT LCD display is with an optimal resolution of 1366 X 768 and standard proportion of 16:9 widescreen. -
Page 14: Stereo Speakers
M S-6638 System Stereo Speakers - The built-in stereo speakers deliver high quality sound blaster with stereo system and Hi-Fi function supported. Power Indicator - The power indicator illuminates in green when the AIO PC is on, illuminates in orange when the AIO PC is in sleep mode and turns off when the AIO PC is off. -
Page 15: Rear View
Rear View * We suggest that you should connect the power adapter to your AIO PC first and then connect the power cord to the socket-outlet for safety reason. Sy stem Overview... - Page 16 M S-6638 System Ventilator - The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. Optical Disk Drive - A DVD Super-Multi drive is integrated for your home entertainment. Card Reader Drive - The built-in card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC...
-
Page 17: Rj-45 Lan Jack
RJ-45 LAN Jack - The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. Activity Indicator Color LED State Left Yellow Off (steady state) On (brighter & pulsing) Right Green Orange... -
Page 18: Side View
M S-6638 System Side View Optical Disk Drive - A DVD Super-Multi drive is integrated for your home entertainment. Eject Button - Press the eject button to open the optical disk drive. Eject Hole - Insert a thin, straight object (such as a paper clip) into the eject hole to open the optical disk drive manually if the eject button does not work. -
Page 19: Power Button
Card Reader Drive - The built-in card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media Card) cards that usually used in de- vices like digital cameras, MP3 players, mobile phones and PDAs. -
Page 20: Mainboard Specifications
M S-6638 System Mainboard Specifications Proce ssor - Intel ® Atom Single/ Dual-Core processor 230/ 330 (Optional) - CPU Frequency 1.6 GHz - Front Side Bus (FSB) 533 MHz - Thermal Design Power (TDP) 4 W / 8 W Chipset - North Bridge: Intel - South Bridge: Intel M em ory... -
Page 21: System Specifications
System Specifications LCD Display - 18.5” TFT LCD display with an optimal resolution of 1366 X 768 and standard proportion of 16:9 widescreen Input/ Output (I/O) - 1 power jack - 4 USB ports - 1 RJ-45 LAN jack - 1 headphone jack - 1 microphone jack Power Supply - 65 watt power adapter with active PFC... -
Page 22: Hardware Setup
M S-6638 System Hardware Setup Positioning your AIO PC Step 1. Place your AIO PC on a flat and steady surface such as a table or desk. Step 2. Pull the stand open and tilt the LCD display to an angle of between 14 and 24 degrees to suit your preference. -
Page 23: Connecting Peripheral Devices
Connecting Peripheral Devices Step 1. Connect a USB-interfaced mouse and keyboard to the USB ports on the rear panel. Step 2. Connect a network device to the LAN port and connect necessary au- dio devices to the audio jacks. Step 3. Connect the power adapter to the power supply. NOTE: We suggest that you connect the power adapter to your AIO PC first and then connect the power cord to the socket-outlet for safety concerns. -
Page 25: Chapter 2 Getting Started
Getting Started Chapter 2 Getting Started Wind Top AE1900 AIO PC is integrated in design, se- lecting an elegant black or white with a glassy frame, which displays the simplicity of modern individualism and the comfort of home. Furthermore, it is accompa- nied with the best computer features, such as instant message, low acoustics, energy saving and 802.11 b/... -
Page 26: System Booting Setup For The First Time
M S-6638 System System Booting Setup for the First Time For the first-time use, you will need to go over the following steps to start using your Wind Top Series AIO PC. The entire booting setup will take you around 25 minutes. Step 1. - Page 27 Step 3. Click [OK] to ensure the AC power connection and do not turn it off while W indows setup is running. Step 4. W indows setup starts running. It takes around 20 minutes to finish the progress loading. Getting Started...
- Page 28 M S-6638 System Step 5. Enter the main page of “Welcome to M icrosoft Windows” and click [Next] to continue. Step 6. Choose the region, language and type of keyboard you need. Click [Next] to continue.
- Page 29 Getting Started Step 7. Select the time zone you are in and click [Next] to continue. Step 8. Select “Yes, I accept” for the End User License Agreement and click [Next] to continue.
- Page 30 M S-6638 System Step 9. Select “Help protect my PC by turning on Automatic Updates now” and click [Next] to continue. Step 10. Enter the computer name and computer descriptions you want. Click [Next] to continue.
- Page 31 Step 11. Assume and Internet connection cannot be chosen yet. Click [Skip] to continue. Then, select “No, not at this time.” to register with Microsoft later and click [Next] to continue. Step 12. Enter the computer user name and click [Next] to continue. Getting Started ®...
- Page 32 Step 13. Click [Finish] and then the main page of W indows comes out. Step 14. Touch screen will automatically be activated and post the default home page of MSI W ind Touch. Wind Top Series AIO PC will be ready for use from here.
-
Page 33: How To Create The System Recovery Disk
Step 1. Select the icon of “M SI BurnRecovery” on the desktop screen and click through it. Step 2. Click [Next] to start the image creation of the recovery disk. - Page 34 M S-6638 System Step 3. Select “Create and burn a recovery disk” and click [Next] to continue. Step 4. The progress bar starts running to create the image of recovery disk. It takes around 2-3 minutes to finish the porcessing. 2-10...
- Page 35 Step 5. Insert a blank DVD-R disk (free bundle with the standard package) and click [Next] to continue. Step 6. The user interface of Ulead Burn. Now pops out. Click [Copy] to start the burning progress. It takes around 9 minutes to finish the processing. Getting Started 2-11...
- Page 36 M S-6638 System Step 7. The message of “Operation successfully completed” pops out. Click [OK] and take out the disk to finish the recovery disk creation. 2-12...
-
Page 37: Touch Panel Calibration
Touch Panel Calibration Wind Top Series AIO PC has touch panel function. If the mouse cursor can not match the move, users could use the IdeaCom TSC tool installed in system to adjust the accuracy of the touch panel. Please go over the following steps to get it done. Step 1. - Page 38 M S-6638 System Step 3. Please follow the instruction on the screen to press each symbol: Please Touch the Blinking Symbol until Beep or Stop Blinking (ESC to Abort). Important 1. Do not touch the screen directly with any sharp-pointed object. 2.
-
Page 39: How To Use The Keyboard
How to Use the Keyboard Wind Top Series AIO PC packs with a wired keyboard that helps your control of the system. Specifications - W eight: 824 g; Cable: 150 cm - USB interface for all W indows - Low profile with silk printing technology - Built-in 103 keys + 6 multimedia keys + 4 hotkeys - Dimension: 400 mm (H) X 165 mm (W ) X 31 mm (D) Features... -
Page 40: Multimedia Keys
M S-6638 System Multimedia Keys Volume + Volume - Play/ Pause Stop Forward Backward Hotkeys WWW Home Launch default web browser and goes to the home E-Mail Fn + F5 Fn + F6 * The illustration of keyboard is for reference only. Actual product specifications may vary with territories. -
Page 41: Connecting To A Wireless Lan
Connecting to a Wireless LAN Step 1. Right-click the Ralink Wireless LAN Card status icon in the lower right corner, and then click Launch Config Utility. Step 2. The window displays some available wireless networks. Choose a network, and then click Connect. Getting Started 2-17... - Page 42 M S-6638 System Step 3. There may prompts you to enter a key. Type the network key and then click Step 4. Now, you're ready to browse the W eb wirelessly. 2-18...
