Summary of Contents for Orava TL-300

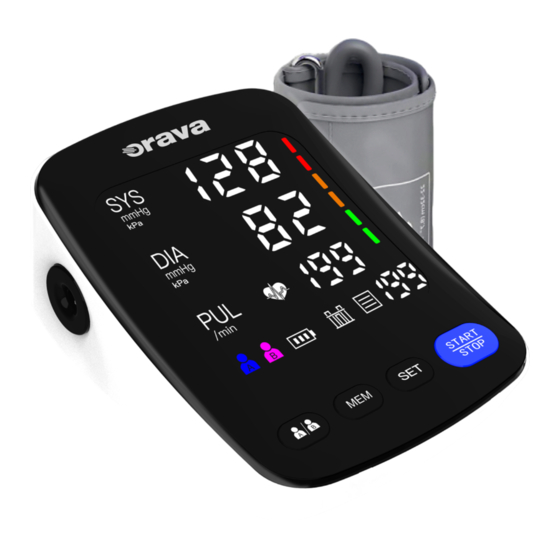

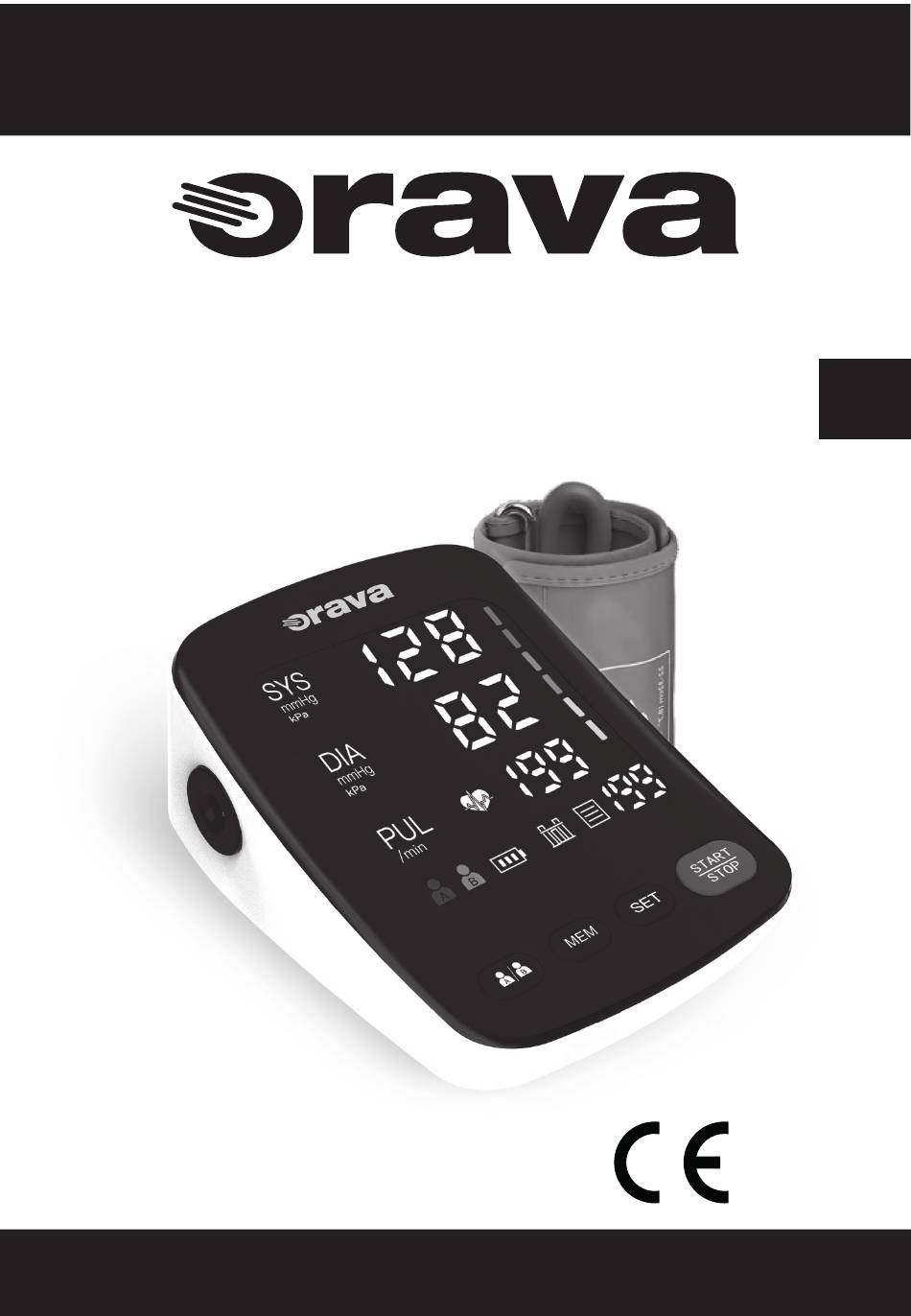

- Page 1 AUTOMATIC ARM DIGITAL BLOOD PRESSURE METER TL-300 (U82RH) Instruction manual 0123 06.05.2022 rev.1.0 TL-300 (U82RH)
-
Page 2: Intended Use Of The Device
It is designed primarily for general home use. ORAVA electrical appliances are manufactured in accordance with the state of the art and recognized safety regulations. Nevertheless, incorrect and unprofessional use or use contrary to the intended purpose may create a risk of injury or endanger the life of the user or a third party, resp. - Page 3 • Talk to your doctor before using this device on an arteriovenous bridge (A-V). • Do not use this device with other ME devices at the same time. • Do not use this device in an RF surgical environment, MRI, CT scanner, or high oxygen environment. •...
- Page 4 • Do not use a mobile phone or other devices that generate electromagnetic fields near this device. This could cause the unit to malfunction. • Do not disassemble the monitor or cuff. • Do not use in humid environments or places where the device may splash water.
- Page 5 • Wipe dust off the plug. • Disconnect the plug when the device will not be used for a long time. Disconnect the plug before starting maintenance. • Use only the specified AC adapter of the specified type for this unit. Using other adapters may damage the device and may be dangerous.
- Page 6 WHAT TO DO DURING HIGH BLOOD PRESSURE? • Change your way of life, create your own ladder of values so that health comes first. • Reduce mental stress - reduce too many activities, do not perform more than one at a time, avoid time constraints, always have sufficient time reserve when meeting deadlines.
- Page 7 INTRODUCTION Thank you for the trust you have shown in the purchase of the TL-300 (U82RH) automatic electronic blood pressure monitor. Please read this instruction manual carefully before using it. The operation of the device is based on the oscillometric principle with the so-called „Fuzzy arithmetic“...
-
Page 8: Using The Pressure Gauge
WARNING Please read this manual carefully before operating the equipment. Keep this manual for future reference. Contact your doctor for more information about your blood pressure. This manual and the product do not replace medical care and advice. This manual and the product cannot be used treatments and consider them as a form of medical assistance. -
Page 9: Blood Pressure Information
BLOOD PRESSURE INFORMATION Blood pressure The heart works like a pump, and it pumps blood that flows through the arteries all the time. The result is blood pressure on the walls of the arteries. When blood flows out of the heart, we talk about systolic blood pressure, and when blood returns to the heart, we talk about diastolic blood pressure. - Page 10 Knowledge of blood pressure There are a number of factors, such as body conditions or measurement problems, that can affect blood pressure. For example, some people may be nervous when they see a doctor, which causes their blood pressure to rise. This case is well known as „white coat hypertension“.
- Page 11 Hypertension: Hypertension can be caused by various cardiovascular diseases, kidney diseases and endocrinopathies. Long-term hypertension can lead to pathological changes in the heart, brain and kidneys. These changes can lead to hypertensive complications known as „hidden killers.“ Complaint: Hypertension is one of the diseases of civilization and its pathology is still unclear.
-
Page 12: Why Measure Your Blood Pressure
Why measure your blood pressure? We recommend home blood pressure measurement as a preventive measure and as a standard supplement to the treatment of hypertension at your doctor. The advantage of measuring your blood pressure at home is that you can monitor your blood pressure regularly at a given time and in normal everyday conditions. - Page 13 suspected. It wants to prevent unnecessary administration of drugs to someone who does not really need them. If you intend to measure the pressure at home yourself, you should avoid the classic mercury device. The content of toxic mercury, as well as the complexity of the measurement, should be a sufficient argument why to withdraw from its purchase.
- Page 14 IMPORTANT INFORMATION BEFORE USING THE DEVICE • Consult your doctor about pressure measurement. • Blood pressure is changing! It is affected by a number of different factors such as smoking, alcohol consumption, medication and physical activity. Do not eat, smoke or exercise for at least 30 minutes before starting the blood pressure measurement.
-
Page 15: Description Of The Device
DESCRIPTION OF THE DEVICE 1 Cuff hose connection (User select) button 3 MEM (Memory) button 4 SET button 5 START/STOP button (On/Off/Start/Stop measurement) 6 USB-C connector for connecting the AC adapter (5 V, not supplied) 7 Shoulder cuff with hose and connection... -
Page 16: Popis Displeja
POPIS DISPLEJA 1 Scale for systolic pressure 2 Scale for diastolic pressure 3 PUL indicator (pulse) 4 User indicator 5 Battery status indicator 6 Arrhythmia indicator 7 Pressure classification scale 8 Pulse value indicator 9 Serial number of the measurement memory 10 Memory symbol 11 Indicator 3 measurements... -
Page 17: Inserting/Replacing Batteries
INSERTING/REPLACING BATTERIES 1. Slide the battery cover in the direction of the arrow. 2. Insert or replace 4x 1.5 V alkaline batteries (size „AAA“). Observe the correct + and - polarities on the batteries marked inside the battery compartment. 3. Slide the battery cover back into place. Notes: •... -
Page 18: Instrument Setup
INSTRUMENT SETUP User selection 1 With the pressure gauge off, press / . appears on the display. 2 Press / to switch between 3 Select a user and press START/STOP. Setting units of measure 1 With the pressure gauge on, press the SET button. The display shows 0 or 0.0. - Page 19 ATTACHING THE SHOULDER CUFF 1 Take off tight clothing from the left shoulder or loosen the tight rolled-up sleeve. Do not put the cuff on the rough one clothing. 2 Insert the air plug properly to the air connector. 3 Hold your left hand with your palm facing you up.
- Page 20 POSITION FOR CORRECT MEASUREMENT The correct position is very important for the measurement. When you decide to measure your pressure, sit comfortably in a room with a pleasant room temperature and relax. Do not bathe, drink alcoholic or caffeinated beverages, eat, smoke or exercise during the 30 minutes before the measurement.
- Page 21 MEASUREMENT AND READING OF RESULTS Read and follow the instructions in the Important Information section before using the device and in the Attaching the Arm Cuff section. Do not talk or move during the measurement. The pressure gauge is designed for measuring and storing measured data in memory for 2 people defined as A and B.
- Page 22 2 Press START/STOP. The pressure gauge starts working and a function check is performed. All functions will be shown on the display for about 3 seconds. Then the symbols on the display disappear and the pressure measurement symbol flashes and the cuff is pressurized. If the measured pressure is higher, the cuff is pressurized to a higher pressure.
-
Page 23: Storage Of Measurement Results
STORAGE OF MEASUREMENT RESULTS The results of each measurement (systolic and diastolic pressure values, pulse) are automatically stored in the device‘s memory. The device can store the results of up to the last 199 measurements for both user A and B. When saving the 200th measurement, the results from the oldest (1st) measurement will be deleted. - Page 24 TROUBLESHOOTING AND SYMBOLS DISPLAYED Indicator/ Cause Solution Problem Weak Batteries Replace the batteries. The indicator Cardiac arrhythmia flashes after during measurement. Try the pulse is the measurement again. measured. The shoulder Put on the shoulder cuff Abnormal cuff is too loose. properly.
- Page 25 Indicator/ Cause Solution Problem No pressure Fit the cuff correctly was measured. and repeat the Sudden pressure measurement. change. Remove the source of Radiation interference (mobile interference. phone), do not talk and repeat the measurement. Fit the sleeve correctly, Inflation error. connect the hose correctly and repeat the measurement.
-
Page 26: Maintenance
MAINTENANCE Notifications • Do not disassemble the device. • Protect the device from strong impacts. • Protect the device from high temperatures and sunlight. • Do not immerse the device or the cuff in water. • If the device is stored below freezing, do not use it immediately. -
Page 27: Technical Specifications
TECHNICAL SPECIFICATIONS Measuring area: Shoulder Measuring method: Oscillometric method with so- called „Fuzzy“ measurement Display: Digital LED display Measuring range: Pressure: 0 to 299 mmHg Pulse: 40 to 199 pulses/minute Accuracy: Pressure: ± 3 mmHg Pulse: ± 5% Measured value memory: 199 measurements for 2 people Cuff pressure: Automatic... - Page 28 This device complies with the requirements 0123 of European Directive 93/42/EEC. The date of manufacture is indicated on the type plate of the device. Manufacturer: Shenzhen Urion Technology Co., Ltd. Floor 4-6th of Building D,Jiale Science & Technology Industrial Zone, No.3,ChuangWei Road, Heshuikou Community, MaTian Street,GuangMing New District, 518106 ShenZhen,China Authorized Representative for the EU:...
- Page 29 Importer: ORAVA retail 1, a.s. ORAVA distribution CZ, s.r.o. Seberíniho 2 Ostravská 494 821 03 Bratislava 739 25 Sviadnov Slovenská republika Česká republika INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING Dispose of used packaging material at a municipal waste disposal site.
