Summary of Contents for RFXCOM RFXtrxWifi

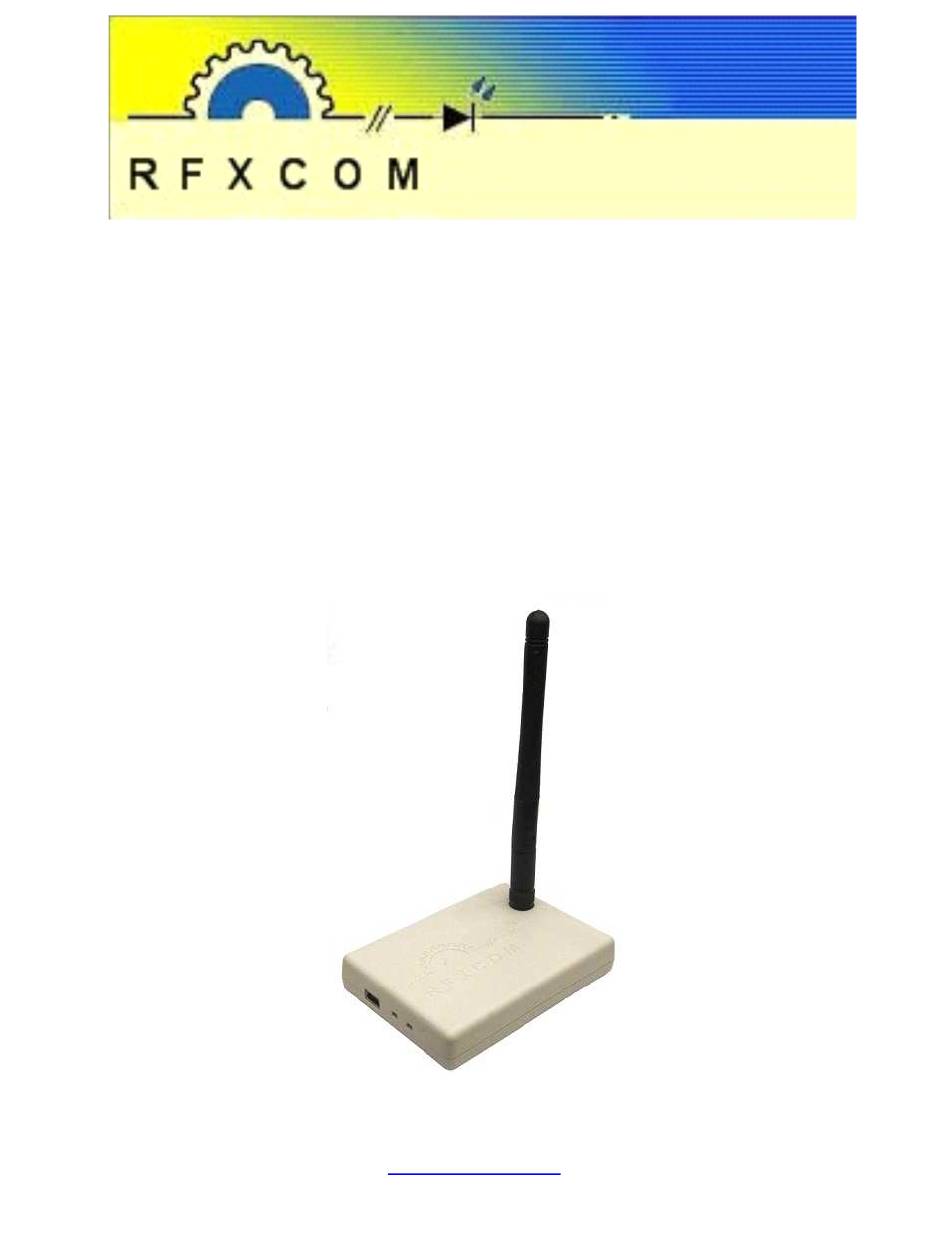

- Page 1 RFXtrxWifi / RFXtrxUSB User Guide www.rfxcom.com RFXtrxWifi/USB User Guide Rev. 0.2 page 1 / 10 Copyright, RFXCOM 2022...
-
Page 2: Table Of Contents
Configure the transceiver ......................... 6 Update the RFXtrx transceiver firmware ..................7 Flash the ESP32 firmware........................ 9 Warning: ............................ 10 License ............................10 Copyright notice ......................... 10 Revision History ......................... 10 RFXtrxWifi/USB User Guide Rev. 0.2 page 2 / 10 Copyright, RFXCOM 2022... -
Page 3: Introduction
TCP/IP access is using port 10001 Important: The USB connection of the RFXtrxWifi is only used to flash the ESP32. A 500mA USB connection can be used to power the RFXtrxWifi or a 5V DC 1A power supply can be used. -
Page 4: Install The Transceiver
The RFXtrxWifi and RFXtrxUSB can be equipped with the RFX69 transceiver module. This RFX module must be inserted in the RFXtrxWifi / RFXtrxUSB PCB if the RFM module has a Push-To-Fit (PTF) connector. Push the module in the connector holes on the component side. The RFM69 module has on one side 8 pins and 7 pins on the other side to avoid wrong installation. -
Page 5: Configure The Rfxtrxwifi
5. Configure the RFXtrxWifi. Connect the RFXtrxWifi to an USB or external 5V 1A power supply. Open the Wifi network settings on your PC or mobile and connect the access point RFXCOM WiFi Manager and use password: 12345678 Open a browser and open 192.168.4.1 and enter your Wifi credentials, SSID and password of your Wifi network. -
Page 6: Restore Wifi Settings
6. Restore Wifi settings To reset the Wifi settings press the RESTORE button inside the RFXtrxWifi and configure the RFXtrxWifi as described above. 7. Configure the transceiver The transceiver can be tested and configured with the RFXmngr program. For the RFXtrxWifi set the IP address of the RFXtrxWifi.and port 10001. -
Page 7: Update The Rfxtrx Transceiver Firmware
Stop all connections with the transceiver and be sure that no other program connects the transceiver during flash of the transceiver! Start the RFXflash program. For the RFXtrxWifi, select the IP address and select port 10001. For the RFXtrxUSB select the COM port Click the connect button: Click the Open HEX file and select the correct firmware file. - Page 8 Click the Write device button. The firmware will be flashed in about one minute: At the end of the flash proceure click the Normal Execution Mode button: Test the RFXtrxWifi or RFXtrxUSB with RFXmngr. RFXtrxWifi/USB User Guide Rev. 0.2 page 8 / 10...
-
Page 9: Flash The Esp32 Firmware
Copy the RFXtrxWiFiTelnetToSerial directory to your Arduino sketch directory RFXtrxWiFiTelnetToSerial directory contains: HTML.h RFXtrxWiFiTelnetToSerial.ino WifiFunc.h • Click the Upload button and the firmware will be compiled and flashed in the RFXtrxWifi ESP32 RFXtrxWifi/USB User Guide Rev. 0.2 page 9 / 10 Copyright, RFXCOM 2022... -
Page 10: Warning
RFXCOM software or RFXtrx protocols or Written Materials unless expressly authorized in writing by RFXCOM. • You may not use any RFXCOM device, software or protocol as part of an exclusive or patented product without the express prior written permission of RFXCOM. •...
