Summary of Contents for Krautli EYESYSTEM RVA 318HD
- Page 1 Operating Instructions HD Image Processor-multiplexer Please read all instructions before using the product and keep the manual for future reference. The product may differ from the manual description according to the upgraded S/W version or performance, and it may be altered without notice. V1.0...
-
Page 2: Table Of Contents
Contents 1. Precautions .................... 1 2. Features and Specifications ..............3 3. Accessories .................... 4 4. Parts Identification ..................5 5. Connections ................... 6 6. Menu Operation &Functional Specification ........... 7 6.1 IR Remote Control ................7 6.2 Menu Operation ................7 6.2.1 Desktop .................. -
Page 3: Precautions
1. Precautions ● Storage and Keeping (1) Do not expose this device to excessive heat or cold. The storage temperature of this device is -30~+80℃, and the operating temperature is -20~+70℃. (2) Avoid dropping or striking this device. (3) Avoid using this device in enclosed spaces, areas with excessive vibration or subject to severe impacts. - Page 4 ● Maintenance (1) Remove all the cable connections from this device before cleaning. (2) Use a mild household detergent and clean the unit with a slightly damp, soft cloth. (3) Never use strong solvents such as thinner or benzine, as they might damage the finish of the device. Caution Risk of electric shock Do not open...
-
Page 5: Features And Specifications
2. Features and Specifications (1) Support four HD camera inputs and split-view display mode. (2) Multiple video formats available: 1080P30/1080P25/720P30/720P25/PAL/NTSC. (3) Support two video outputs, one is CVBS output and the other is AHD output. (4) Single, dual, triplex, quad, trefoil, Y-split and PIP view display modes available. (5) Each channel supports independent image adjustment for horizontal-mirror, vertical-mirror view display. -
Page 6: Accessories
3. Accessories Power cable Camera input cable Video output & Trigger cable IR Remote control Video magnification line IR extension cable Special Notice Accessories may be different for corresponding application. -
Page 7: Parts Identification

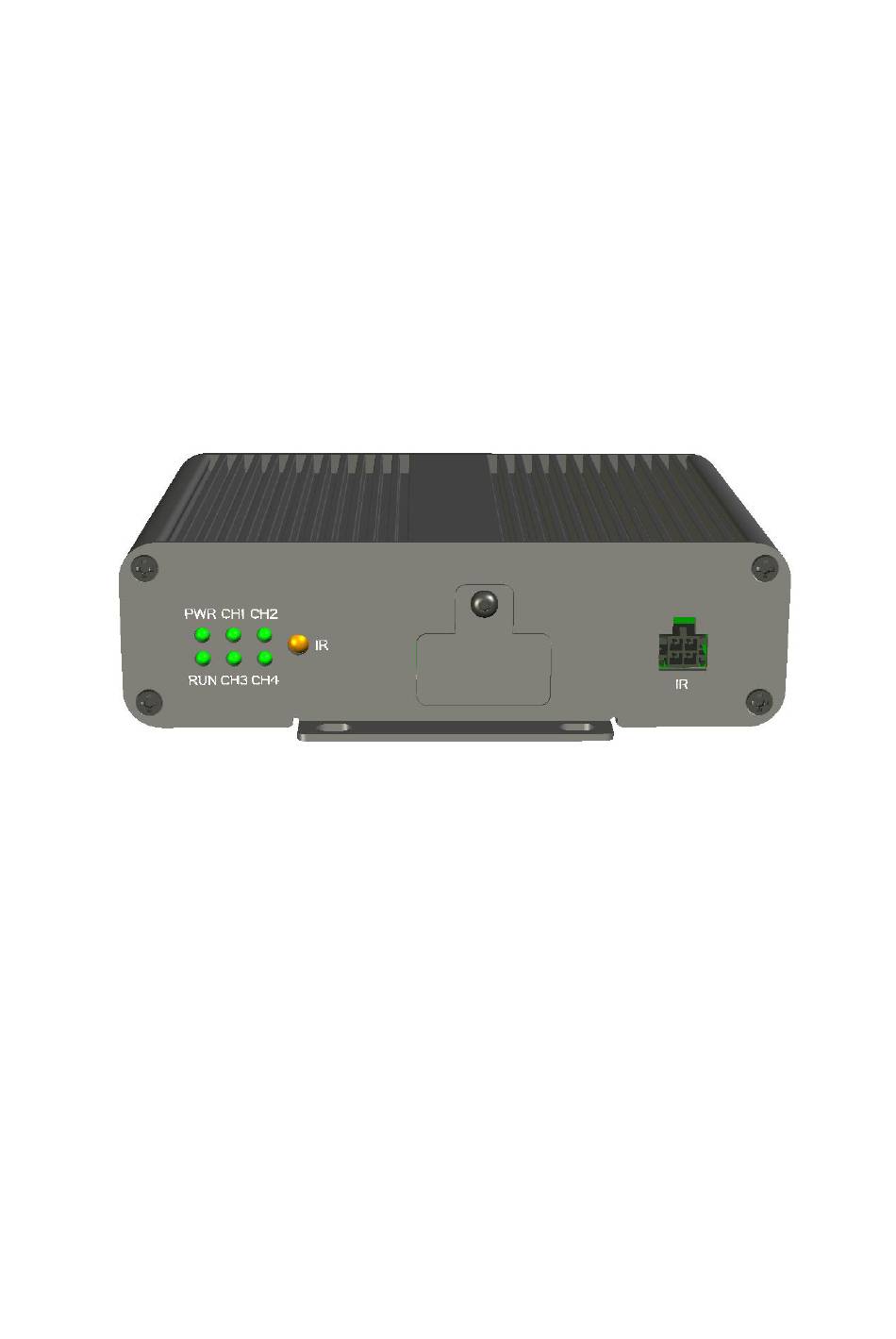

4. Parts Identification Indicator: IR Extension Cable IR Remote Control PWR: Power Status Connector Receiver CHx: Camera Input Status RUN: Error Status DC Power Input Camera Input Debug Video Output & Connector Connector Trigger Connector... -
Page 8: Connections
5. Connections Connect the Power cable to the DC Power Input connector. Connect the Camera input cable to the Camera input connector. Connect the Video output & Trigger cable to the Video output & Trigger connector. Power cable: (1) Connect red wire to power wire of DC: 10-32V. (2) Connect yellow wire to power wire of DC: 10-32V. -
Page 9: Menu Operation &Functional Specification
6. Menu Operation & Functional Specification 6.1 IR Remote Control Mute or unmute Exit to the main menu or return to the previous menu Move up the menu cursor Move right the menu cursor or Move left the menu cursor or increase volume decrease volume Confirmation button... - Page 10 ● Switch the channel without special mode such as auto scan and trigger function turned on. Move the red box in the magnified mode. Move the displayed place of the magnified image. ● Switch the channel without special mode such as auto scan and trigger function. Move the red box in the magnified mode.
-
Page 11: Desktop
6.2 Menu Operation 6.2.1 Desktop IR Instructions: ● VOL or VOL : Increase/ reduce the volume. ● MENU: Press for 3s to enable/disable the menu lock; short press to get access to home menu. ● UP / DOWN: Switch display mode. When special mode like auto scan or trigger function is off, pressing UP key can switch display mode in following order: H-SPLIT->Y-SPLIT->TREFOIL->TRIPLE->DUAL->CAM4->CAM3->CAM2->CAM1->PIP3->... -
Page 12: Volume
Pic.6.2.2 6.2.3 Volume Menu IR Instructions: ● VOL or VOL : Decrease or increase volume. ● MUTE: Mute or unmute the multiplexer. ● MENU: Return to the previous menu. Pic.6.2.3 6.2.4 Mode Menu... - Page 13 IR Instructions: ● VOL / VOL / UP / DOWN: Move the cursor. ● SEL: Select the preview mode. If icon is selected, it will enter Split Setup menu when in split-view display mode. ● MENU: Return to the previous menu. Pic.6.2.4 6.2.4.1 Split Setup Menu IR Instructions:...
-
Page 14: Setting
Pic.6.2.4.2 Features instructions: ● Source: The camera channel being displayed of the layer. ● Enable: If the layer is displayed. The following features are only available when in PIP1/2/3 view display mode: ● Width Scale Ratio: The horizontal down scale ratio of the layer. ●... -
Page 15: Camera
Pic.6.2.5 6.2.5.1 Camera IR Instructions: ● VOL/ VOL : Move the cursor to switch camera input or increase / decrease volume. ● SEL: Select camera input. ● UP / DOWN: Switch and move the cursor. ● MENU: Return to the previous menu. Pic.6.2.5.1 Features Instructions: ●... -
Page 16: Parking Line
● Contrast: Contrast of the image. ● Color: Saturation of the image. ● Sharpness: Sharpness of the image. 6.2.5.1.1 Keyboard (show up when editing channel name) IR Instructions: ● VOL / VOL / UP / DOWN: Move the cursor. ● SEL: Click the chosen icon. ●... -
Page 17: Language
Pic.6.2.5.2 6.2.5.2.1 Calibration IR Instructions: ● VOL / VOL / UP / DOWN: Move the parking line. ● MODE: Magnify the parking line. ● LANG: Shrink the parking line. ● P/N: Switch the parking line focuses. ● RESET: Return to the default configuration. ●... -
Page 18: Trigger
Pic.6.2.5.3 6.2.5.4 Trigger IR Instructions: ● VOL / VOL / UP / DOWN: Move the cursor. ● SEL: Pop up the edit menu. ● MENU: Return to the previous menu. Pic.6.2.5.4 Feature Instructions: ● Delay: Image display will last for a few seconds (0-60s) after trigger signal disappears. ●... - Page 19 ● Trigger function can interrupt auto scan function. ● When the trigger signal is received, the multiplexer will switch into the trigger display image automatically and resume the previous state before the trigger occurs after delay time. 6.2.5.4.1 Delay IR Instructions: ●...
-
Page 20: Auto Scan
Pic.6.2.5.4.3 6.2.5.5 Auto Scan IR Instructions: ● VOL / VOL / UP / DOWN: Move the cursor. ● SEL: Pop up the edit menu or change the state of ON/OFF icon. ● MENU: Return to the previous menu. Pic.6.2.5.5 Feature Instructions: ●... -
Page 21: Power On
cycle. User can also validate parameters immediately by turning off and on again the auto scan function. Auto scan can be interrupted by trigger function. 6.2.5.6 Power On IR Instructions: ● VOL / VOL / UP / DOWN: Move the cursor and highlight the selected icon. ●... - Page 22 Pic.6.2.5.7-1 When automatic is on, multiplexer will automatically fit for input cameras. If automatic is off, the multiplexer will configure with user inputted settings. User is able to set input formats of corresponding cameras via icon for each channel or turn on automatic to enter automatic configuration.
-
Page 23: System
Pic.6.2.5.7.1 6.2.5.8 System IR Instructions: ● VOL / VOL / UP / DOWN: Move the cursor. ● SEL: Select the chosen icon. ● MENU: Return to the previous menu. Pic.6.2.5.8 Feature Instructions: ● Menu Lock: Degree of menu lock. There are 3 levels of menu lock: (1) LEVEL1: All buttons fail to response.
