Summary of Contents for ADL arsos plus
- Page 1 User Manual arsos plus with dexos light ® ® Art. Nr. 111 550-DL-wds Anti-Decubitus-Systems Assembly and Operation instructions Health. Security. Independence.
-
Page 2: Table Of Contents
Table of contents 1 Foreword Page 3 2 Safety instructions Page 4 3 Product overview arsos® plus + dexos® light wds Page 4 4 Introduction Page 5 5 Explanation of indication and functions Page 5 6 Installation and setting up the mattress Page 6 7 Setting up Page 7... -
Page 3: Foreword
On the one hand, it is a soft foam mattress with reinforced edges. On the other hand, arsos plus is a static air filled mattress with a 21 cm safety soft foam mattress, which prevents the patient from sinking to the bed base level in case of system failure. -
Page 4: Safety Instructions

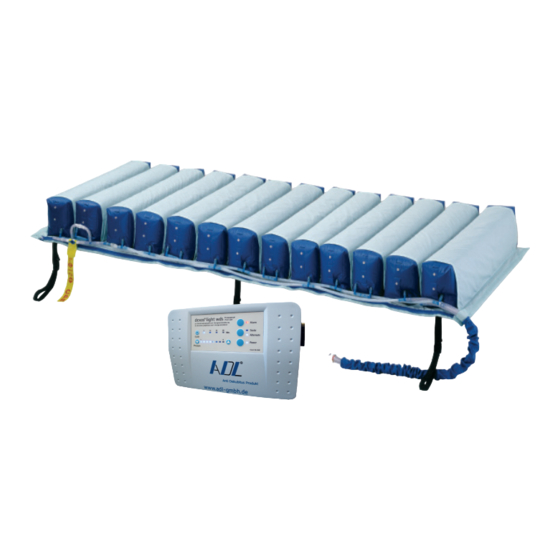

2 Safety instructions The system may not be used in presence of open flames, heaters et cetera. Protect the equipment against humidity. Operate it only in dry areas. No combustible gases or liquids may enter into the system. EXPLOSION DANGER! Warning! Note! The compressor is energized as soon as the power supply plug is put in. - Page 5 3 Product overview Quantity Description Item number arsos® plus mattress 111 550-DL-wds dexos ® light wds, 111 203-DL-wds, Power unit incl. bed mount 64000000-FO arsos® plus bi-elastic washable PU-cover 111 552 Service manual 999 190 User manual arsos® plus + dexos® light wds 112 022-FO User manual air foam Hybridsystem arsos ®...
-
Page 6: Introduction
The ‘bottoming out’ 21 cm of the patient onto the bed base is prevented by the foam core of the arsos plus- module. DIN EN 1970:2000 This also helps to ensure compliance and conformity to because even with full air pressure in the cells, the safety function of the bed rails remain unchanged. -
Page 7: Installation And Setting Up The Mattress
6 Installation and setting up the mattress Remove the existing nursing mattress. Put the arsos® light mattress on the bed base frame and fasten it with the fixation straps to the bed (to the “up and down” moving parts of the bed). If not properly attached to the bed this can result in damage to the bed and mattress. -
Page 8: Setting Up
7 Setting up Plug in the power cord und turn on the unit. The unit is preinstalled. When the display lights are lit, the unit is operational. The power unit is pre-adjusted, so without the need of selecting a certain level, the pressure in the system builds up to between the minimum and maximum pressure levels. - Page 9 The optimum pressure can be set by pressing the pressure control button . The scale is divided into eight setting options. If one diode is lit, the mattress has the lowest possible pressure; if all eight diodes light up, the mattress has reached the largest possible pressure (view table below on page 9).
-
Page 10: Cpr-Function
„Hammock effect“ (is to avoid) High extended pressure in the sacral area cell group A cell group B cell group C Optimum surface (Supporting material under the knee-point and lordosis of neck and lumbar) cell group A cell group B cell group C 8 CPR-Function Please make sure that the CPR flap (Cardiopulmonary Resuscitation) is always closed. -
Page 11: Settings
9 Settings The system can be switched to static mode by pressing button which is the middle blue button on the right edge of the control panel. The display changes to the green diode (static). “Static“ means that all cells of the pad are being filled with air and increase to the set pressure value. - Page 12 Furthermore, the cycle time can be changed on the power unit. The adjustable range is between a minimum of 5 and a maximum of 20 minutes. By pressing button , cycle time can be changed from the default value of 5 minutes in equal steps of 5 minutes to a maximum of 20 minutes.
-
Page 13: Auxiliary Functions
10 Auxiliary functions (only possible with appropriate equipment) 1. Key lock The keyboard has a key lock that is activated after about 5 minutes. This is to prevent unintentional changes to the set values. The key lock is released by simultaneous pressing the following buttons (alarm button &... - Page 14 6. Care function When taking care of a patient, you have the option to activate this function by pressing the static button for about 3 seconds. The alternating pressure system switches now to the patient care function, which is indicated by the flashing of the active cycle display and the green display for static.
-
Page 15: Cleaning Instructions · Service
A soap detergent or a mild, non-aldehyde cleaning detergent can be used. • Wipe disinfection is also feasible when the spectra of action and process time are properly kept. ADL® GmbH • recommends safety related revisions of all electric powered parts after at DIN EN 62353. -
Page 16: Troubleshooting
12 Troubleshooting Modul Problem Cause Solution arsos ® plus Mattress does not The connector is not Check tubing connectors inflate or inflates insuf- accurately locked, tubes are and locks. ficiently. twisted or kinked. Check cells, tubing con- Defect cell, tubing defect, The patient sinks too nectors, and check pressure pressure not correctly set. -
Page 17: Indications · Contraindications
13 Indications · Contraindications Function Indicationen Contraindication Static Decubitus prevention and therapy Instable fractures, loss of support up to high risk (stage 4), sensitivity. Patient’s body weight pressure soft patients with uncontrolled muscular < 150 kg and < 250 kg. bedding hypertonia stimulated by alternating pressure, pain-patients (osteoporosis,... -
Page 18: Technical Data
14 Technical data Mattress arsos ® plus dexos ® light wds Cover Item No. 111 550 111 203-DL-WDS 111 502 Material Polyurethan PU/PA 200 x 90 x 21 Dimensions 23 x 15 x 8,5 200 x 90 x 21 (cm) (ventilated) Weight in kg ~ 11... -
Page 19: Disposal
16 Declaration of Conformity Our declaration of conformity can be found under the QR-code below or in the download area under www.adl-gmbh.de User manual air foam Hybridsystem arsos ® plus + dexos ®... - Page 20 In case of technical problems please contact your appointed dealer or directly to ADL® GmbH. (Stamp) Anti Dekubitus Lagerungssysteme GmbH ® Im Flürchen 1 99334 Amt Wachsenburg Germany Phone: + 49 36202 7519-0 Fax: + 49 36202 7519-12 E-Mail: info@adl-gmbh.de Internet: www.adl-gmbh.de...
