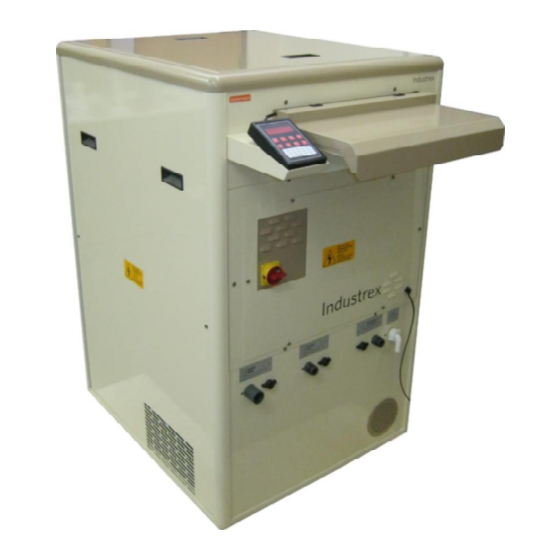

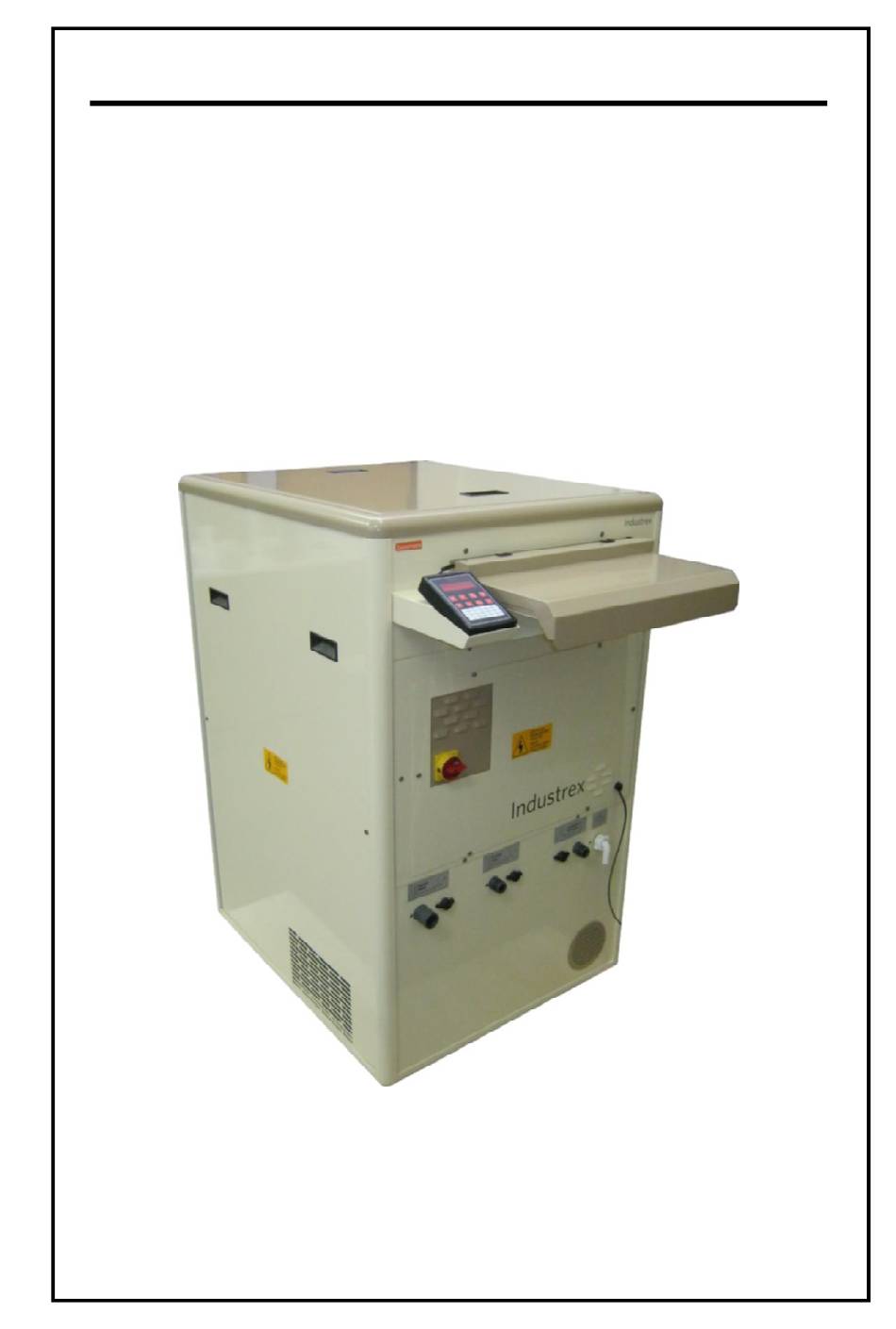

- Page 1 PRE-INSTALLATION MANUAL Industrex M43ic NDT FILM PROCESSOR NDT Film Processors type: produced by Colenta 01/2013 TK To be used to process all standard NDT Films. document no.: X1-25_4.pdf page 1 / 9...
- Page 2 Industrex M43ic NDT - Filmprocessor The processor is designed in such a way that only a cold water supply, drain and power connection are necessary. The plumbing is carried out according to DIN 1986/1988 and must comply with local plumbing codes.The cold water supply must have a shut-off valve / tap system connected with a ¾“...
-
Page 3: Environment Requirements
Environment Requirements Room Temperature: 15 - 30°C (59 - 86°F) Relative Humidity: 40 - 76% RH (noncondensing over operating temperature range) Altitude: Maximum altitude 2424 m (8000 ft) above sea level. Ambient Light: Room lighting should not exceed 450 lux (150 ft-candles) at the PROCESSOR. - Page 4 Water Supply, Drain connection and Replenishment: Drain 3/4" Watersupply Exhaust- port OPTIONAL (see more on page 6) 2x30L Replenishment containers are supplied with the processor. document no.: X1-25_4.pdf page 4 / 9...
- Page 5 Water supply-kit assy: Order No.:90 60 008 Water IN to the Processor for cleaning Pos. No. Part No. Beschreibung Description Quantity 90 45 000 Schlauchholländer 3/4" Hose connector - 3/4in 90 45 001 Kugelhahn 3/4" In Line Tap 90 45 002 Doppelnippel 3/4"...
- Page 6 As mentioned earlier, to protect the processor as well as any equipment that may be directly interfaced to or with the processor, the processor must be connected to an external exhaust system. (failure to correctly ventilate the processor and dryer exhaust will result in corrosion within the processor and interfaced equipment - in addition, the probability of processor-related film artifacts is increased).
- Page 7 recommended Installation: "Free-standing" Stop cock document no.: X1-25_4.pdf page 7 / 9...
- Page 8 recommended Installation: "Processor Darkroom - Exit to light" Stop cock document no.: X1-25_4.pdf page 8 / 9...
- Page 9 recommended Installation: "Infeed in Darkroom - processor in daylight" Stop cock document no.: X1-25_4.pdf page 9 / 9...
