Summary of Contents for Bushranger CSG010

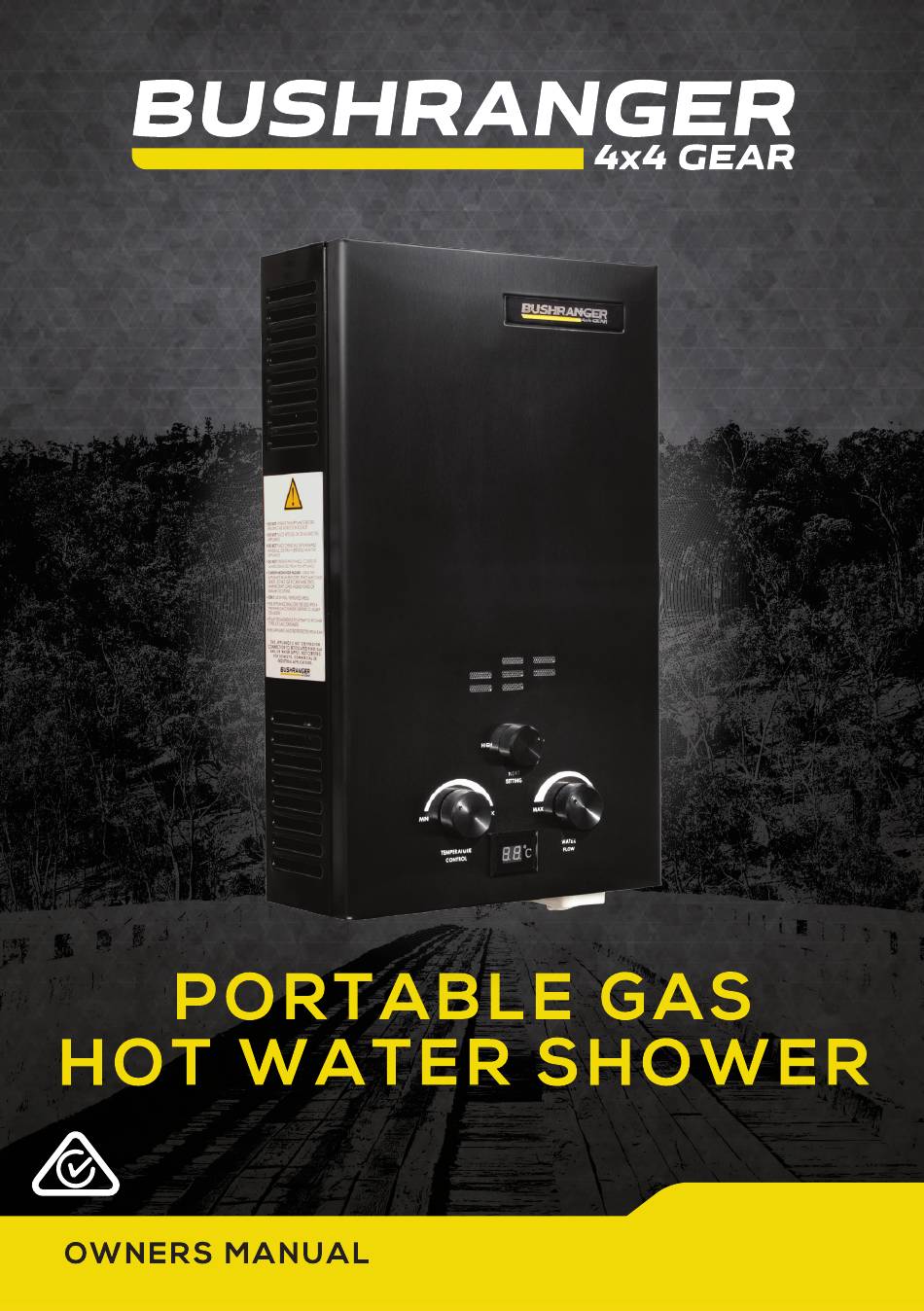

- Page 1 CSG010...
- Page 2 Congratulations on your purchase of the Bushranger® Gas Hot Water Shower. To take full advantage of this product, please read this manual carefully before using. Retain this manual for future reference for installation and warranty.
-
Page 3: Table Of Contents
Table of contents Product Information Safety Instructions Performance Specifications Installation Operation Care and Maintenance Troubleshooting Technical Assistance Warranty... -
Page 4: Product Information
Important It is IMPORTANT that you read these instructions carefully and understand the operation and safety features of this appliance. Familiarise yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference. The manufacturer reserves the right to make all the modifications to its products that it deems necessary or useful, also in your interests, without prejudicing its essential functional and safety characteristics. - Page 5 Warnings CAUTION! • THIS APPLIANCE IS NOT INTENDED FOR THE SUPPLY OF DRINKING WATER. • THIS APPLIANCE IS INTENDED FOR THE SUPPLY OF HEATED WATER FOR THE PURPOSE OF WASHING AND CLEANING ONLY. • CHECK AND CONFIRM SAFE WATER TEMPERATURE BEFORE USING THIS APPLIANCE.
-
Page 6: Safety Instructions
Safety Instructions This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. The following figures are diagrammatical representations of outdoor areas suitable for use with this appliance. -
Page 7: Performance
Carbon Monoxide Hazard This appliance can produce carbon monoxide, which has no odour. Using it in an enclosed space (For example, caravan, tent, car or mobile home) may cause DEATH. Hanging The Appliance OUTDOOR USE ONLY – The appliance must be used outdoors only and is to be operated no closer than 300mm from the sides, 1000mm from above and 1400mm from below to all combustible surfaces, fabrics, flammable materials &... - Page 8 Gas Type This appliance shall only be used with the Australian approved LPG gas hose & regulator assembly supplied with the appliance and must be connected only to an LPG gas cylinder certified to AS2469 and AS2030.1 standards that are fitted with LCC27 connections.
- Page 9 1 x Pump wiring harness Not included: Spanner, Screw Driver, Fresh Water Tank/Container or similar, Water Pump 12V DC Power Supply and Gas Bottle. If required, contact Bushranger 4x4 Gear for advice on the above items. | Gas Hot Water Shower Page 6...
-
Page 10: Specifications
Specifications Heat Exchanger Model Number CSG010 Australian Standard AS2658 IAPMO GMK10458 Injector Size (mm) 0.62 Total NGC (MJ/h) TPP (kPa) 2.75 Min. Water Pressure (kPa) Max. Water Pressure (kPa) 1000 Size (mm) 500 x 300 x 140 Weight (kg) Power (kW) - Page 11 Shower Rose (Heat Max. Flow Rate (L/min) Exchanger Limited) Flow Restriction On / Off Switch Flow Variations Dimensions (mm) 2.75 Weight (kg) 0.27 Max. Water Pressure (kPa) Size (mm) 400 x 295 x 140 Weight (kg) 0.26 Pump Model Number FL-022 Power Supply (V DC) Power Demand (Amps)
-
Page 12: Installation
Installation Process (inc. 12V Water Pump) Before use, it is important to prepare the unit by installing the proper components. In this example, we will be preparing the portable water heater to be used with a water input from the supplied 12-volt pump. 1. - Page 13 5. Locate the black water inlet hose (with silver fitting). Insert the black rubber washer into this crimped swivel fitting. Insert black rubber washer 6. Attach the water inlet hose to the water inlet via the crimped swivel fitting, tighten by hand. CAUTION TAKE CARE Do not to over tighten as this could break or crack the inlet pipe.
- Page 14 Installing the 12V Pump 1. Install the pump in a suitable high and dry position to avoid any contact with water, as the pump is not waterproof. Important: The pump must be NOT be installed with the motor facing downwards. 2.
- Page 15 Typical Installation Above 1000mm 300mm 300mm 1.4m 1400mm *Gas cylinder not included Water source The supplied meter LPG hose and regulator assembly connects to a 9 kg LPG cylinder (maximum size). The water heater is then located 1.4 meters from ground level to the connection points as shown above.
-
Page 16: Operation
Operation Now that the Gas Hot Water Shower has been prepared for our intended use, we can set it up for operation. 3. IMPORTANT 4. Once you determine that there are no leaks present with the gas valve open, turn the cylinder valve to the off (close) position. - Page 17 Heater Starting Process | Gas Hot Water Shower Page 14...
- Page 18 Note: You should hear a series of clicks and then the burner should ignite. The burner flame can be seen operating through the ‘viewing window’ located at the front of the appliance. 7. Turn the shower rose switch to the ON position and water should flow.
- Page 19 | Gas Hot Water Shower Page 16...
-
Page 20: Care And Maintenance
Care and Maintenance Your LPG Portable Water Heater has a metal casing and a stainless steel face plate and so, should be cleaned after each use. This will not only maintain the appearance of your Gas Hot Water Shower, it will also add to its longevity. Clean your LPG Portable Water Heater by following these steps: 1. -
Page 21: Troubleshooting
Troubleshooting This guide should be followed in case of failure of the appliance to operate correctly. If symptoms persist contact Customer Service on 1800 654 767 Problem Cause Make sure you have new batteries installed in the correct position. Negative should be down closest to you and Positive towards the back. -
Page 22: Technical Assistance
Pump motor may have failed. Technical Assistance and Spare Parts The Bushranger Gas Hot Water Shower has been inspected, tested and set by expert personnel prior to leaving the factory to guarantee quality. We always recommend contacting the place of purchase, specifying the model, serial number and type of problem you are having with the unit. -
Page 23: Warranty
Warranty period Portable Gas Hot Water Shower - 5 years Kingsley Enterprises Pty Ltd (ABN 23 001 592 749) E: sales@bushranger.com.au We/Us A: 6A Brooks Road, Ingleburn NSW 2565 P: 1800 654 767 W: www.bushranger.com.au... - Page 24 Free Call |1800 654 767 (Australia only) International |+61 2 8700 0400 Fax |+61 2 8700 0499 Email | sales@bushranger.com.au 0271-22O Address | 6A Brooks Road, Ingleburn NSW 2565...
