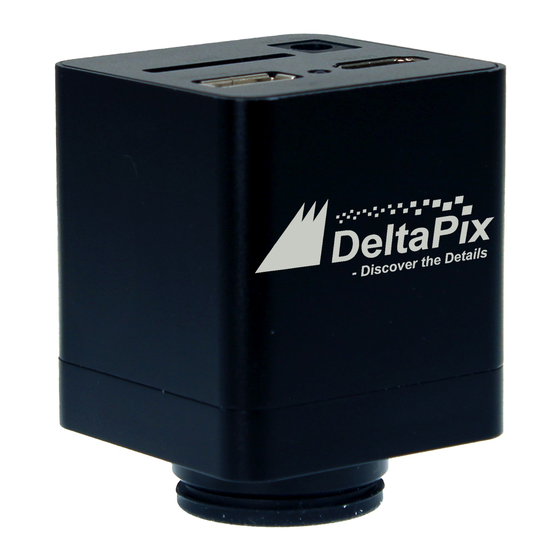

  • Page 1 The HDMI02DPX Camera Manual...

  • Page 2: Table Of Contents

    Contents Contents ....................................Camera Working Standalone with Built-in Software ................... 4 Brief Introduction of HDMI02DPX Camera’s UI and Its Functions ................. 5 UI ................................5 The Camera Control Panel on the Left Side of the Video Window ............... 6 The Measurement Toolbar on top of the Video Window ................7...

  • Page 3: Camera Working Standalone With Built-In Software

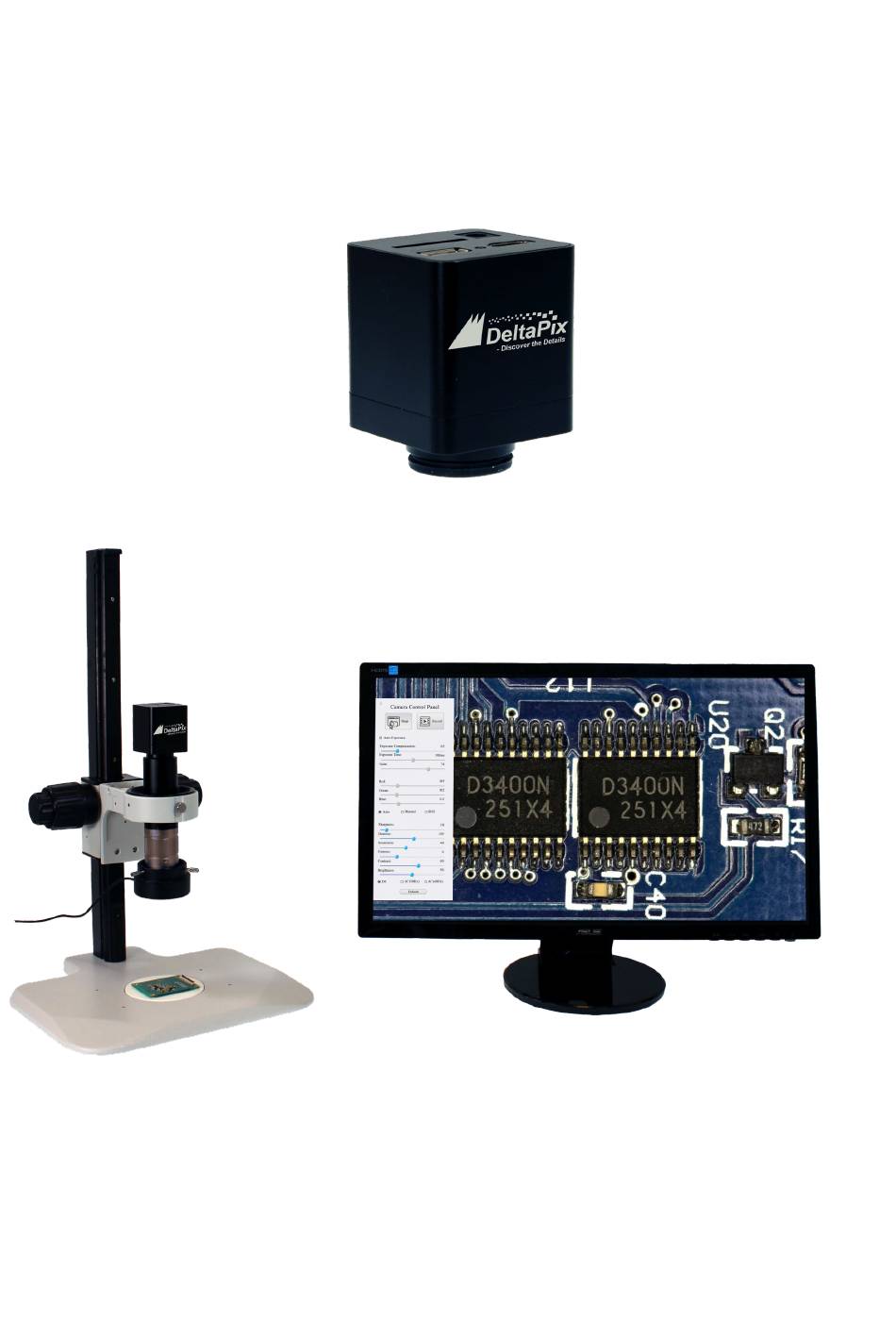

    For this application, apart from the microscope, you only need an HDMI monitor, the supplied USB mouse and the camera embedded software. The steps to start the camera are listed below: Figure 4-1 The HDMI02DPX with HDMI Monitor Connect the camera to a HDMI monitor using the HDMI cable;...

  • Page 4: Brief Introduction Of Hdmi02Dpx Camera's Ui And Its Functions

     or bottom of the software UI, different control panels in the UI will pop up and the user can operate with the mouse. Brief Introduction of HDMI02DPX Camera’s UI and Its Functions Software UI HDMI02DPX camera’s UI shown in Figure 5-1 includes a...

  • Page 5: The Camera Control Panel On The Left Side Of The Video Window

    The HDMI02DPX Camera Manual Notes To show the Camera Control Panel, move your mouse to the left of the video window. See Sec.5.2 for details Move the mouse cursor to the top of the video window, a Measurement Toolbar will pop up for calibration and measurement operations.

  • Page 6: The Measurement Toolbar On Top Of The Video Window

    The HDMI02DPX Camera Manual The Measurement Toolbar on top of the Video Window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the...
  • Page 7 The HDMI02DPX Camera Help Manual Scale Bar Arrow Execute Calibration to determine the corresponding relation between magnification and resolution, which will establish the corresponding relationship between measurement unit and the sensor pixel size. Calibration needs to be done with the help of a micrometer. For detailed steps of carrying out...
  • Page 8 The HDMI02DPX Camera Help Manual 9 / 15...

  • Page 9: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of The Video Window

    The HDMI02DPX Camera Help Manual Note: 1) When user left-clicks Display/Hide button on the Measurement Toolbar, the Measurement Toolbar will be fixed. In this case the Camera Control Panel will not pop up automatically even if moving the mouse cursor to the left edge of the video window.
  • Page 10 The HDMI02DPX Camera Manual 5.4.1 Setting>Measurement Figure 5-2 The Measurement Setup Global Precision Used to set the number of digits after the decimal point of the measurement result Calibration Line Width Used for defining width of the lines for calibration;...
  • Page 11 The HDMI02DPX Camera Manual 5.4.3 Settings>Image Format Figure 5-4 Comprehensive Image Format Settings Page Burn in Mode: The measurement objects are merged into the current image. User could not edit the measurement objects Measurement anymore. This mode is not reversable.
  • Page 12 The HDMI02DPX Camera Manual H264: The encoding format of the video files is H264 format. Video Encode H265: The encoding format of the video files is H265 format. 5.4.5 Setting>Storage Figure 5-7 Comprehensive Setting of SD Card Setting Page Storage Device...
  • Page 13 The HDMI02DPX Camera Manual 5.4.7 Setting>Language Figure 5-9 Comprehensive Setting of Language Selection Setting Page English Set language of the whole software into English; Simplified Chinese Set language of the whole software into Simplified Chinese; Traditional Chinese Set language of the whole software into Traditional Chinese;...
