Operating Manual
Asset Health Monitoring Solution
SRP700
BA01682S/04/EN/02.20
71495105
2020-08-25
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser SRP700

  • Page 1 Products Solutions Services Operating Manual Asset Health Monitoring Solution SRP700 BA01682S/04/EN/02.20 71495105 2020-08-25...
  • Page 2 Asset Health Monitoring Solution Operating Manual Version History Date Version Change 28.11.2019 01.00 Initial version 31.03.2020 01.01 New screenshots, AHM language switching Peter Berrie 25.08.2020 01.02 Editorial adjustments Endress+Hauser Digital Solutions...

  • Page 3: Table Of Contents

    Delete a device from the project ....................... 23 Replace a device in the project........................24 Configure a device ............................25 Add a new SRP700 Mobile Client ......................26 Add a new SRP700 Client .......................... 28 Installing Additional CommDTMs ......................29 Installing additional DeviceDTMs/Updating libraries ................

  • Page 4: General

    General 1.1 Purpose This Operating Manual describes how to operate the Asset Health Monitoring Solution (SRP700). It describes the overall concept and does not replace the operating manuals of the individual applications, e.g. FieldCare or Field Xpert, but rather is seen as an addition.

  • Page 5: System Overview

    Asset Health Monitoring Solution Operating Manual System Overview 2.1 Example of Rockwell system Figure 2.1: Example of EtherNet/IP system architecture Endress+Hauser Digital Solutions...

  • Page 6: Example Of Siemens System

    2.3 System Components 2.3.1 SRP700 Gateway SRP700 Gateway hides network complexity by automatically scanning for connected devices out of the box. Diagnostic information from up to 1024 devices is available 24/7. Devices can be configured independently from any client without interrupting the Asset Health Monitoring. The Gateway may be implemented as either hardware or as a virtual machine.
  • Page 7 Asset Health Monitoring. It runs either on traditional hardware or in a Virtual Machine environment. It collects and stores diagnostic information from up to 10 SRP700 Gateways in one database. The information displayed can be filtered by e.g. status, topology, device type or searched by tag etc.
  • Page 8 2.3.4 SRP700 Mobile Client Figure 2.4: Field Xpert SMT70 industrial tablet SRP700 Mobile Client is the well-proven Field Xpert SMT70, IP65/Class 1 Div 2 or Field Xpert SMT77, Zone 1, industrial tablet for Device Configuration. It provides access in the field via Wireless (WiFi &...

  • Page 9: Using The Srp700

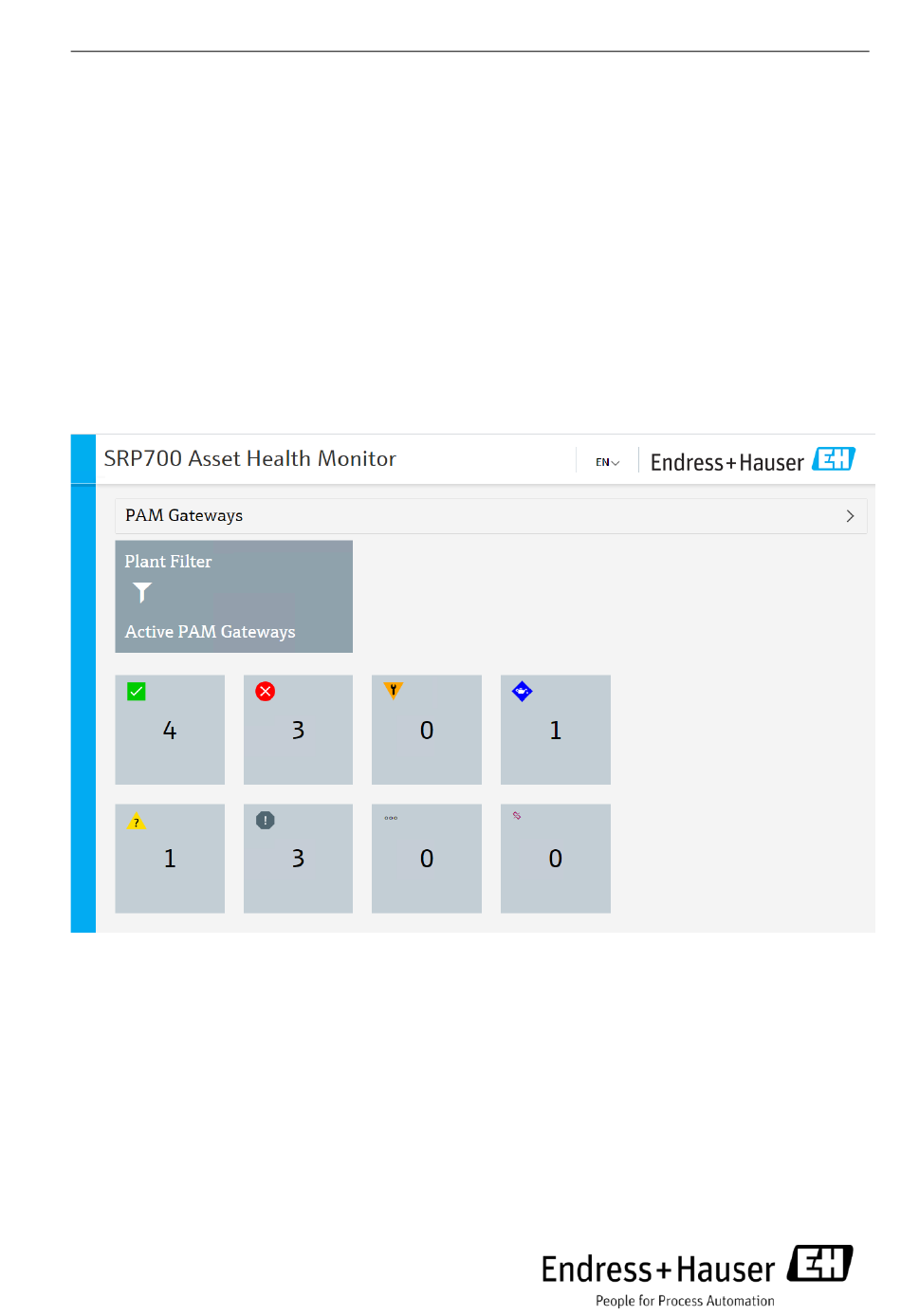

    3.1.1 Home 1. Open Asset Health Monitor in your standard browser. 2. On the main screen you get an overview of all the SRP700 Gateways connected to the server. Figure 3.1: Home page of Asset Health Monitor SRP700 The home page of the Asset Health Monitor provides an overview of all the connected devices sorted according to their NAMUR 107 diagnostic status.
  • Page 10 Asset Health Monitoring Solution Operating Manual 3.1.2 Connected SRP700 Gateways 1. Click on the arrow at the end of the bar The connected gateways are displayed • The symbol in the top corner indicates the status of the devices connected to the gateway, •...
  • Page 11 Tiles appear for the devices in the selected area • 5. Click on the device you wish to see The device page for the selected device appears • More information on the device pages are to be found in Chapter 3.1.4. • Endress+Hauser Digital Solutions...
  • Page 12 Click on a device tag to open the corresponding device page, see Chapter 4.1.4 • Enter a device tag, serial number or any other characteristic property to be found in the data • base and click on to search for it. Endress+Hauser Digital Solutions...
  • Page 13 4. The list or tiles can be filtered according to Device status • Device type • A search term entered in the search field (press Enter) • The symbols are explained in Chapter 4.3 • Endress+Hauser Digital Solutions...
  • Page 14 1. The Device page contains information on the device and shows the current device status, where appropriate with cause and remedy information 2. Click on Device History to obtain a list of status changes 3. To reconfigure a device, click on FieldCare opens • Endress+Hauser Digital Solutions...

  • Page 15: Srp700 Mobile Client

    Click on “Remote Assistant” • 2. Select Communication Server SRP700 Gateway (or the name it has been given) 3. Navigate to the device you want to configure either by using the Plant Filter (Step 4) or the Plant View (Step 5)
  • Page 16 5. In Plant View navigate to the area where the device is installed 6. Click on the device to view its details See Field Xpert manual BA01709S/04/EN or Field Xpert SMT77 for further information on • the options available on this page Endress+Hauser Digital Solutions...

  • Page 17: Srp700 Asset Health Monitor Symbols

    Asset Health Monitoring Solution Operating Manual 3.3 SRP700 Asset Health Monitor symbols The following symbols appear both in the plant filter pages as well as the listings of the devices. Symbol Meaning Symbol Meaning Analysis device Device OK Digital device...

  • Page 18: Using A Kpi Dashboard - Example With Visual Kpi From Transpara

    2. The site overview shows current percentage of devices requiring attention. 3. The main KPI shows the where the devices requiring attention are to be found, together with the number of events that have occurred at each location (in this case network). Endress+Hauser Digital Solutions...
  • Page 19 6. The KPI by location (here network) shows the status of all the devices at each location 7. Clicking on View will open a KPI showing the location in detail: The actual form of the KPI depends on how it has been set up • Endress+Hauser Digital Solutions...
  • Page 20 Asset Health Monitoring Solution Operating Manual 8. A click on a device tile will open the associated device KPI The KPI includes name, type, serial number, current status, heath history, etc. • Scroll down to see all information • Endress+Hauser Digital Solutions...

  • Page 21: Dashboard Tools And Icons

    Some options are not available if the profile is locked. • The status legend tells you what the colours used in the presentation of the data mean. • the legend may change according to the data you are viewing. • Endress+Hauser Digital Solutions...

  • Page 22: Maintaining The Project

    Maintaining the Project 5.1 Add a device to the project 1. Connect to SRP700 Gateway either via Remote Desktop or local access. 2. Navigate to the module where the new device is connected to and click “Verify network” in the context menu.

  • Page 23: Delete A Device From The Project

    Operating Manual 5.2 Delete a device from the project 1. Connect to SRP700 Gateway either via Remote Desktop or local access. 2. Navigate to the module where the device is connected to and click delete the placeholder. 3. Delete the position in the Plant Topology.

  • Page 24: Replace A Device In The Project

    It is not necessary to delete the old device from the project • 1. Connect to SRP700 Gateway either via Remote Desktop or local access. 2. Navigate to the module where the new device is connected to and click “Verify network” in the context menu.

  • Page 25: Configure A Device

    5.4 Configure a device 5.4.1 On SRP700 Client FieldCare including the Device DTMs must be installed on the client. • All necessary CommDTMs must be installed on the SRP700 Gateway • See also Chapter 4.1 etc. • 1. Open SRP700 Asset Health Monitor in your standard browser.

  • Page 26: Add A New Srp700 Mobile Client

    Field Xpert SMT77 Manual BA01923S/04/EN and Technical Information TI01345S/04/EN Before an additional SRP700 Mobile Client can work with the system the following procedure must be followed 1. Open the Device Specifications page and, if necessary, rename the computer by clicking on Rename this PC 2.
  • Page 27 Asset Health Monitoring Solution Operating Manual 5.5.2 Assign the PAM Client (SMT70) to the SRP700 Gateway 1. In the start screen select the Menu icon 2. In the Menu page, select Settings 3. After selecting the language you want, click on Connectivity 4.

  • Page 28: Add A New Srp700 Client

    Password (Admin) • 2. Follow the procedures for licensing FieldCare in the Getting Started manual BA00027S/04/A2 3. In your preferred Web Browser open the SRP700 Asset Health Monitor by entering the IP- Address. Create a bookmark for later access. •...

  • Page 29: Installing Additional Commdtms

    Operating Manual 5.7 Installing Additional CommDTMs See FieldCare Manuals BA00065/04/EN and SD01928S/04/EN The CommDTMs are already installed on the SRP700 Gateway. Normally it is not necessary for the user to install additional CommDTMs. 5.8 Installing additional DeviceDTMs/Updating libraries See FieldCare Manual BA00065/04/EN and Field Xpert Manual BA01709/04/EN The DeviceDTMs are already installed on the clients.
