- Page 1 ® RAFFIC OGIX PEED RACKER UICK TART UIDE Product Documentation Copyright © 2020 Traffic Logix Corporation All rights reserved.
- Page 2 Traffic Logix Corporation. This document is supplied as a guide for the Speed Tracker product. Reasonable care has been taken in preparing the information it contains. However, it is possible that this document contains omissions, technical inaccuracies, or typographical errors.
-
Page 3: Table Of Contents
Turning Speed Tracker On and Off Signing In and Out of the User Interface Navigating the User Interface Creating a Location for your Speed Tracker Assigning a Speed Tracker to a Location Setting Speed Limits Monitoring Your Speed Tracker Locations... -
Page 4: Introduction
Chapter 1 NTRODUCTION Speed Tracker Quick Start Guide p. 4... -
Page 5: Description

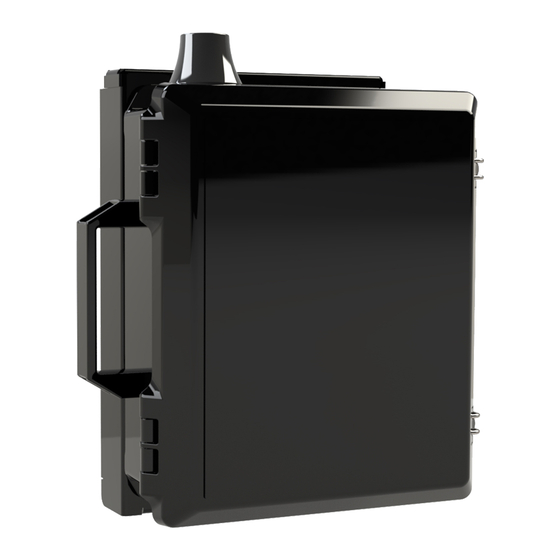

Description Description The Speed Tracker is a simple, compact, wireless solution for managing speed complaints on local roads. It gathers detailed data on speeding violations and other traffic statistics which it then transmits wirelessly and securely to SafePace Cloud, our remote management application. SafePace Cloud provides easy remote access to this data, with robust reporting and visual charts and graphs which you can export, save and print. -
Page 6: About This Guide
About this Guide This Quick Start Guide is meant for anyone who needs to set up Speed Tracker for the first time to work with SafePace Cloud. It is intended to allow you to get up and running quickly with your Speed Tracker and SafePace Cloud. -
Page 7: Documentation Conventions
Cautions are used to advise users of specific actions that could result in a loss of data. AUTION Warnings are used to advise users of specific actions that could result in personal physical ARNING injury or damage to equipment. Speed Tracker Quick Start Guide p. 7... -
Page 8: Additional Customer Resources
Provides convenient access to the latest versions of our software applications and utilities. Support Videos Provides access to several videos that can help you get up to speed with your Traffic Logix product. Product Documentation Provides access to the most recent versions of our product documentation. If you are unable to access our online documentation, please contact our Technical Support Department to discuss alternatives. - Page 9 Chapter 2 Speed Tracker Quick Start Guide p. 9...
-
Page 10: Getting Started With Speed Tracker
ETTING TARTED WITH PEED RACKER Speed Tracker Quick Start Guide p. 10... -
Page 11: Turning Speed Tracker On And Off
Turning Speed Tracker On and Off Turning Speed Tracker On and Off There is no ON/OFF switch supplied with the Speed Tracker. The device immediately powers on when the power source is connected. To turn the device on: Open the device. -
Page 12: Signing In And Out Of The User Interface
SafePace Cloud home page is displayed. To sign out of SafePace Cloud: In the Menu bar, click the user menu then choose Logout. » This signs you out from SafePace Cloud and displays the sign in screen. Speed Tracker Quick Start Guide p. 12... -
Page 13: Navigating The User Interface
Allows you to generate charts and reports based on the data collected. Displays a map of your locations and allows you to see the status of, and selected real-time readings from, any associated devices. Speed Tracker Quick Start Guide p. 13... - Page 14 Allows you to process any alerts generated by SafePace Cloud. Not applicable to OpenSpace Cloud users. Tools Allows you to configure and manage your installed devices. Manage Allows you to set and manage locations. Locations Speed Tracker Quick Start Guide p. 14...
-
Page 15: Creating A Location For Your Speed Tracker
SafePace Cloud allows you to create multiple locations, to which you can later assign devices . : To create a location for your Speed Tracker: In the menu bar, click Manage Locations. The Manage Locations page is displayed. - Page 16 Creating a Location for your Speed Tracker Navigate (zoom and drag) the map to the location you want to create, then double-click to place the • location icon. Specify the following parameters: Location Name – Type a name for the location.
- Page 17 Creating a Location for your Speed Tracker The new location is created and displayed in the location listings. Speed Tracker Quick Start Guide p. 17...
-
Page 18: Assigning A Speed Tracker To A Location
Assigning a Speed Tracker to a Location When you assign a Speed Tracker to a location any data collected by that Speed Tracker is then associated with that location in SafePace Cloud. Should you then assign the Speed Tracker to a new location the data collected at the old location remains associated with that location. - Page 19 The Assign Radar Sign dialog box closes and a blue Radar Sign icon is displayed in the listing for the location. To remove a Speed Tracker from a location: Select the location from which you want to remove the Speed Tracker. Click the Radar Signs icon. The Assign Radar Sign dialog box is displayed.
- Page 20 Assigning a Speed Tracker to a Location The Assign Radar Sign dialog box closes and the device is no longer assigned to the location. The Radar Sign icon is dimmed in the location listing. Speed Tracker Quick Start Guide p. 20...
-
Page 21: Setting Speed Limits
Setting Speed Limits Setting Speed Limits With Speed Tracker, the speed limits set for a location are used primarily as data points when compiling traffic statistics. That is, they are used to determine if a detected vehicle is speeding or not. - Page 22 The Tolerated Speed setting allows you to specify a speed, beyond the speed limit, that could be tolerated. This simply allows another data point for use in reports. When you are finished, click Save. Speed Tracker Quick Start Guide p. 22...
-
Page 23: Monitoring Your Speed Tracker Locations
Monitoring Your Speed Tracker Locations Monitoring Your Speed Tracker Locations You can use Dashboards to monitor your device locations in SafePace Cloud. Monitoring your locations allows you to quickly see the status of the device(s), if there are any issues with the power supply to the device, as well as obtain a quick idea of the number and speed of the vehicles detected. - Page 24 Monitoring Your Speed Tracker Locations Monitoring Devices from the Dashboard The Dashboard provides you with a tabular view of the real-time parameters for all of your devices. This allows you to monitor all of your devices at a glance. To monitor your signs with the Dashboard:...
-
Page 25: Generating Reports
Generating Reports Generating Reports You can use the Signs Report Wizard in SafePace Cloud to generate statistical reports and charts to review the traffic statistics and data collected by Speed Tracker. To generate a report: In the Menu bar, go to Reports >... -
Page 26: Warranty
Terms of Use and any Applicable Safety Laws. Buyer agrees that there shall be no coverage or benefits of any kind under this limited warranty if it is determined by Traffic Logix that the Product was not installed or used in accordance with the Conditional Terms of Use or Applicable Safety Laws, or if the Product has been Speed Tracker Quick Start Guide p. - Page 27 Warranty altered in any way by anyone other than Traffic Logix, or if the Product has been subject to any misuse or accident. In addition, Buyer assumes and agrees to indemnify Traffic Logix for all risk, liability or expense that results from any installation or use of the Product that is not in accordance with the Conditional Terms of Use or any Applicable Safety Laws.
