Summary of Contents for WINDSY Wallbox Home 11 kW

Page 1 Machine Translated by Google...
Page 2: Table Of Contents
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual Table of Contents Change history and related documents............3 List of abbreviations..................4 Safety instructions ....................5 3.1. Personnel qualification requirements ..............5 3.2. Personal protective equipment ................5 3.3.
Page 3: Change History And Related Documents
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 1. History of changes and related documents Please read the related documents reference / document number document name revision EV-T-1000124 Declaration of Conformity EV-R-1000132 specification EV-I-1000025-01 Page 3 of 31...
Page 4: List Of Abbreviations
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 2. List of abbreviations Abbreviation Description International Electrotechnical Commission Electric vehicle (EV) this can be EV (battery EV) or PHEV (plug-in hybrid EV). Electric vehicle supply equipment [IEC61851-1] EVSE...
Page 5: Safety Instructions
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 3. Safety Instructions IMPORTANT: Please read this manual carefully before installing and operating • Check the grounding of the device before putting it into operation. • A visual inspection for damage should always be carried out before charging. In particular, the contact area of the charging plug should be checked for dirt and moisture, the charging cable for cuts or abrasions on the insulation, and the cable outlet of the charger for secure seating.
Page 6: Safety Signs
3.3. safety signs The following warning signs, mandatory signs and information signs are used in the User manual and partly used on the Windsy Wallbox 11 kW charging station: 3.3.1. warning signs Caution: Warning of electrical hazards. Severe personal injury or property damage can occur.
Page 7: Main Risks And Hazards When Carrying Out The Work
No access for people with pacemakers. If people with pacemakers come near the chargers, additional suitable measures must be taken. Windsy GmbH assumes no liability for the correctness of such measures and any consequential damage. EV-I-1000025-01 Page 7 of 31...
Page 8 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual Risk of electric shock, short circuit, fire hazard. Severe personal injury and property damage, death. 1. Installation and wiring must be done by qualified be carried out by qualified personnel.
Page 9 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual Risk of electric shock and fire hazard. Result of death, serious injuries. The replacement of accessories must be carried out by qualified personnel. Personnel must always wear safety shoes during maintenance work.
Page 10: Product Information

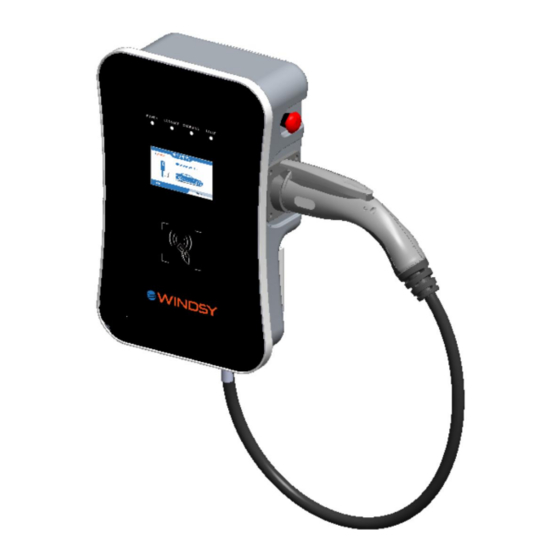

Windsy Wallbox 11 kW charging station. 4.1. General The Windsy Wallbox 11 kW charging station is a charging unit that uses your home electricity to feed energy directly into your electric car with a peak output of up to 11 kW. The current charge status as well as other information and notes during operation of the wall box are displayed on an LCD screen.
Page 11: Norms And Standards
- supplies for electric vehicles 4.3. charge mode The Windsy Wallbox 11 kW charging station corresponds to charging mode 3 according to IEC-61851- 1(3.1.9; 6.2.3). This is a method in which the AC charging device is continuously connected to the utility grid.
Page 12: Charging Connector
Figure 4: Schematic representation and assignment of the IEC 62196-2 Type 2 charging connector 4.6. Functional overview The functional overview of the Windsy Wallbox 11 kW charging station is shown in Figure 5 and shows the communication interfaces of the device.
Page 13: Technical Specifications
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 4.7. Technical specifications model Windsy wall box 11 kW rated capacity 11kW (@400V, 3-phase) Maximum rated current earth leakage circuit breaker Type B (alternatively Type A EV), 40A, 4-pole...
Page 14 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 4.7.3. Mechanical parameters 1 assembly wall mounting charging plug IEC 62196-2, Type 2 3 length charging cable 410mm × 260mm × 140mm 4 dimensions (H×W×D) Front panel: Black tempered glass color &...
Page 15: Assembly Instructions
If this is not the case, contact your supplier as soon as possible before installation. The scope of delivery of the Windsy Wallbox 11 kW includes : 1 EV charging station - 2 RFID cards 1 set for wall mounting incl. 4 cavity metal dowels...
Page 16 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 5.1.1. tools The following tools are for installing and wiring the Windsy Wallbox 11 kW necessary and should be available. number tool Scheme drawing application Check the electrical multimeter...
Page 17: Wall Mounting
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual contain explosive gases. 5. Do not leave flammable or explosive substances near the EV charging station. Otherwise a dangerous explosion may occur. 6. The EV charging station should be in a place...
Page 18 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual Step 2: Wire Connection 1. Attach the suspension device (ÿ) to the wall box ÿ: input terminal box; ÿ: input cable interface; ÿ: charging adapter interface; ÿ: accessories; ÿ: input connector (L1/ L2/L3/N/PE/RJ-45);...
Page 19 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual cordon off Risk of electric shock, short circuit. fire hazard. Serious personal injury and property damage. fatality. 1. The installation and cabling must be carried out by a specialist company 2.
Page 20 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual input interface of the charging station, and then attach the neutral wire, live wires (L1/L2/L3) and PE wire to the appropriate terminals. If communication is to take place via the network cable, route the network cable via the charging adapter interface (ÿ) and insert the RJ-45...
Page 21 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual Step 3: Hanging the Wallbox risk of falling Hang the Wallbox in the direction of the arrow on the wall bracket. Tighten the screws on the left and right side of the bracket to fix the charging station in place.
Page 22: Operation Manual
Windsy Wallbox Home 11 kW operation manual 6. User Manual 6.1. controls As shown in Figure 6, the Windsy Wallbox is 11 kW with multiple controls fitted. ÿ LED indicators ÿ Emergency stop button ÿ LCD screen ÿ Charging plug ÿ...
Page 23 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 6.1.1. Wallbox status LEDs The four LEDs on top of the front panel indicate the current status of the charging station according to the table below. power Fault Connect Charge...
Page 24 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 6.1.2. screen The 4.3 inch LCD display shows various status information of the charging station. These are shown in Table 1. a) Standby mode b) Start charging c) Loading process is started...
Page 25: Initial Start-Up
Windsy Wallbox Home 11 kW operation manual 6.1.3. RFID The Windsy Wallbox 11 kW is equipped with an RFID card reader as standard. If this mode is set, the charging process can be started and stopped via a configured RFID card. 6.1.4. Emergency switch In the event of an emergency such as fire, smoke or abnormal noise from the charging station, press this switch to stop charging immediately.
Page 26: Loading Process
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 6.3. loading process It is strictly forbidden for minors or unauthorized persons to approach the charging station to avoid injury. Charging is strictly prohibited if the electric vehicle or charging station fails.
Page 27 Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 6.3.3. End the charging process with the emergency stop switch The last possibility to end the charging process is the emergency stop. This can either be triggered manually in an emergency (fire, smoke, unusual noises, ...) via the switch on the wall box, via the vehicle's on-board charger or via an internal stop in the charging station (overheating, overcurrent, ...).
Page 28: Troubleshooting And Maintenance
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 7. Troubleshooting and Maintenance 7.1. fault diagnosis In the event of an error, the Wallbox stops to protect against accidents and damage. In this case, the "Fault" LED flashes and the pattern indicates the error present. In addition, the error is also shown on the display.
Page 29: Maintenance And Cleaning
Personnel must always wear safety shoes during maintenance work. It is recommended to check the condition of the Windsy Wallbox 11 kW at least weekly investigate. Check the wallbox for damage to the housing and especially the cables to avoid accidents.
Page 30: Disposal
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 8. Disposal 8.1. Dispose of packaging Dispose of the packaging by type. Give cardboard to the waste paper, as well as foils to the recyclables collection. 8.2. Dispose of old devices...
Page 31: Declaration Of Conformity
Machine Translated by Google Windsy Wallbox Home 11 kW operation manual 9. Declaration of Conformity EV-I-1000025-01 Page 31 of 31 Valid from: 03-28.03.2022...
