camry Dual-18650 Instruction Sheet

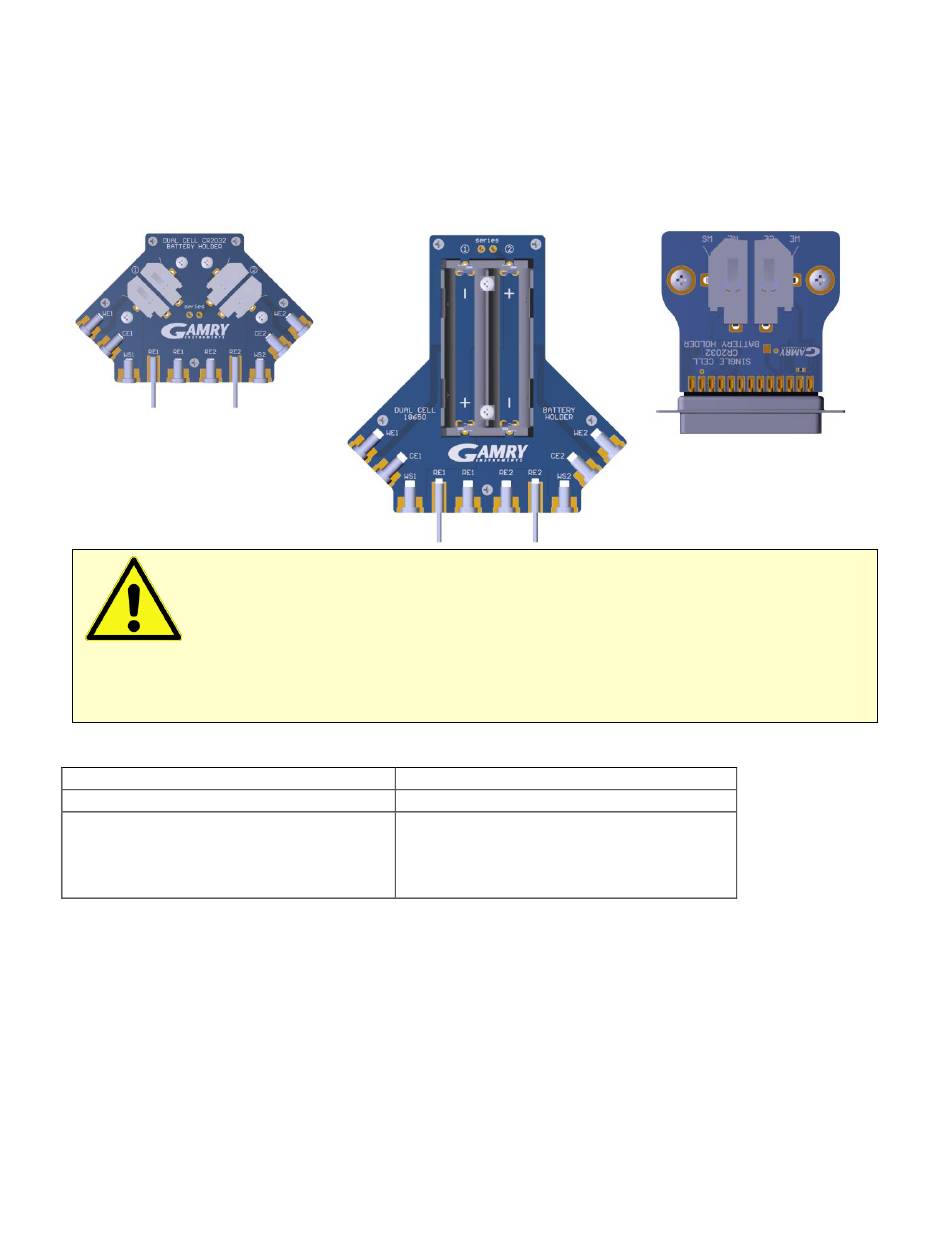

Gamry Instruments' dual-18650 (992-00158) and dual-CR2032 (992-00159) battery holders allow
measurements on single batteries or two cells in series. The single-cell CR2032 (992-00160) accommodates
only single batteries but can be connected directly to Gamry Instruments' potentiostats.
Dual-CR2032
Warning:
emission of hazardous chemicals, potentially causing severe damage, personal injury, or death. Gamry
Instruments, Inc. is not responsible for battery failures caused by misuse of the equipment or defects in
battery construction.

Specifications

Maximum current rating
Operating temperature range (holder only)
Dimensions:
Dual-18650
Dual CR2032
Single CR2032

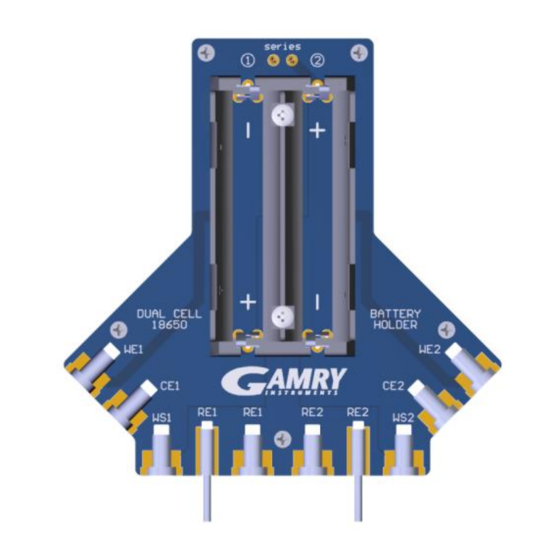

For Single-Cell Measurements, the descriptions on the battery holder indicate connections for the cell cable. The
dual-battery holders have two reference lead (RE) connections for each cell. Each pair is shorted, hence you can
use either one of them to connect the reference lead, depending on your cell cable. We also provide an accessory
kit (990-00406) to connect the smaller 2 mm banana connectors.
900-00087 Battery Holder Handout Version 1.0, November 18, 2019
Instruction sheet for Battery Holders
Dual-18650
Improper operation creates a safety hazard which can lead to fire, explosion, and
10 A @ 20°C
–50 to +125°C
W: 120 mm, L: 134 mm, H: 32 mm
W: 120 mm, L: 89 mm, H: 30 mm
W: 55 mm, L: 57 mm, H: 14 mm
Single-cell CR2032
