TECHNICAL INSTRUCTIONS

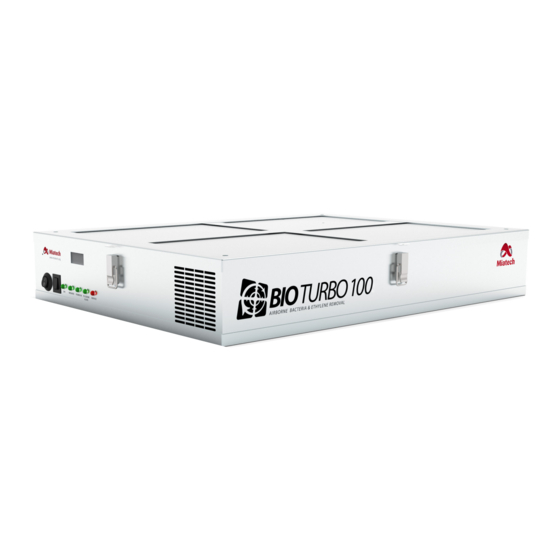

Bio Turbo 100 User Guide
AIRBORNE BACTERIA & ETHYLENE REMOVAL
Specification Sheet . . . . . . . . . . 2
Installation Guide . . . . . . . . . . . . 3
Layout Diagram . . . . . . . . . . . . . . 4
Maintenance Guide . . . . . . . . . . 5
Wiring Diagram . . . . . . . . . . . . . . 6
Pull Sheet . . . . . . . . . . . . . . . . . . 8
JAN 15, 2020
Advertisement
Table of Contents
Related Manuals for Miatech Bio Turbo 100
Summary of Contents for Miatech Bio Turbo 100
- Page 1 TECHNICAL INSTRUCTIONS Bio Turbo 100 User Guide AIRBORNE BACTERIA & ETHYLENE REMOVAL Specification Sheet . . . . . . . . . . 2 Installation Guide . . . . . . . . . . . . 3 Layout Diagram .
- Page 2 Bio Turbo 100 Specification Sheet Features Model(s) Bio Turbo 100 Maximum volume up to 3300 ft³ (100 m³) per 24 hours • LED lights for quick diagnostics Airflow 3 CFM (0 .1 CMM) • Easy service Location Requirements • Easy changing of ozone plates and filters...
- Page 3 OpERATION The Bio Turbo 100 is referred to, as the BT 100 . The 100 indicates the amount of Cubic Meters the unit can properly control within a 24 hour period . The BT 100 was designed to remove ethylene from cold rooms and storage areas where fruits and vegetables are stored in order to exteng their storage life .
- Page 4 LAYOUT DIAGRAM v. 1.1 Bio Turbo 100 Layout Diagram Toll Free in North America: USA – phone: 1-503-659-5680 1-800-933-6478 Fax: 1-503-659-2204 www.miatech.org November 2010 THE ADVANTAGE COUNTS M I A T E C H T E C H N I C A L I N S T R U C T I O N S...
- Page 5 Bio Turbo 100 Maintenance Guide CAUTION: Diagnostic LED’s Name Description ALWAYS UNpLUG pOWER BEfORE SERVICE! “Breaker” (on the Controller Chamber) Power to the Unit “Power IN” (on the Controller Chamber) Power to the Power Supply Maintenance Requirements “24 V” (on the Controller Chamber)
- Page 6 Bio Turbo 100 Wiring Diagram M I A T E C H T E C H N I C A L I N S T R U C T I O N S B I O T U R B O 1 0 0 U S E R G U I d E...
- Page 7 Notes...
- Page 8 Bio Turbo 100 Pull Sheet Pack PART NO . PART NAME AMOUNT INSP . 24034 #14 x 2 1/2" Screw 24035 #14 Plastic Anchor 25070 BT Facility Entrance Label *See order for language DATE PULLER CHECKER Miatech Inc .
