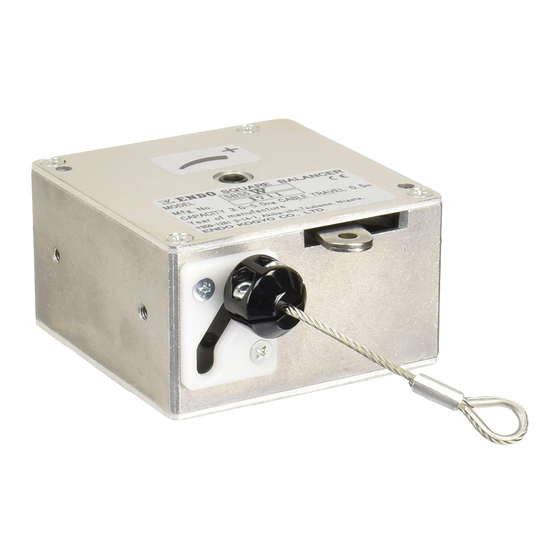

- Page 1 INSTRUCTION MANUAL SQUARE BALANCER SBS3W SBS3N SBS5W SBS5N 警 告 WARNING 昇 ● Read this manual before use. ● Keep this manual available. ENDO KOGYO CO., LTD. BM-10130a Issued on April 2016...
- Page 2 Copyright and liabilities The copyright for this manual belongs to Endo Kogyo Co., Ltd. The manual is provided for the limited purpose of supporting the safe and proper use of the product. It cannot be used for other purposes. The customer may not use or make copies of this manual, in whole or in part, outside of this purpose without receiving prior consent from Endo Kogyo Co., Ltd.
- Page 3 ＳＡＦＥＴＹ ＡＬＥＲＴ ＳＹＭＢＯＬ ＡＮＤ ＡＬＥＲＴ ＳＩＧＮＳ ＳＩＧＮＳ Please read this manual carefully and follow its instructions. The SAFETY ALERT SYMBOL ( ), WARNING, CAUTION, and NOTE carry special messages. This SAFETY ALERT SYMBOL is used to call your attention to items or operations that could be dangerous to you or other persons using this equipment.
- Page 4 Scope of warranty and liabilities for the equipment 1. We will repair or replace the product free of charge if a failure due to manufacturing defects occurs under proper usage during the warranty period. For details, contact us or your dealer. 2.
-
Page 5: Table Of Contents
CONTENTS Safety instructions---------------------------------------------1 2. Specifications---------------------------------------------------------1 3. Drawing----------------------------------------------------------------1 4. Spring tension attachment----------------------------------------2 5. Safety instructions on use-----------------------------------------3 6. Inspections-------------------------------------------------------------4 7. Parts list----------------------------------------------------------------5... -
Page 6: Safety Instructions
● Periodically inspect the balancer. ● 2 ． Specifications Capacity Extended Model Stroke(m) Type of rope Mass(kg) range(kg) length(m) 1.5～3.0 SBS3W Wire rope Approx.0.8 With thimble 3.0～5.0 SBS5W SBS3N 1.5～3.0 Nylon rope Approx0.8 3.0～5.0 Without thimble SBS5N Working conditions Application area : Indoor and normal atmospheric conditions ■... -
Page 7: Spring Tension Attachment
Please confirm indication of main body, the direction of two sides is not same. Decrease the spring tension by moving releasing lever in right and left. NOTE ： Factory setting of spring tension SBS3W ／ SBS3N…Approx.2kg ・ SBS5W ／ SBS5N…Approx.4kg ・... -
Page 8: Safety Instructions On Use
Model ： SBS3W/SBS3N Model ： SBS5W/SBS5N Fig.2 CAUTION: Initial tension indicates the number of revolutions of the spindle when wire rope is fully retracted into drum. Use in the range of dotted line will lose balance. 5. Safety instructions on use WARNING Never use overhead or at the place might lead to injury accident when load dropped. -
Page 9: Inspections
6. Inspections WARNING Periodically inspect the balancer, and replace any worn or damaged parts. ● CAUTION Always use genuine parts for replacement. ● Inspect the balancer at least once a month. ■ Correct and repair any problems which are detected. Make the inspection interval shorter when operating frequently or under hostile environments. -
Page 10: Parts List
7. Parts list Ref. Quantity Part No. Description SBS3W SBS3N SBS5W SBS5N P2B100186 Case P2B301373 Ratchet P2B402223 Screw KA30220500 Plain washer KA25520502 U-nut P2B402337 Plate KA10220408 Machine screw P2B200259 Drum P2B301374 Spring － － P2B301375 Spring － － P2B301376 Shaft...
