Lowrance FM-6 Installation Notes

This adapter kit is designed for in-dash mounting the following products:

Lowrance X47; Eagle

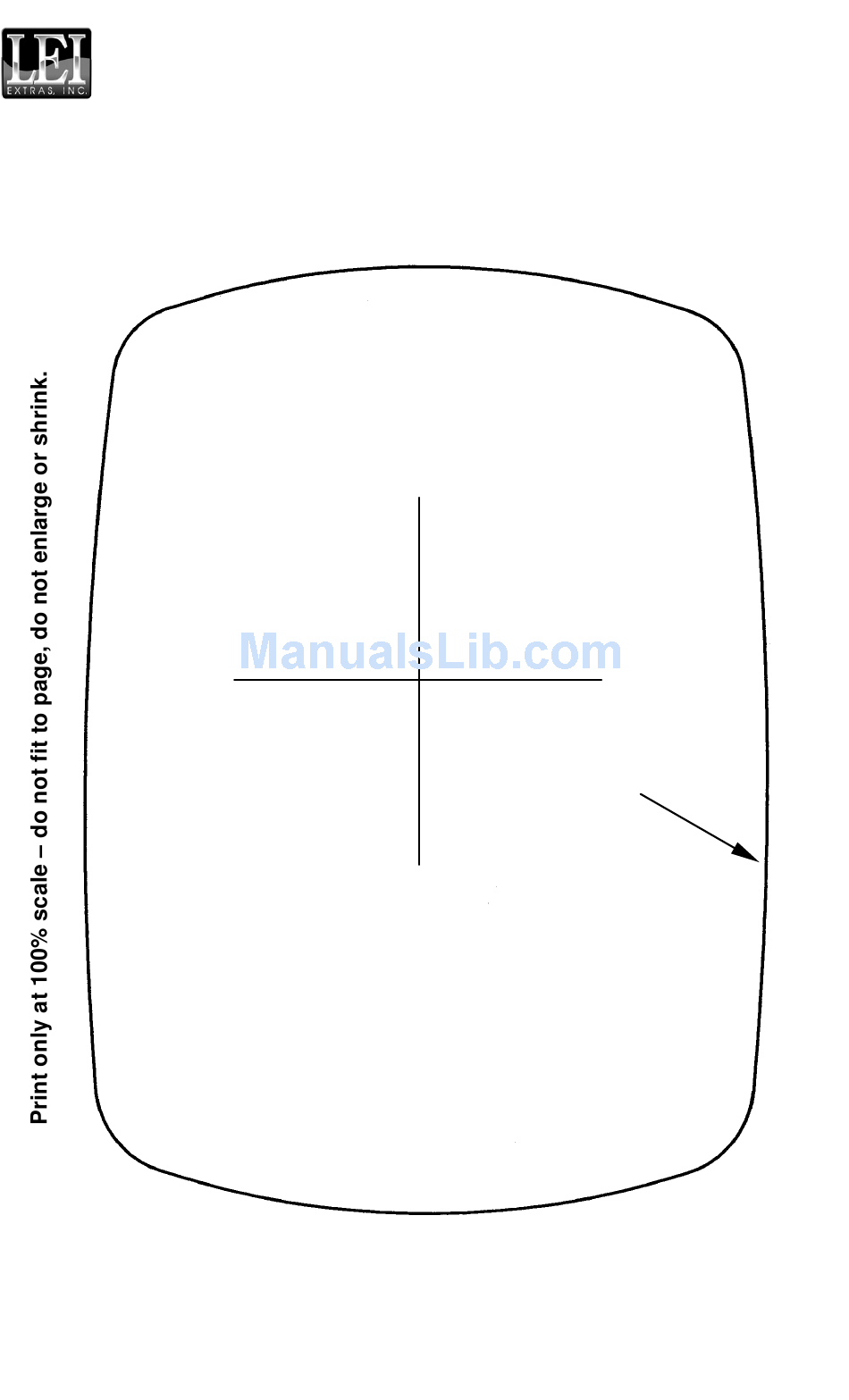

Measure the reference cross-hair below to con-
firm that this template is printed to the correct
scale. The vertical line and the horizontal line
should each be 2 inches long (50.8 mm.)
After selecting location with sufficient cable
clearance behind unit, tape this page to dash.
Drill jigsaw blade starter hole near template
center. Insert saw and cut along outside line.
Remove backing from one side of mounting
gasket. Orient gasket with the notch up (at top of
unit). Press gasket onto unit. Attach cable.
Remove remaining backing from gasket. Place
unit into cutout and press firmly around entire
outer edge.
Instructions appear here only in abbreviated form. For complete instruc-
tions, see Lowrance manual 988-0105-941 and Eagle manual 988-0143-
631. Manuals are for sale from LEI or can be downloaded free from the
Lowrance and Eagle web sites. See sheet back for addresses.
FM-6
In-Dash Adapter Kit
Installation Notes

Cuda 128, Cuda 168.
ALWAYS VERIFY DIMENSIONS!
Top
Cut along this line
1
Pub. 988-0147-631
