Equipment Zone Blazer Pro Quick Reference Manual

To provide added support and ensure consistent height across the Platen, Rail
Supports may be added to strengthen the Platen supports.

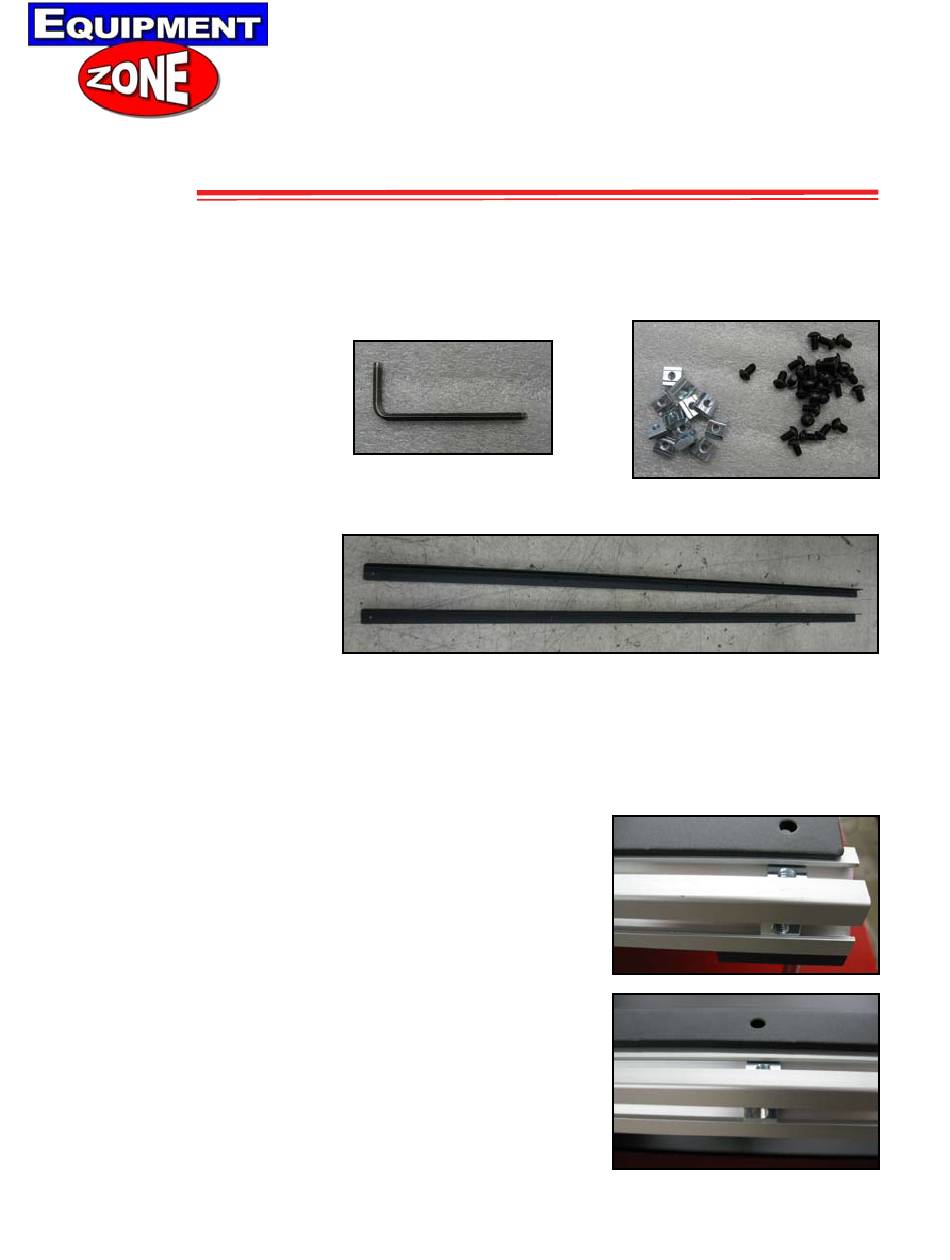

Included in this kit are:

20 Rail Anchors (A)
20 Hex Button Screws (B)
1 Hex Wrench (C)
2 Rail Supports (D)
1. To install the Rail Supports, begin by sliding five silver Rail Anchors into the
TOP groove and five silver rail Anchors into the OUTSIDE groove. The Anchors
will receive the screws and when the screws are tightened, they will lock the
Supports in place.
2. Set the Rail Supports along the INSIDE edge
of the Platen Rails to use as guides for the
positioning of the Rail Anchors. Try to center
the Rail Supports by leaving about 1/4" to 3/8"
spacing between each end of the Supports and
each end of the Platen Rails.
1-800-408-0040
(01) 201-797-1504
info@equipmentzone.com

Installing Platen Rail Supports

(C)
1
Quick Reference Guide
on the Blazer Pro
Version 1.1 May 2008
(A)
(D)
(B)
