Mercury Premier Dual Handle ERC Quick Reference

A C T I V E T R I M
Active Trim is an intuitive, hands‑free system that continually adjusts
engine or drive trim based on changes in operating conditions to
improve performance, fuel economy and ease of operation.
At boat startup, Active Trim resumes the on/off state from
the previous shutdown. Active Trim can be overridden at any
time by using the regular manual trim switch.
To engage Active Trim
Press the ACTIVE TRIM button.
To disengage Active Trim
Press the ACTIVE TRIM button.
Active Trim Profiles
There are five trim profiles. The lower the number, the less
aggressive the trim position of the outboard or drive will be at
a lower boat speed. As the trim profile number is increased, the
more aggressive the trim position will be at lower boat speeds.
WARNING: Active Trim cannot detect water depth and will not
trim up automatically in shallow water. The boat operator will
need to override Active Trim by trimming manually or pressing
the ACTIVE TRIM button on the ERC or a VesselView display to
turn off the feature.
This Quick Reference Guide is intended to be used in concert with
your engine Operation and Maintenance Manual. Your engine
Operation and Maintenance Manual provides information on this
subject matter in greater detail.
To download or purchase a printed Operation and Maintenance
Manual for your engine, visit MercuryMarine.com.
90-8M0208793 SEPTEMBER 2022
©2022 Mercury Marine. All Rights Reserved.
DI GI TA L T HROT T LE & SH IF T

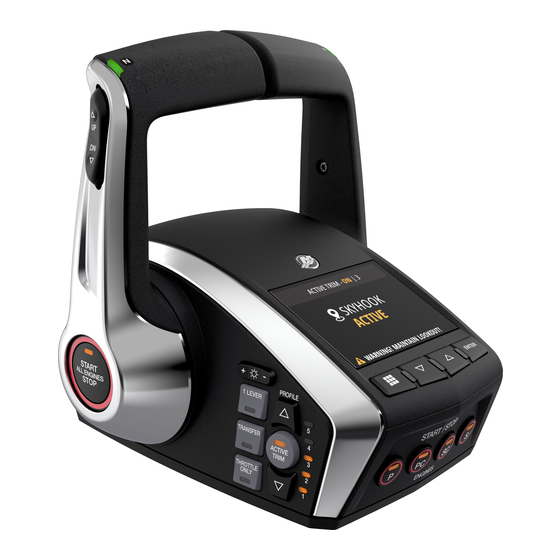

Premier
Dual Handle ERC
FO R 2 - 4 ENG IN E A PP LICAT I O N S
Q U I C K R E F E R E N C E
A. NEUTRAL (N) LED
Illuminates when the engines are
in the neutral gear position.
A
B. TRIM ALL ENGINES
Raises and lowers all engines/drives.
C. START/STOP ALL ENGINES
B Starts or stops all the engines
sequentially from port to starboard.
D. START/STOP INDIVIDUAL ENGINES
Starts or stops an individual engine.
E. DISPLAY SCREEN
Shows pop-ups for advanced features as
well as system information and faults.
G
E
H
C
I
K
J
F. TRIM
INDIVIDUAL ENGINES
Raises and lowers individual
engine/drive.
G. BRIGHTNESS
Increases and decreases
brightness of lights on the ERC
and Mercury helm components.
H. 1 LEVER
Enables throttle and shift
functions of all engines to be
controlled by the port lever.
I. TRANSFER
Transfer boat control to a
different helm.
F
D
J. THROTTLE ONLY
Increase engine RPM
without shifting into gear.
K. ACTIVE TRIM
Turns the Active Trim
feature ON or OFF.
K. PROFILE ▲ / ▼
Changes the selected
Active Trim profile.
K. 1 / 2 / 3 / 4 / 5 LEDs
Indicates current
Active Trim profile.
