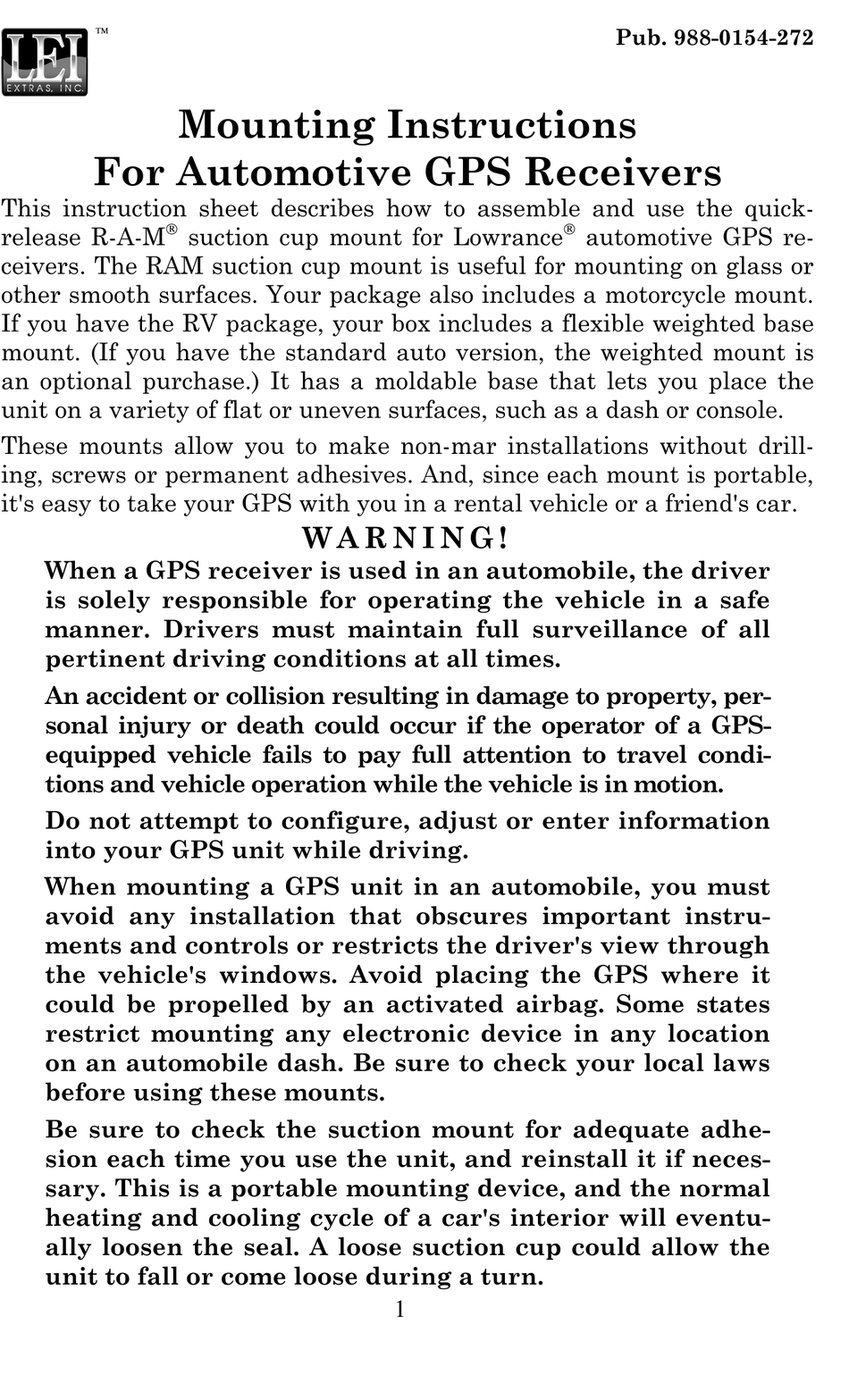

For Automotive GPS Receivers
This instruction sheet describes how to assemble and use the quick-
release R-A-M
ceivers. The RAM suction cup mount is useful for mounting on glass or
other smooth surfaces. Your package also includes a motorcycle mount.
If you have the RV package, your box includes a flexible weighted base
mount. (If you have the standard auto version, the weighted mount is
an optional purchase.) It has a moldable base that lets you place the
unit on a variety of flat or uneven surfaces, such as a dash or console.
These mounts allow you to make non-mar installations without drill-
ing, screws or permanent adhesives. And, since each mount is portable,
it's easy to take your GPS with you in a rental vehicle or a friend's car.
When a GPS receiver is used in an automobile, the driver
is solely responsible for operating the vehicle in a safe
manner. Drivers must maintain full surveillance of all
pertinent driving conditions at all times.
An accident or collision resulting in damage to property, per-
sonal injury or death could occur if the operator of a GPS-
equipped vehicle fails to pay full attention to travel condi-
tions and vehicle operation while the vehicle is in motion.
Do not attempt to configure, adjust or enter information
into your GPS unit while driving.
When mounting a GPS unit in an automobile, you must
avoid any installation that obscures important instru-
ments and controls or restricts the driver's view through
the vehicle's windows. Avoid placing the GPS where it
could be propelled by an activated airbag. Some states
restrict mounting any electronic device in any location
on an automobile dash. Be sure to check your local laws
before using these mounts.
Be sure to check the suction mount for adequate adhe-
sion each time you use the unit, and reinstall it if neces-
sary. This is a portable mounting device, and the normal
heating and cooling cycle of a car's interior will eventu-
ally loosen the seal. A loose suction cup could allow the
unit to fall or come loose during a turn.

Mounting Instructions

suction cup mount for Lowrance
W A R N I N G !
1
Pub. 988-0154-272
automotive GPS re-

Advertisement

loading

Related Manuals for Lowrance iWAY 500C

Summary of Contents for Lowrance iWAY 500C

  • Page 1: Mounting Instructions

    These mounts allow you to make non-mar installations without drill- ing, screws or permanent adhesives. And, since each mount is portable, it's easy to take your GPS with you in a rental vehicle or a friend's car. When a GPS receiver is used in an automobile, the driver is solely responsible for operating the vehicle in a safe manner.
  • Page 2 Mounting accessories packed with an iWAY 500c GPS receiver. Installing the RAM Suction Mount The suction cup mount is designed to secure the GPS as it or the socket arm rests on another surface. It is not designed to hold the unit sus- pended by the suction cup alone.
  • Page 3 RAM suction cup base on windshield. Attach the socket arm and quick release plate to the base. Loosen the socket arm nut so you can position the arm and plate to accept the GPS receiver, then tighten the nut to hold the arm steady.
  • Page 4 3. …push unit up and back so it snaps into position. 1. Lift up slightly to raise mounting plate… 2. …engage bottom… Steps for attaching unit to mount. To dismount the unit, pull the quick release tab toward the front of the unit.
  • Page 5 60º to 90º F. iWAY 500c centered on a dashboard. This photo was taken at passen- ger eye level. Notice how the unit was placed so that it does not ob- struct the view of the road ahead through the windshield.
  • Page 6 5 p.m. Eastern Standard Time, M-F. If you live outside the U.S. and Canada, you should contact the dealer in the country where you pur- chased your unit. To locate a dealer near you, visit the Lowrance web site, www.lowrance.com, and look for the Dealer Locator.
