Summary of Contents for MEANReal 5R

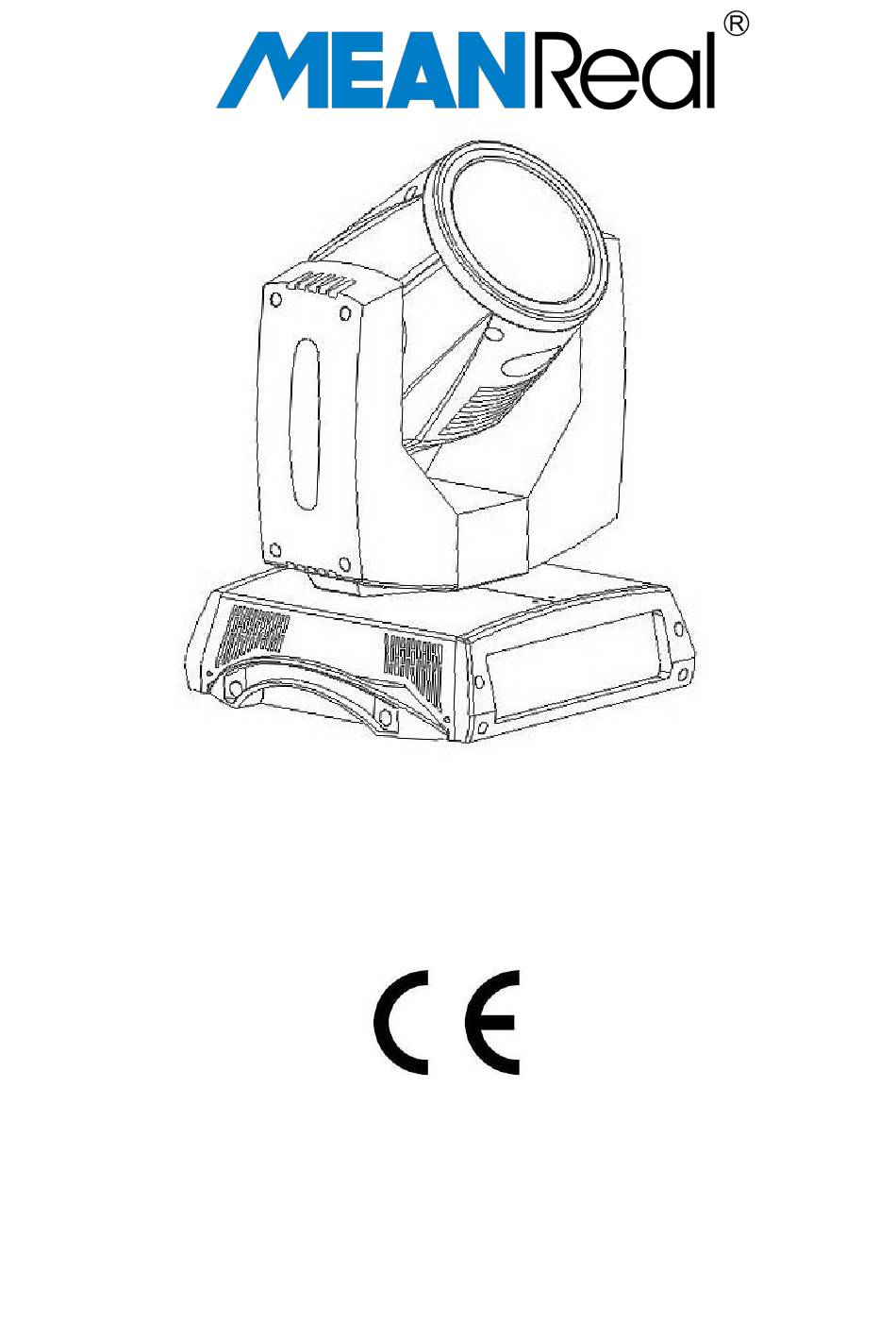

- Page 1 USER MANUAL 5R/7R BEAM KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction…………………………..………………………………………4 2. General Guidelines…………….……………………………………………4 3. Safety Instructions…………………………………………………………..5 4. Installation Instructions……………………………………………………..6 5. Cleaning and Maintenance…………………………………………………7 6. Technical Parameters…………………..………………………………….. 8 7. Gobo&Color……………………………………………………………….….9 8. Menu Function………………………………………………………….…..10 9. Circuit Schematics…………………………………………………..……..11 10. DMX Channels……………………………………………………..…..…..12 11. Remark………………………………………………………………………...15... -
Page 4: Introduction
Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly. -
Page 5: Safety Instructions
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation. -
Page 6: Installation Instructions
The electric connection must carry out by qualified person. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. -
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE 1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. 2. Do not spill water or other liquids into or on to your unit. 3. During long periods of non-use, disconnect the unit’s main power. 4. -
Page 8: Technical Parameters
LAMP SOURCE Discharge lamp with a short arc burner in a reflector system - Type: Optional YODN MSD Platinum R5 200W/R7 230W Philips UHP 189W/ Philips MSD Platinum 5R 189W Osram Siruis HRI 230W - Output Lamp power: 200W/230W - Color temperature: 8,500 K... -
Page 9: Gobo&Color
ELECTRONICS Function reset from the lighting desk ON/OFF lamp control from the lighting desk "AUTOTEST" function from menu Electronic monitoring with status error SAFETY DEVICES Bipolar circuit breaker with thermal protection. Automatic break in power supply in case of overheating or failed operation of cooling system. -
Page 10: Menu Function
MENU FUNCTION... -
Page 11: Circuit Schematics
CIRCUIT SCHEMATICS... -
Page 12: Dmx Channels
DMX CHANNELS CHANNEL STANDARD(16CH) VECTOR(20CH) Color Wheel Color Wheel Stop/Strobe Stop/Strobe Dimmer Dimmer Static Gobo Change Static Gobo Change Prism Insertion Prism Insertion Prism rotation Prism rotation Function Function Frost Frost Focus Focus Pan Fine Pan fine Tilt Tilt Tilt Fine Tilt fine Pan/Tilt Speed Pan/Tilt Speed... - Page 13 077-081 Meganta 082-085 Magenta+Cyan 086-089 Cyan 090-093 Cyan+cto260 094-097 Cto260 098-102 Cto260+cto190 103-106 Cto190 107-110 Cto190+ctb8000 111-115 Ctb8000 116-119 Ctb8000+blue 120-123 Blue 124-127 Blue+White 128-255 Slow to fast rotation 000-003 Closed 004-103 Slow to strobe(1-12flash/sec) 104-107 Open 108-207 Slow to fast pulsation Stop/strobe 208-212 Open...
-
Page 14: Remark
Prism 000-127 Prism excluded insertion 128-255 Prism inserted 000-020 Position 0° 021-041 Position 90° 042-062 Position 180° 063-083 Position 270° Prism 084-104 Position 360° rotation 105-126 Position 450° Position 540° 128-190 Fast to slow rotation 191-192 Stop 193-255 Slow to fast rotation 000-100 unused Function... - Page 16 GUANGZHOU MEANREAL LIGHTING LIMITED ADD:NO.6 XINHE AVE.HUASHAN TN.HUADU DIST.GUANGZHOU,CHINA TEL:+8613560334367 EMAIL:INFO@MEANREAL.COM WEB:WWW.MEANREAL.COM...
