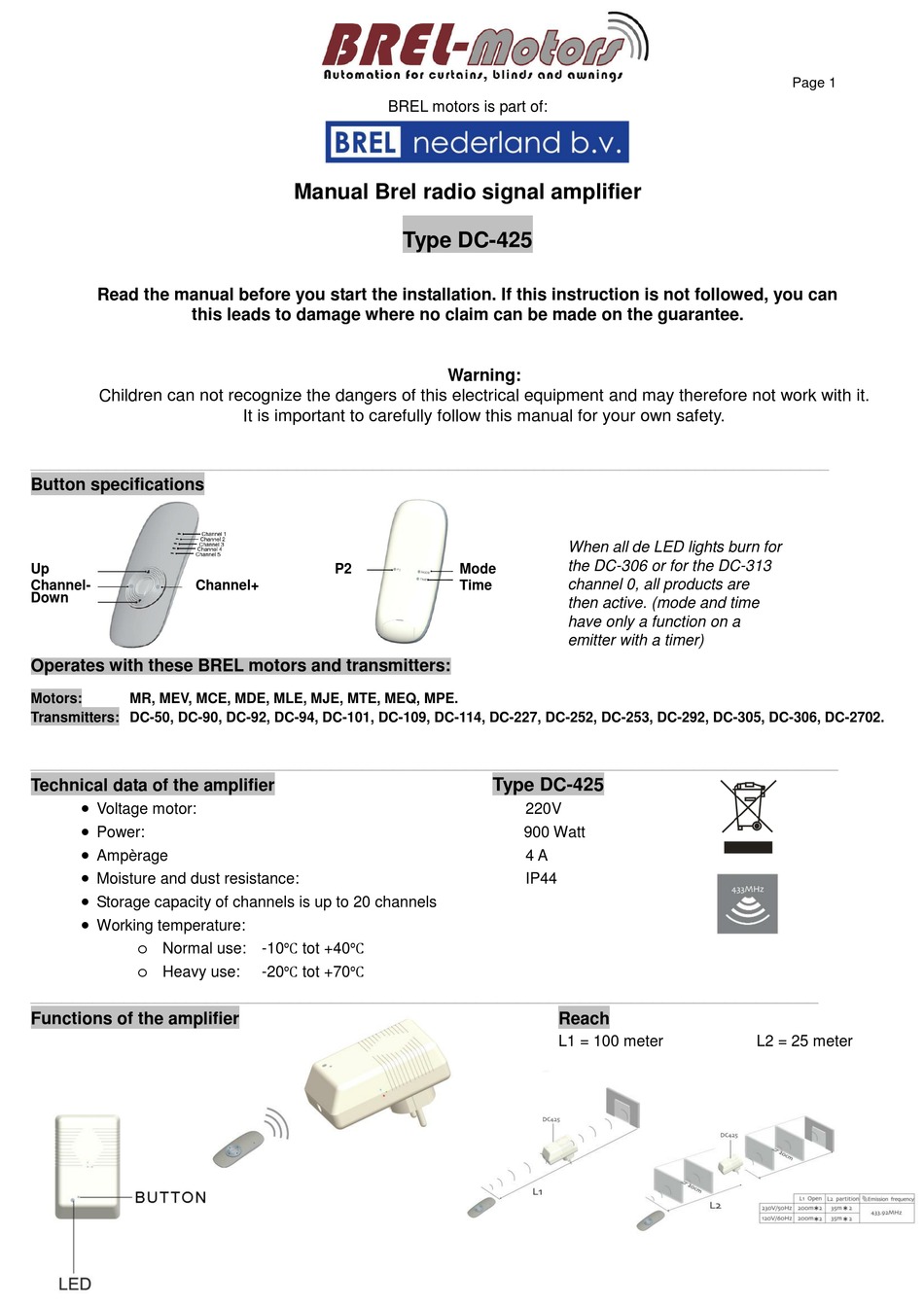

BREL -motors DC-425 Manual

Read the manual before you start the installation. If this instruction is not followed, you can
this leads to damage where no claim can be made on the guarantee.
Children can not recognize the dangers of this electrical equipment and may therefore not work with it.
____________________________________________________________________________________

Button specifications

Up
Channel- Channel+
Down
Operates with these BREL motors and transmitters:
Motors: MR, MEV, MCE, MDE, MLE, MJE, MTE, MEQ, MPE.
Transmitters: DC-50, DC-90, DC-92, DC-94, DC-101, DC-109, DC-114, DC-227, DC-252, DC-253, DC-292, DC-305, DC-306, DC-2702.
______________________________________________________________________________

Technical data of the amplifier


Voltage motor:

Power:

Ampèrage

Moisture and dust resistance:

Storage capacity of channels is up to 20 channels

Working temperature:
o
Normal use: -10℃ tot +40℃
o
Heavy use:
____________________________________________________________________________

Functions of the amplifier

BREL motors is part of:

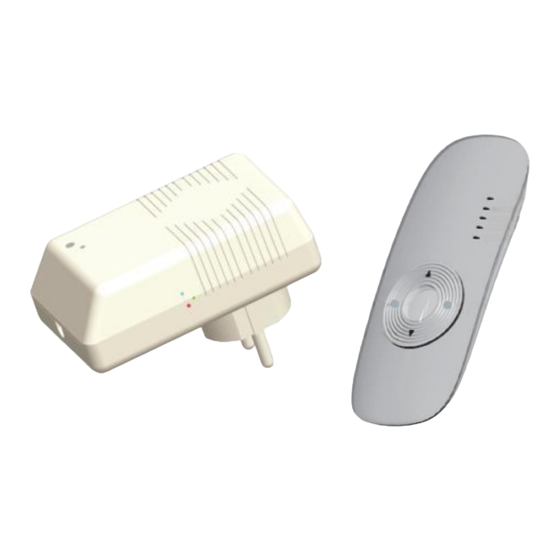

Manual Brel radio signal amplifier
Type DC-425
It is important to carefully follow this manual for your own safety.
P2
-20℃ tot +70℃
Warning:
When all de LED lights burn for
the DC-306 or for the DC-313
Mode
channel 0, all products are
Time
then active. (mode and time
have only a function on a
emitter with a timer)
Type DC-425
220V
900 Watt
4 A
IP44
Reach
L1 = 100 meter
Page 1
L2 = 25 meter
