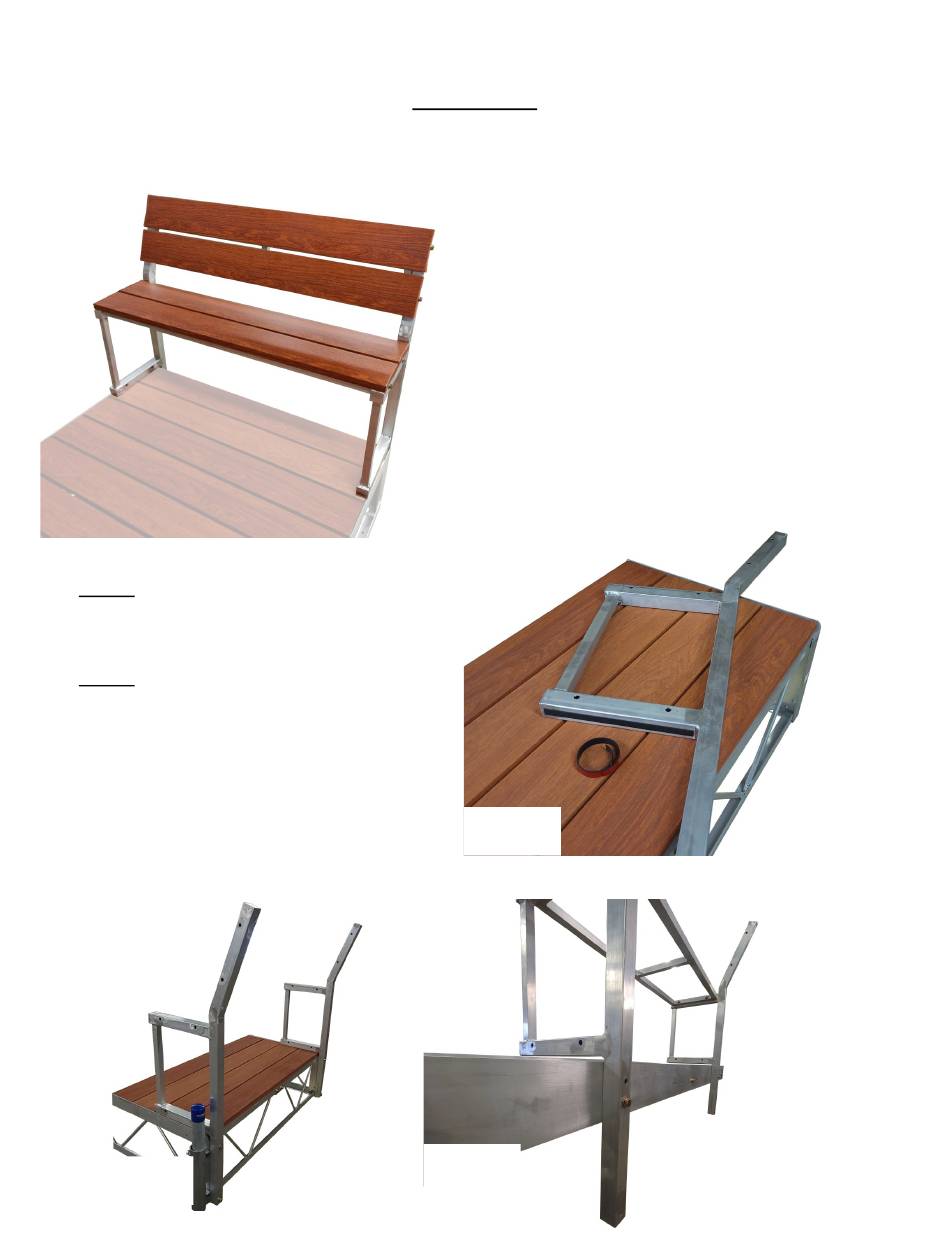

Step 1: Attach 11" Adhesive Insulator on the
bottom of Bench Upright, where the Upright
Frame will make contact with Decking. See
Fig. 1.
Step 2:
The Bench Kit is made to directly mount on
the 4' end of any Patriot Dock Truss Frame
(PN10800) Fig.2. If using on the 8' Side Rail
some drilling may be required. With decking
in place attach upright to the Patriot Dock
Frame using (4) M10x70mm Bolt/nuts. When
mounting onto Patriot Docks Low-Pro Frame
(PN10835) Fig.3, mount to 8' side rail using (2)
M10x90mm Bolt/nut included.
Truss Frame Mounting
Fig. 2

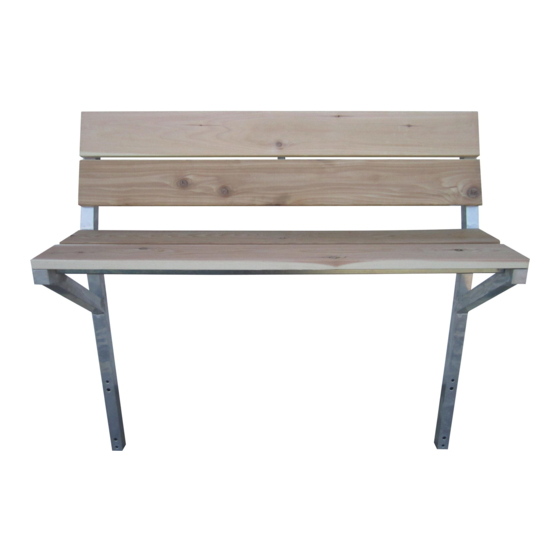

Patriot Docks
Bench Kit Assembly Instructions
PN 10832, 10833, 10837, 10936
Required Tools: Phillips driver, 14mm and 17mm
wrench and/or socket
Parts List:
(2) Aluminum Uprights
(2) Aluminum Bench Supports
Aluminum, Cedar or Poly Bench covering
(2) 11" Adhesive Insulator
Hardware:
(8) M10x100mm Bolts/Nut
(4) M10x70 Bolts/Nut (Truss Frame Mounting)
(2) M10x90 Bolts/Nut (Low-Pro Mounting)
(12)#6 x 1-1/2" Phillips head Screws
(Cedar and Poly Only)
Fig. 1
Fig. 3
Low-Pro Mounting
