ThermoSphere SmartHome Hub Quick Start Manual

CONTROL | TOUCH |

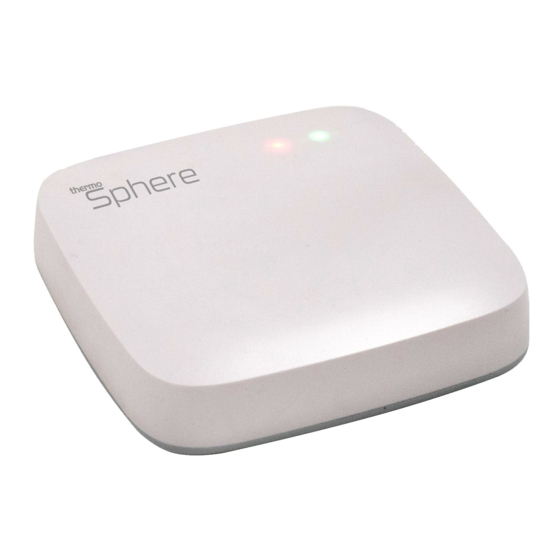

Get to know your Thermosphere SmartHome Hub
Red Power LED
On - Hub has power
Off - Hub has no power
Green Network LED
Flashing - Connection in progress
On - Network established
Off - No connection
Reset button
Hold for 5 seconds, until the green light stays on, to connect the
Hub with your router.

Technical data

Power supply
Operating power
Ambient temperature
Compatible controls
Warranty
Protection rating
Width x height
Wireless
Range
Max no. of connections
Max no. of hubs per app
hello@thermosphere.com
SMARTHOME HUB

Status LEDs

Reset button
Network port
USB port
5V DC
<0.37A
5 ~ 50°C
5220Z 5226Z
3 years
IP30
95 x 95 x 22mm
Zigbee Mesh
20m open field (approx)
100+ units
10
0800 019 5899
INSTRUCTIONS

Hub installation

1. Plug the network cable into an open port on your router.
2. Plug the other end of the network cable into the network port
on the hub.
3. Plug the USB cable into the USB port on the hub.
4. Plug the other end of the USB into the power adaptor and into
a 230V mains socket.
5. Press and hold the reset button for 5 seconds.
6. The red LED on the hub will flash and both LEDs will stay
on after a few seconds to indicate a successful connection
between the hub, your router and the ThermoSphere server.
If the connection fails, unplug the hub and start again. You can
also reset the hub by holding the reset button for 5 seconds.

Pairing the hub with your app

1. Download and install the ThermoSphere app on your mobile
device.
2. Connect your mobile device to the same wireless network that
your hub is plugged into.
3. Register an account with your email or mobile phone number.
4. Click 'Add Home' and select any rooms that you wish to add.
5. Click '+' in the top right corner and select 'Zigbee Gateway'.
6. Make sure the Hub LEDs are on and click 'Confirm...' button.
7. When the app shows 'Smart Gateway' click 'CONNECT'.
8. Rename the Hub if you wish to and click 'Done'.
9. Click 'Add new child device' to add a SmartHome Control.
10. With the SmartHome Control is on, press and hold the 'Up'
and 'Down' arrows until the red Zigbee symbol flashes.
11. After a successful connection you can rename your
SmartHome Control and add it to a room. Click 'Done'.
12. Repeat steps 9 to 11 for additional SmartHome Controls.
Excellence in heating
SHH-01
solutions.
