Y
i

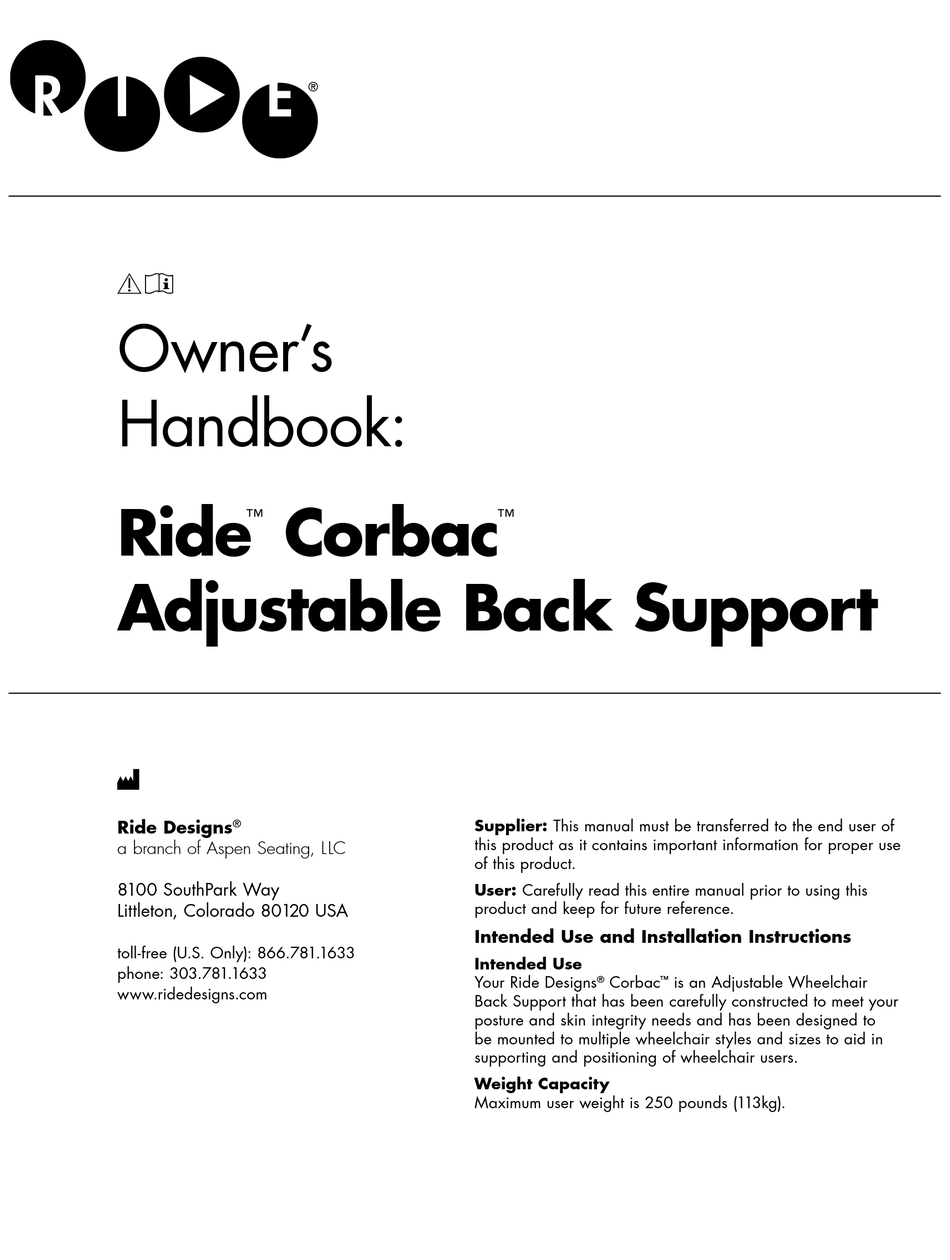

Owner's
Handbook:
Ride
Corbac
™
Adjustable Back Support
M
Ride Designs
®
a branch of Aspen Seating, LLC
8100 SouthPark Way
Littleton, Colorado 80120 USA
toll-free (U.S. Only): 866.781.1633
phone: 303.781.1633
www.ridedesigns.com
™
Supplier: This manual must be transferred to the end user of
this product as it contains important information for proper use
of this product.
User: Carefully read this entire manual prior to using this
product and keep for future reference.
Intended Use and Installation Instructions
Intended Use
Your Ride Designs
Corbac
®
Back Support that has been carefully constructed to meet your
posture and skin integrity needs and has been designed to
be mounted to multiple wheelchair styles and sizes to aid in
supporting and positioning of wheelchair users.
Weight Capacity
Maximum user weight is 250 pounds (113kg).
is an Adjustable Wheelchair
™
Advertisement
Table of Contents
Related Manuals for Ride Corbac
Summary of Contents for Ride Corbac
- Page 1 Littleton, Colorado 80120 USA Intended Use and Installation Instructions toll-free (U.S. Only): 866.781.1633 Intended Use phone: 303.781.1633 Your Ride Designs Corbac is an Adjustable Wheelchair ® ™ www.ridedesigns.com Back Support that has been carefully constructed to meet your...
- Page 2 WARNING: All Ride Designs support surfaces are designed to help reduce the incidence of pressure sores. However, no back support can completely eliminate sitting pressure or prevent pressure sores. The Ride Corbac is not a substitute for good skin care including proper diet, cleanliness, and regular pressure relief techniques.
- Page 3 Slide Corbac adjustable mount cane pockets over the wheelchair back canes. (You may need to slightly loosen the adjustable mount straps.) Failure to use the back cane pockets can result in the Corbac sliding down the back canes resulting in injury to user.
- Page 4 (Illustration 3). 2. Determine the cane diameter at the location where the top of the Corbac height will be positioned. 3. Use the following clamps for your cane diameter: 1"...
- Page 5 Install Corbac over existing sling back upholstery 1. Leave existing sling back upholstery in place on wheelchair. 2. Install the Corbac adjustable mount. a. Remove the Corbac adjustable mount from the cardboard packaging. Do not unfold. b. Locate the large pocket underneath the adjustment straps.
- Page 6 ™ Initial wearing schedule Prior to prolonged sitting, it is advisable to use your Ride Corbac for a short period of time and visually check any area that contacts the back support. Any reddened area should fade within 10-30 minutes. Contact your doctor or therapist if redness persists for greater than 30 minutes.
- Page 7 For people at higher risk for skin breakdown, and/or more challenging postural control needs, the Ride Custom Cushion is the ultimate in postural support and skin care. It is specifically contoured to support a person’s unique size, shape, posture and functional requirements.
- Page 8 Ride Corbac Adjustable Back Support Owner’s Handbook ™ ™ Installation Notes Patents: www.ridedesigns.com/patents © 2015, Ride Designs. 090-005-B MDSS GmbH Schiffgraben 41 30175 Hannover, Germany www.ridedesigns.com...
