Towelrads SMART 43D Installation & User Manual

TOWELRADS
Electronic control for towel radiators

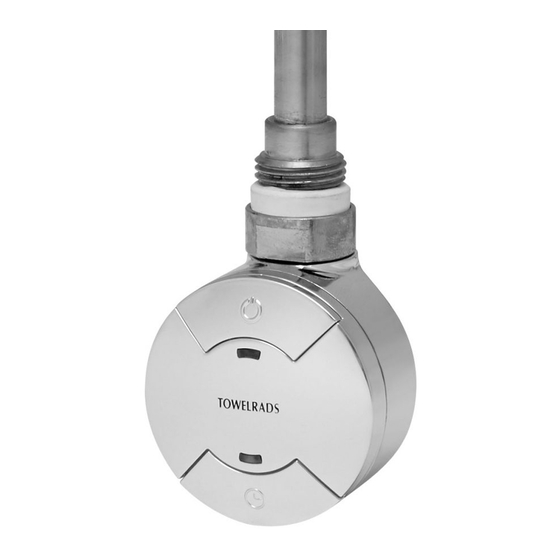

SMART 43D is an electronic control for towel
radiators.
There are ten different types of available
resistances: from 100W to 1000W.
Operational modes: Continuous-Heating,
Stand-by, Boost, Timer12, Timer24.
•"Continuous-Heating":
activates the heating element and remains
active until the user decides to set the device to
"Stand-by" mode, the maximum temperature
available is 43°C.
•"Boost" mode:
heating element at the maximum power for two
hours. At the end of the two hours, the control
goes back to "Stand-by" mode.
•"Timer12" and "Timer 24" mode:
electronic control activates the "Boost" function
for two hours. At the end of the two hours the
control reverts to "Stand-by" mode for either 10
or 22 hours (the user has the option to preset it),
after which the thermostat repeats the
function for two hours. This sequence is
repeated cyclically.
•"Stand-by" mode:
the device sets to stand-by, the heating element
is then deactivated.
SMART 43D is a certified product:
SMART 43D complies to the following directives:
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W)
-EN 60335-1:2012+A11:2014 -EN 60335-2-30:2009+A11:2012
-EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011 -EN 55014-2:1997+A1:2001+A2:2008
Towelrads Lrd. Towelrads Lrd.
Unit 4 e 5, Maidenhead Trade Park, Priors Way, Unit 4 e 5, Maidenhead Trade Park, Priors Way,
"SMART 43D"
the electronic control
the thermostat feeds the
by activating this function,
Maidenhead, Berkshire SL6 2GQ tel. 01628 659 520 Maidenhead, Berkshire SL6 2GQ tel.
the
"Boost"
Aveilable color: White.
TOWELRADS
Chrome.
.
Release 3 - August 2015
wwww.towelrads.com wwww.towelrads.com
01628 659 520
EN
