EXTERNAL CONNECTIONS & LED INDICATORS

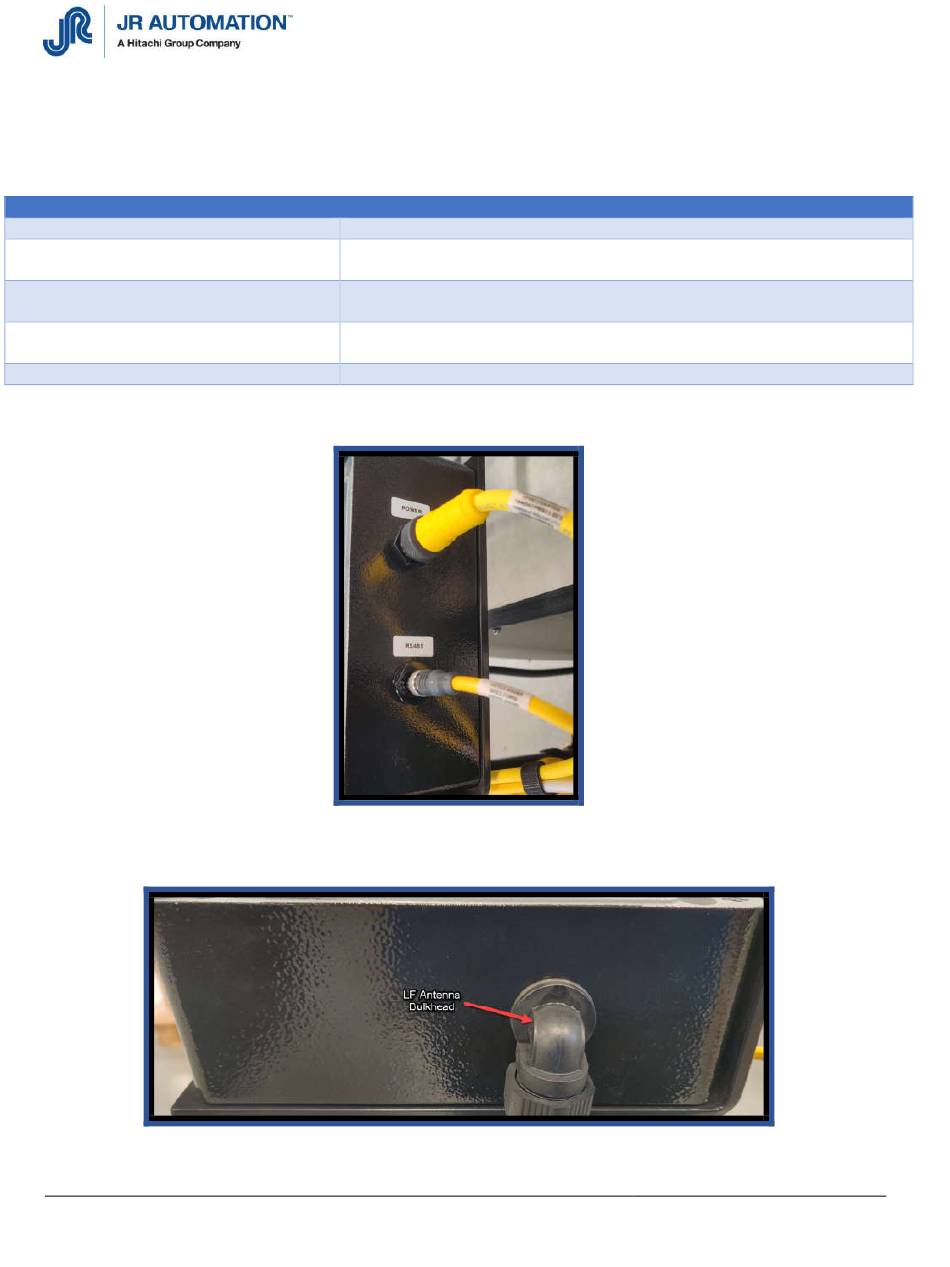

The antenna box has 5 external connections. Please see the table & pictures below:
Connection Description
Power
RS485
Antenna 1
Antenna 2
LF Antenna Bulkhead
Continuous Antenna User Manual - Canada
Prelim 1
Function
Provide 24 VDC power to antenna system
Provide RS485 Communication to the antenna from a system
controller (provided by System Integrator)
Connection for a 315MHz or 433 MHz receiver antenna. Connected to
receiver 1
Connection for a 315MHz or 433 MHz receiver antenna. Connected to
receiver 2
Provides conduit connection for LF transmission antenna coil wiring
Power & RS485 Connection
LF Antenna Bulkhead
