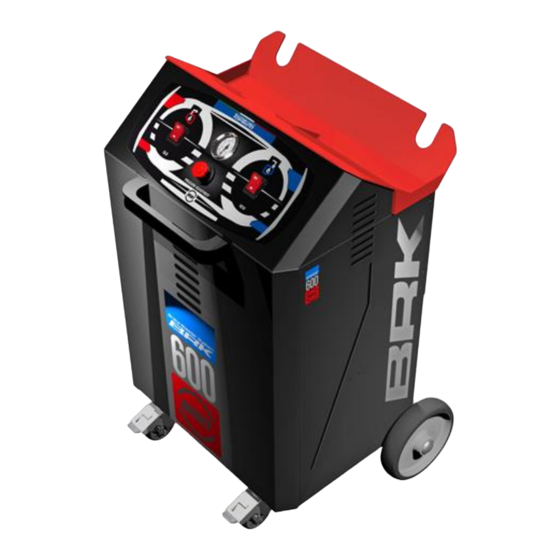

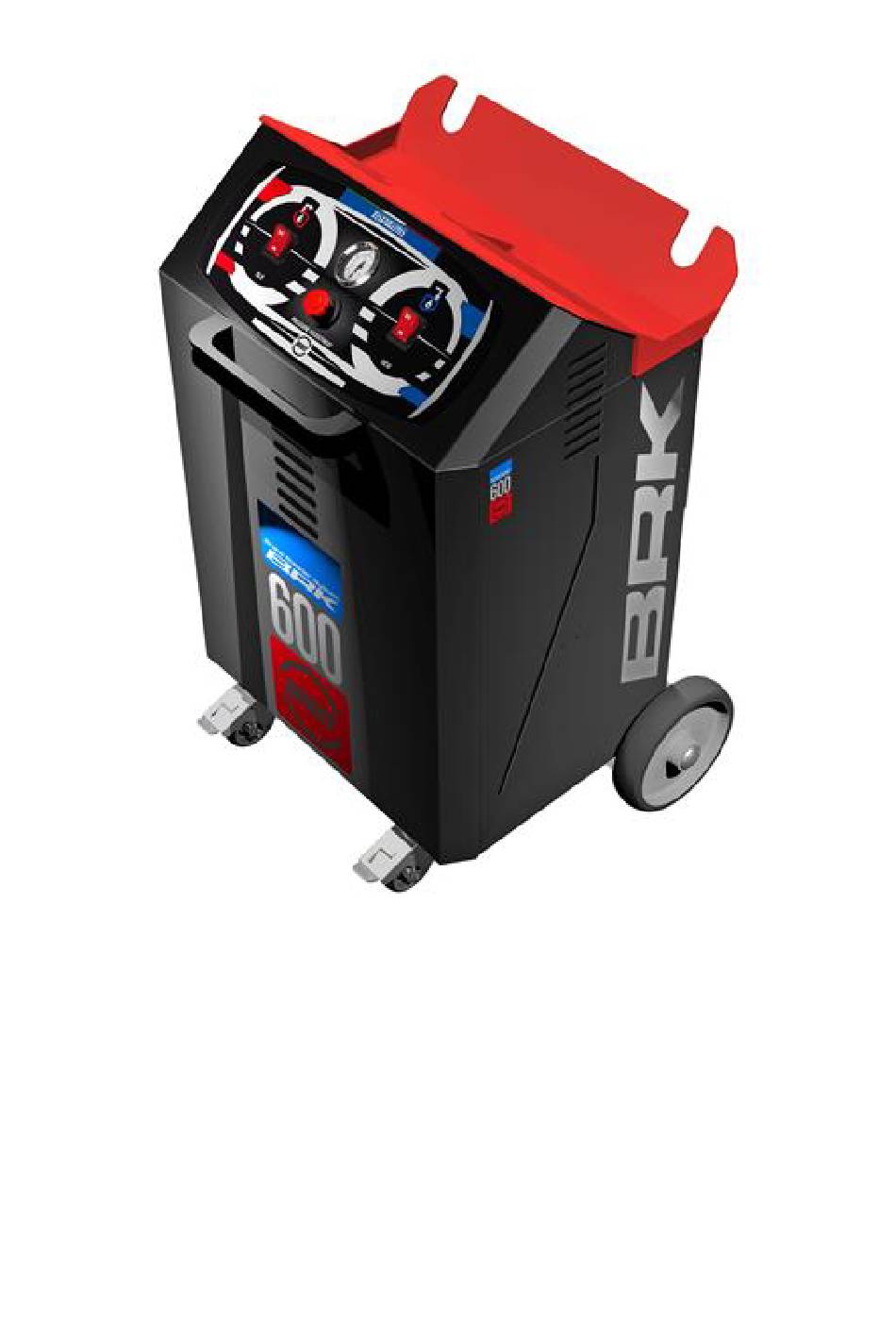

- Page 1 USER MANUAL MAINTENANCE AND SPARE PARTS BRAKE BLEEDER BRK600...
- Page 2 USER MANUAL, MAINTENANCE AND SPARE PARTS Rev. 01-2020 PAGE. 2 BRK600...
-
Page 3: Table Of Contents
5.1 DELIVERY AND CONTROL ........................13 5.2 MACHINE SETUP ........................... 13 6 MACHINE USE ..........................14 6.1 PROBLEMS AND REMEDIES ........................17 7 MAINTENANCE ..........................18 7.1 NATURE AND FREQUENCY OF CHECKS AND MAINTENANCE ..............18 Rev. 01-2020 PAGE. 3 BRK600... - Page 4 9 SPARE PARTS ..........................19 9.1 GENERAL INSTRUCTIONS ........................19 9.2 SPARE PARTS REQUEST FORM ....................... 19 9.3 SPARE PARTS LIST..........................20 10 ELECTRICAL DIAGRAM ........................23 11 HYDRAULIC DIAGRAM ........................24 12 SERVICE-PROGRAM ........................25 Rev. 01-2020 PAGE. 4 BRK600...
-
Page 5: Introduction
Rev. 01-2020 PAGE. 5 BRK600... -
Page 6: Symbology
- risks to operator’s safety - declination of responsibility by the manufacturing company. 2 GENERAL INFORMATION 2.1 MANUFACTURER IDENTIFICATION DATA Top Auto S.r.l. Viale del Lavoro 40, 37030 Colognola ai colli – Italy tel. +39 0456170025 - fax. +39 6152493 info@topauto-equipment.com www.topauto-equipment.com 2.2 MACHINE IDENTIFICATION DATA... -
Page 7: General Safety Rules
Check frequently that the two filters on the device are not obstructed. Use only the liquids recommended by the manufacturer. Failure to comply with each of the above safety rules results in the decay of any form of warranty on the machine. Rev. 01-2020 PAGE. 7 BRK600... -
Page 8: Brake Fluids - Personal Protective Equipment And Precautions
Big leak non-combustible absorbent material, such as sand, soil, vermiculite, diatomite and dispose of the product in a container in accordance with the current legislation. Dispose of waste through an au- thorized company for waste disposal. Rev. 01-2020 PAGE. 8 BRK600... -
Page 9: Warranty
Modifications or tampering carried out by the user or carried out by third parties, without specific approval by the manufac- turing company. Use of non-original spare parts. 2.7 DURATION OF WARRANTY For warranty terms, reference is made to what is contractually agreed. Rev. 01-2020 PAGE. 9 BRK600... -
Page 10: Machine Description
11 – Clamp for extraction pipe at rest 5 – CHARGING PUMP ON / OFF button 12 – Extracted exhausted fluid tank 6 – Connection for the charging pipe 13 – Tank 7 – Handling wheels 14 – Space for accessories briefcase Rev. 01-2020 PAGE. 10 BRK600... -
Page 11: Technical Specifications
Extraction pump power 30 W (1 l/min) Charging pump power 30 W (1 l/min) Charging/extraction pipe length 7,5 m Power supply 230/50-60 Volt/Hz Machine size 67x54x90H cm Pack size Unladen weight Noise < 70 dB (A) Rev. 01-2020 PAGE. 11 BRK600... -
Page 12: Operation And Use
The dismantling of the protective casings and the consequent access inside the machine is provided only for maintenance and cleaning operations. Rev. 01-2020 PAGE. 12 BRK600... -
Page 13: Installation
Connect the spiral charging pipe with the T-coupling to the right connector of the machine 2) Connection of the extraction pipe Connect the spiral extraction pipe with the filter to the left connector of the machine Rev. 01-2020 PAGE. 13 BRK600... -
Page 14: Machine Use
Insert the extraction pipe into the pan and press the ON button to start the pump and extract all the exhausted liquid. Stop the pump by pressing the OFF button when you start extracting air. Rev. 01-2020 PAGE. 14 BRK600... - Page 15 Identify the specific adapter and connect it to the pan making sure it is fixed correctly to avoid leakage during subse- quent operations. Connect the charging pipe to the adapter and press the ON button to start charging the new liquid. Through the pressure regulator set the working pressure (usually 1.5 – 2 bar) Rev. 01-2020 PAGE. 15 BRK600...
- Page 16 Bleeding is considered finished when new liquid comes out BLEEDING VALVE from the transparent pipe. Then close the bleeding valve and Piston switch to the next brake caliper. Carry out the bleeding operation on all 4 brake calipers. Brake pad Disk Rev. 01-2020 PAGE. 16 BRK600...
-
Page 17: Problems And Remedies
Clean the filter on the extraction pipe Check the correct operation of the non-return valve The pump starts but extracts very slowly Check that there is no narrowing on the pipes inside the ma- chine Problems with the new liquid charge Rev. 01-2020 PAGE. 17 BRK600... -
Page 18: Maintenance
The law provides for sanctions for those who release WEEE into the environment. WEEE, if released into the environment or misused, can release substances that are dangerous to the environ- ment itself and to human health. Rev. 01-2020 PAGE. 18 BRK600... -
Page 19: Spare Parts
The following is a list of the individual pieces, the number corresponding to the position occupied in the attached drawings, the code and the description. Orders (which must be sent by fax or e-mail) must be addressed to: Top Auto S.r.l. – Italy Viale dell'Artigianato 4, 37042- Caldiero (VR) tel. -
Page 20: Spare Parts List
USER MANUAL, MAINTENANCE AND SPARE PARTS 9.3 SPARE PARTS LIST Rev. 01-2020 PAGE. 20 BRK600... - Page 21 USER MANUAL, MAINTENANCE AND SPARE PARTS DETAIL Rev. 01-2020 PAGE. 21 BRK600...
- Page 22 Dado_M3 NUT M3 UNI 5588 DADOM12_UNI7473 SELF-BRAKING NUT M12 IN 7473 DADOM4_UNI7473 NUT M4 UNI 7473 DADOM5_UNI7473 NUT M5 UNI 7473 INGOMBRO Y - BRK600 T-ASSEMBLED INT-0-1-PRES SWITCH 0/1 + PLUG MAN-235 BLACK HANDLE MANOMETRO__SP-MGX13 MGX13-Series Pressure Gauge POMPA Serie 22000...
-
Page 23: Electrical Diagram
USER MANUAL, MAINTENANCE AND SPARE PARTS 10 ELECTRICAL DIAGRAM POLYSNAP MODULE ON/OFF SWITCH ON/OFF SWITCH EXTRACTION CHARGING PUMP PUMP Rev. 01-2020 PAGE. 23 BRK600... -
Page 24: Hydraulic Diagram
USER MANUAL, MAINTENANCE AND SPARE PARTS 11 HYDRAULIC DIAGRAM CAPTION: Symbol Description Description Symbol Pressure gauge for Filter reading pressure Washable filter EXTRACTION PUMP CHARGING PUMP Bleeding valve Non-return valve New liquid tank Exhausted liquid Pressure regulator tank Rapid coupling Rev. 01-2020 PAGE. 24 BRK600... -
Page 25: Service-Program
DATE :……………......Work carried out: …………………………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………………………….. DATE :……………......Work carried out: …………………………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………………………….. DATE :……………......Work carried out: …………………………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………………………….. DATE :……………......Work carried out: …………………………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………………………….. DATE :……………......Work carried out: …………………………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………………………….. Rev. 01-2020 PAGE. 25 BRK600... - Page 26 DECLARATION OF CONFORMITY KONFORMITÄTSERKLÄRUNG DÉCLARATION DE CONFORMITÉ DECLARACIÓN DE CONFORMIDAD Top Auto S.r.l. Viale dell'Artigianato 4 – 37042 Caldiero (VR) - Italy Telephone 045/6170025 Fax 045/6152493 (Manufacturing company in which the Technical Dossier is created and stored) DECLARES UNDER ITS OWN RESPONSIBILITY THAT THE NEW MACHINE:...
