Summary of Contents for Edin Univox AT-100

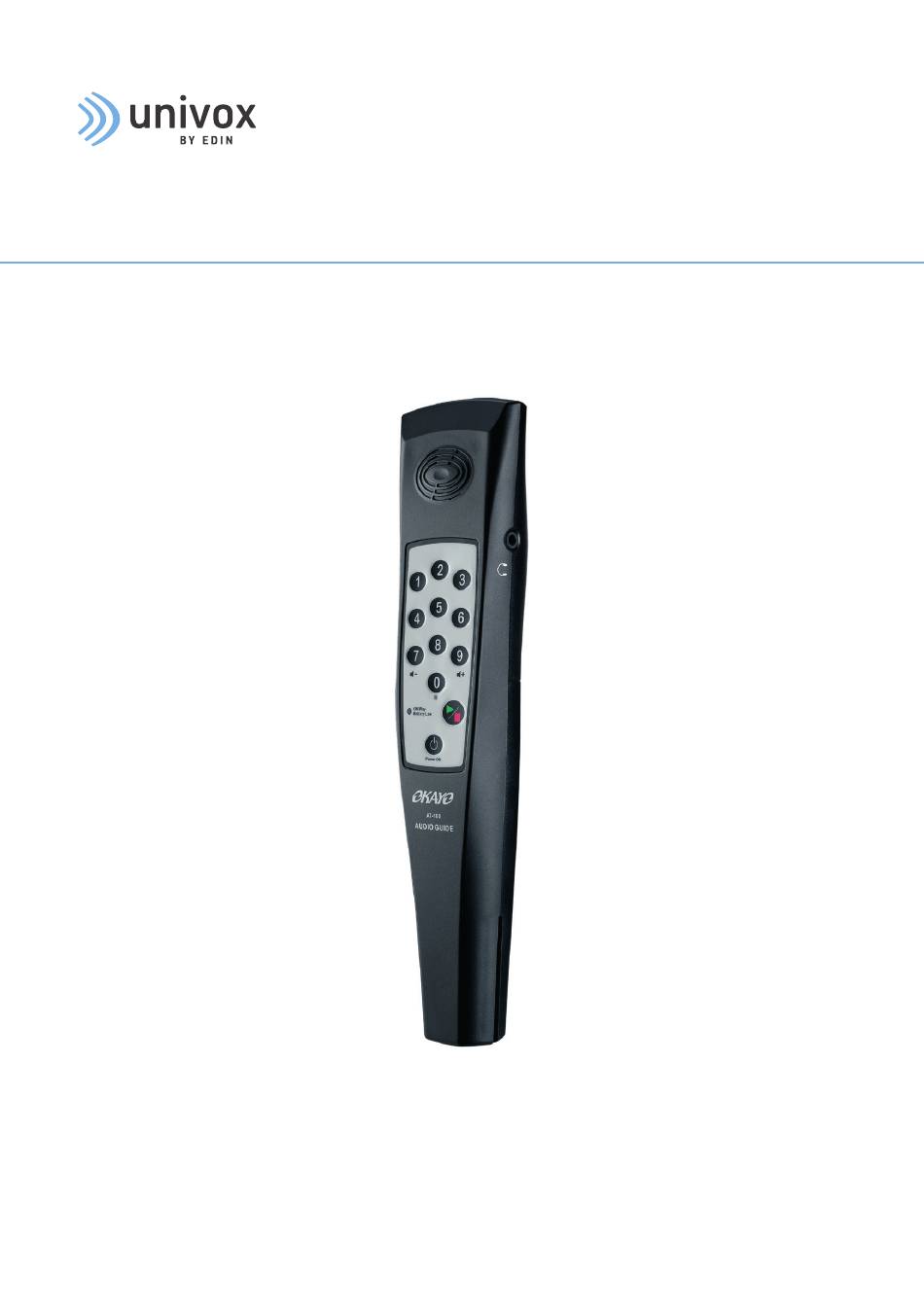

- Page 1 AT-100 Audio Guide System User Guide Part no. 590100...
- Page 2 Contents Introduction ............................... 3 Included in the package ......................... 3 Product overview ............................4 Operating instructions ..........................5 Programming AT-100 ..........................6 Troubleshooting ............................6 Maintenance .............................. 7 Warranty ..............................7 Safety ................................7 Environment .............................. 7 Technical data ............................8...
- Page 3 Introduction Okayo AT-100 is an easy to use and affordable audio guide system. It comes in a robust housing and provides comfortable handling. AT-100 lets you provide audio guides to your visitors without need for major investments or complicated installations. Sound is stored in the guide unit and provides excellent sound thanks to its high resolution mp3 and the dynamic speaker.
- Page 4 Product overview Built-in speaker PLAY and PAUSE External headphone jack (3.5 mm 2x stereo) ON/OFF LED, battery LED Number pad 0-9 (total 1-950 tracks) POWER/STOP-button Volume control (number 7 and 9) Charging jack for battery charging station Next track (number 0)
- Page 5 Operating Instructions Language options • To set language playback, put AT-100 into compatible charger (ATC100/ATC100U) and press PLAY/PAUSE (6) until the POWER LED (7) indicates green • 32 language folders are available, with code numbers from 951 to 982 • With the unit in standby mode, enter desired language folder code and press the PLAY/PAUSE button (6) to implement.
- Page 6 Programming Programming AT-100 requires the Audio Guide Updater ATC-110U (part no 590111). Please see separate ATC-110U manual for complete description. Programming AT-100 1. Turn the AT-100 off (8) 2. Plug in the ATC-110U and turn it on, switched to ”UPDATE MODE” 3.
- Page 7 In case of failure, if the product should not work properly after the troubleshooting has been performed, please contact your local distributor for further instructions. Refer all servicing to qualified service personnel only. If the product is sent to Bo Edin AB, please enclose a filled Service Form, www.univox.eu/support.
- Page 8 Battery life Approx. 10 h (rechargeable) or 16 h (alkaline) Size 59 x 28 x 235 mm (2.3 x 1.1 x 9.5 in) (Univox) Bo Edin AB +46 (0)8 767 18 18 Stockby Hantverksby 3, info@edin.se SE-181 75 Lidingö, Sweden www.univox.eu...
