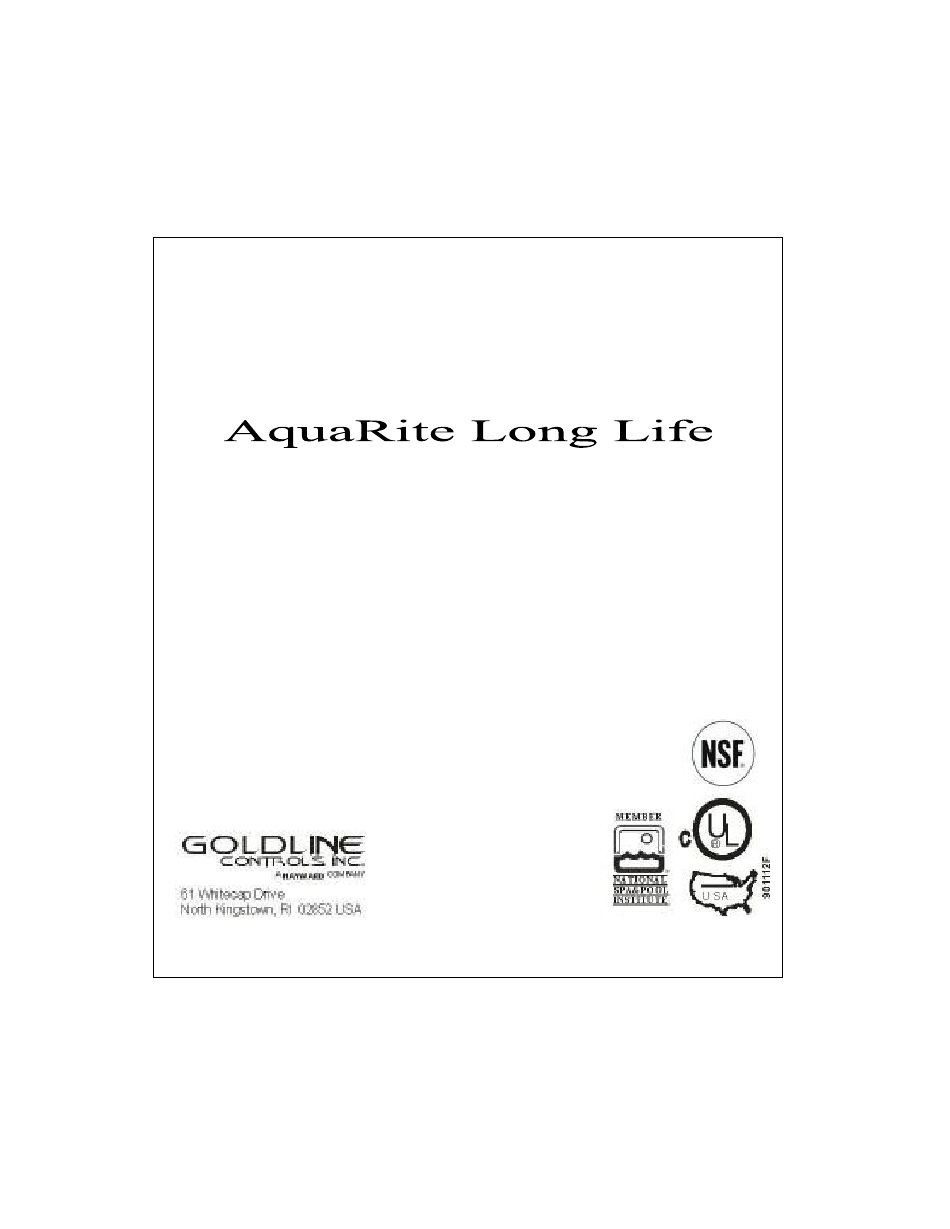

- Page 1 2019-2660 2019-10-16 Part No. AQR940 Electrolytic Chlorine Generator DOMESTIC READ THE LABEL AND MANUAL BEFORE USING REGISTRATION NUMBER 28325.5 PEST CONTROLS PRODUCT ACT...
- Page 2 AquaRite Long Life ELECTROLYTIC CHLORINE GENERATOR CELL DOMESTIC REGISTRATION NUMBER 28325.5 PEST CONTROLS PRODUCTS ACT Replacement cell for the AquaRite Long Life This cell must only be used on this model of chlorine generating device. Read the label, the Installation and Operation Manual of the AquaRite Long Life Electrolytic Chlorine Generator before using.
- Page 3 .The AquaRite Long Life Electrolytic Chlorine Generator protects itself against this condition via the FLO sensor by cutting off the power to the AquaRite Long Life Electrolytic Chlorine Generator cell whenever flow is not detected. The AquaRite Long Life Electrolytic Chlorine Generator MUST be wired to the same circuit as the filter pump.
- Page 4 3 Electrolytic Chlorine Generator cell is clean it may be at the end of it’s life and needs to seconds to turn off flashing indicator. Inspect AquaRite Long Life Electrolytic Chlorine Generator cell every 3 months/clean if necessary...
- Page 5 AquaRite Long Life Electrolytic Chlorine Generator Goldline Controls Inc., A Hayward Company CONTROLS BACTERIA AND ALGAE in Residential Swimming Pools and Spas DOMESTIC READ THE LABEL AND MANUAL BEFORE USING REGISTRATION NUMBER 28325.5 PEST CONTROL PRODUCTS ACT Goldline Controls, Inc.
- Page 6 COMPLETE SPA DRAINAGE is equal to the volume of spa water in litres, divided by 10 times the maximum number of daily spa users. Refill spa with water and repeat the DIRECTIONS FOR USE of the AquaRite Long Life Electrolytic Chlorine Generator.
-
Page 7: Table Of Contents
Table of Contents OPERATION General ........................1 Water Chemistry ......................1 Controls ........................6 Maintenance....................... 8 INSTALLATION Mounting ........................9 Plumbing ........................10 Wiring .......................... 11 TROUBLESHOOTING Troubleshooting ....................... 14 WARRANTY Warranty ........................16... -
Page 8: Water Chemistry
A Maximum of 95,000 Litres (25,000 Gallons) of water can be treated with one AquaRite Long Life Electrolytic Chlorine Generator unit. The operation requires a low concentration of salt (sodium chloride) in the pool water. - Page 9 Saturation index The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water "balance". Your water is properly balanced if the Si is 0 ±.2.If the Si is below -0.2, the water is corrosive and plaster pool walls will be dissolved into the water.
- Page 10 (gallons) in the pool and add salt according to the chart on page 4. A low salt level will reduce the efficiency of the AquaRite Long Life Electrolytic Chlorine Generator and result in low chlorine production. A high salt level can cause the AquaRite Long Life Electrolytic Chlorine Generator to shutdown and may begin to give a salty taste to your pool (generally, the salt will begin to be tasted at a level of about 3.5-4.0 g/l (3500-4000 ppm)).
- Page 11 {Diagram}...
- Page 12 {Diagram}...
-
Page 13: Controls
SUPER CHLORINATE Illuminates during super-chlorination. See description above. REMOTELY CONTROLLED When illuminated, indicates that a remote pool automation control (Goldline Aqua Logic, Pentair Intellitouch, Polaris Eos, etc.) is controlling the AquaRite Long Life Electrolytic Chlorine Generator --the main switch and "Desired Output %"... - Page 14 Generator has stopped producing chlorine. Inspect, clean or replace if necessary.
- Page 15 Jandy AquaLink RS. The Intellitouch and Eos can fully control the function of the AquaRite Long Life Electrolytic Chlorine Generator chlorinator in addition to the other pool equipment. The "Remote Control" LED on the...
- Page 16 When replacing the AquaRite Long Life Electrolytic Chlorine Generator cell, only use replacement cells having a label that clearly states that it is a replacement cell for the AquaRite Long Life Electrolytic Chlorine Generator, REGISTRATION NUMBER 28325, PEST CONTROL PRODUCTS ACT.
- Page 17 Spring Start-up DO NOT turn the AquaRite Long Life Electrolytic Chlorine Generator on, until the pool water chemistry has been brought to the proper levels. This information can be found on page 1.
-
Page 18: Installation
Generator. NOTE: If the pool does not have new water, add 1 liter (1 quart) of metal remover and 1 liter (1 quart) of non-copper based algaecide to the pool, per manufacturer’s instructions. This ensures a quick, trouble free transfer to the AquaRite Long Life Electrolytic Chlorine Generator system. -
Page 19: Plumbing
Plumbing Ensure that the AquaRite Long Life Electrolytic Chlorine Generator installation does not constitute a cross connection with the local potable water supply. Consult local plumbing codes. AquaRite Long Life Electrolytic Chlorine Generator flow switch and cell should be plumbed in the return line to the pool/spa. -
Page 20: Wiring
A lug used for bonding is attached to the bottom of the AquaRite Long Life Electrolytic Chlorine Generator enclosure (see diagram below). The AquaRite Long Life Electrolytic Chlorine Generator must be bonded with a 6 AWG copper wire (8 AWG USA) to the pool bonding system. - Page 21 Input Power for use with Pentair and Polaris controls: Wire the AquaRite Long Life Electrolytic Chlorine Generator DIRECTLY to 120/240VAC power (not through timer or relay). {Diagram} Optional Pentair and Polaris controls: The Pentair and Polaris controls use a 4 wire connection to communicate to the...
- Page 22 Polaris - Attach wires to proper screw terminals as shown below. Note that screw terminal "1" is marked on the Polaris PCB. {Diagram}...
-
Page 23: Troubleshooting
Installing Company or Dealer Salt level Diagnostic Displays Sequential pushes of the small "diagnostic" button next to the LCD display will cause AquaRite Long Life Electrolytic Chlorine Generator to display the following information: Pool temperature (xx degrees Fahrenheit or Celsius) Cell voltage (typically 22.0 to 25.0 volts when chlorine is being generated, otherwise 30-35V) - Page 24 Continue until the salt concentration is at recommended levels. "Inspect Cell" LED flashing Inspect and clean AquaRite Long Life Electrolytic Chlorine Generator cell according to directions on page 8. When done, press the "diagnostic" button for 3 seconds to stop the "Inspect Cell"...
- Page 25 If the defective product is returned freight prepaid to Goldline more than three (3) years but within five (5) years of the date of the initial system installation, Goldline, at its option, will either repair or replace the defective product and will charge sixty percent (60%) of the current list price for such repairs or replacements, plus shipping charges.
- Page 26 {Diagram} Goldline Controls, Inc., A Hayward Company N. Kingstown, RI 02852 USA 888-921-POOL (7665) 092009 Copyright © 2004 Goldline Controls, Inc...
