Installation Instructions
Storm Keypad
Part Codes: ST-DX1KT20
ST-DX2KW20
Introduction
The ST-DX1KT20 (Metal Vandal Resistant) and ST-DX2KW20 (Polymer Robust
Design) are keypads for use with any Controlsoft® Access Control Unit (ACU). An
internal buzzer and a bi-colour LED indicate status to make the keypad very easy to
use.
The keypad is designed to be suitable for both internal and external use.

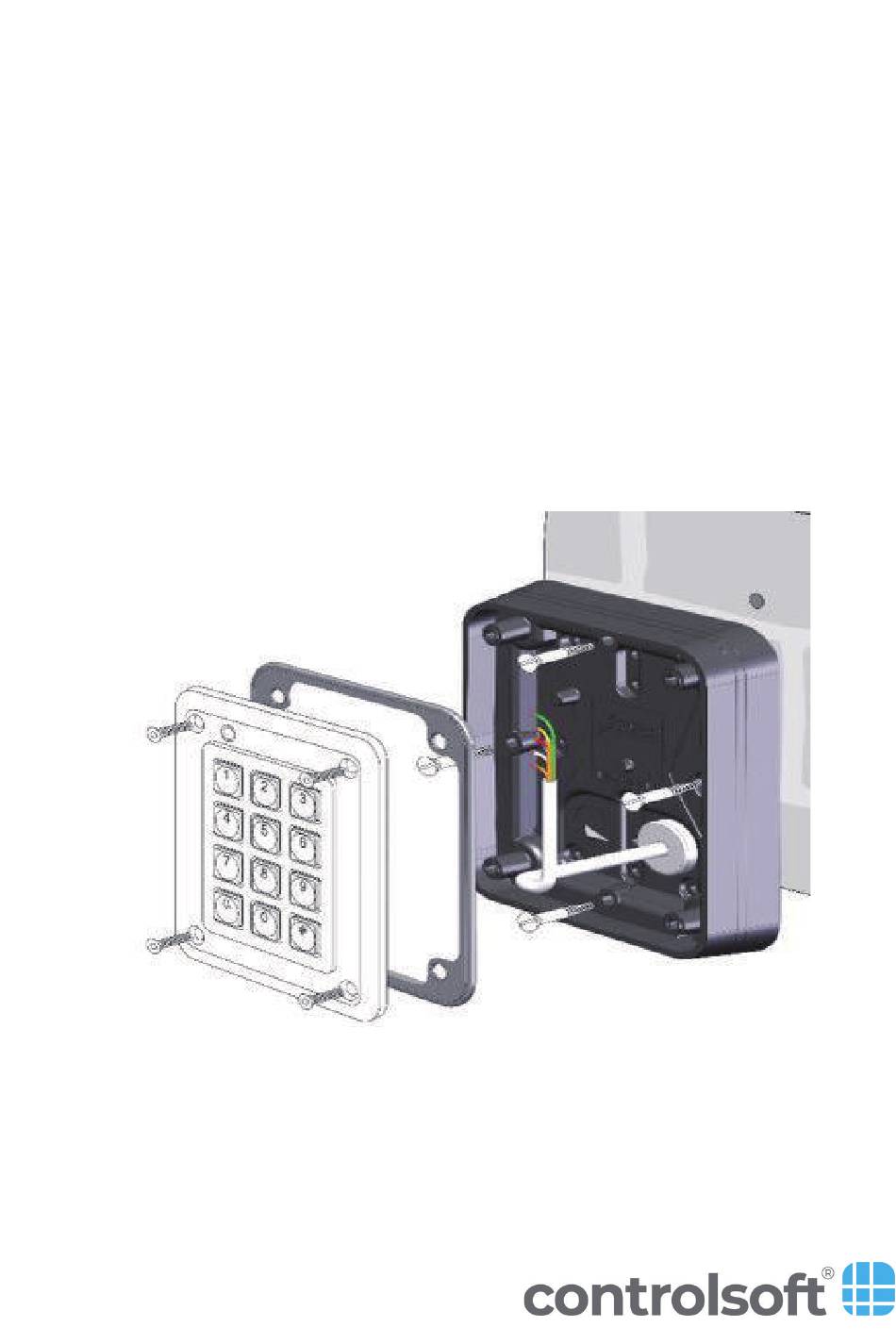

Step 1: Prepare the installation
Using the case as a template, mark the four mounting holes and the cable entry hole.
Drill the wall and plug if required. Run the cable through the sealing grommet, and fix
to the wall using the screws provided.
9010-0054 Issue 1
www.controlsoft.com
Advertisement
Table of Contents
Summary of Contents for Controlsoft Storm ST-DX1KT20
- Page 1 ST-DX2KW20 Introduction The ST-DX1KT20 (Metal Vandal Resistant) and ST-DX2KW20 (Polymer Robust Design) are keypads for use with any Controlsoft® Access Control Unit (ACU). An internal buzzer and a bi-colour LED indicate status to make the keypad very easy to use.
- Page 2 10K resistor between ‘+12V’ and ‘D1’. Ensure that the resistor leads in ‘D0’ and ‘D1’ do not short together or to the casing. Wiring diagrams for Controlsoft ACUs are shown below: Note: For maximum protection against EMC, RFI, or damage from Electro Static Discharge (ESD) it is recommended that the keypad casing is earthed (grounded) via the screw terminal attached to the metal shield on the rear face of the keypad.
- Page 3 Programming the Keypad Step 3: Programming the Keypad To change the programming, set the “Run / Prg” switch on the rear of the keypad to the “Prg” position. The LED on the keypad will start to flash red, press #725 and the LED will change to green.
- Page 4 (the keypad sees 004, 0004 and 00004 as the same PIN) Caution: The “crossed out wheeled bin” logo on Controlsoft products indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health, please separate this product from other waste streams.
