Introduction:
This guide contains introductory setup and configuration information. It contains limited detail and is
intended for use only by qualified technicians who possess prior knowledge of GPRS and HSRS setup and
operation. If you are unfamiliar with these devices, you are strongly advised to consult the
full user manual for complete details. You may view and/or print the manual via the following
website link:
http://www.kadtronix.com/downloads/gprs_user_man3.pdf
Information in this guide is applicable to the Kadtronix family of smart relay controllers. Applicable
devices include the following models:
· General Purpose Relay Switch (GPRS)
· HVAC Smart Relay Switch (HSRS)
These controllers provide sensor-activated remote control capability for devices and equipment. Onboard
relay with SPDT contacts provides switching for loads up to 10A @250VAC. Wired and/or wireless
sensors may be employed.
WARNING: Only a qualified technician should attempt to perform the setup and installation
instructions contained in this guide. Your warranty may be voided if damage occurs due
to improper installation.
Configuration Settings:
There are two sets of configuration DIP switches (labelled DSW1 & DSW2) which must be properly
configured before use. Recommended switch settings will vary depending on the application as there are
literally thousands of possible settings combinations. Two common default settings are listed below. The
first allows for both wired and wireless sensor operation. The second supports only wireless sensors,
disabling wired sensor operation. (Both settings define immediate trigger activation and de-activation
time periods.)
DSW1:
---------------
1 2 3 4 5 6 7 8
---------------
Both:
0 0 0 0 0 0 0 0
Wireless:
0 0 0 0 1 0 0 1
Note: An indicated '0' digit means the specified DIP switch is "off". A '1' digit means the switch is
"on".
GPRS & HSRS Smart Controllers
Mini-Guide
Kenneth Delahoussaye Consulting
web: www.kadtronix.com
email: kadtronix@att.net
DSW2:
---------------
1 2 3 4 5 6 7 8
---------------
0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0
05/08/22 (rev. GEN3-I)
[All switches OFF]
Advertisement
Table of Contents
Related Manuals for Kadtronix KD-DS-5800-MINI
Summary of Contents for Kadtronix KD-DS-5800-MINI
- Page 1 You may view and/or print the manual via the following website link: http://www.kadtronix.com/downloads/gprs_user_man3.pdf Information in this guide is applicable to the Kadtronix family of smart relay controllers. Applicable devices include the following models: · General Purpose Relay Switch (GPRS) ·...
- Page 2 Customer equipment may also be subjected to blown fuses and/or tripped circuit breaker. 4) If you encounter any issues during or after the install, please contact Kadtronix technical support (321-757-9280) for on-site assistance. Please do not return the product without authorization - proper troubleshooting and/or problem resolution may be impossible once the unit has been removed from service.
- Page 3 Sample Wiring - HVAC Shutoff (with wired door/window switches) 3 of 7...
- Page 4 Applying Wireless Sensor to a Metal Door or Patio Door: Wireless door sensor operation can be adversely affected when affixed to a metal door or metal-frame opening such as a patio door. Prior to mounting the unit, the sensor may operate flawlessly. But once applied to the metal surface, there may be little, if any, detected signal at the controller / receiver.

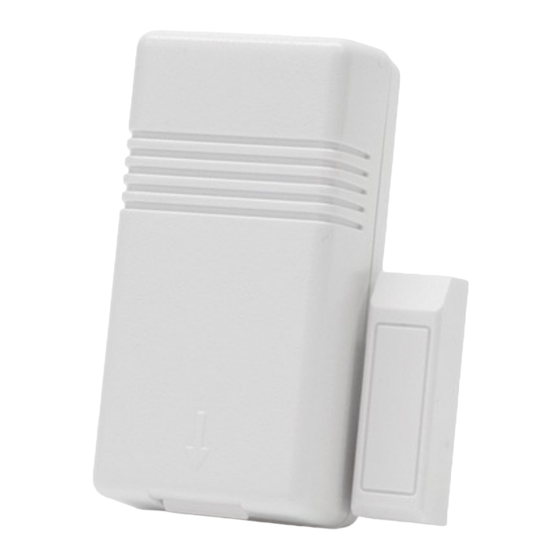

- Page 5 Wireless (Mini) Sensor: The KD-DS-5800-MINI wireless door/window sensor is powered by a single CR2032 battery (included). The device emits RF message signals when the corresponding door or window is opened or closed. Additionally, it is suitable for concurrent use with compatible Honeywell security systems featuring 345 MHz alarm panels.
- Page 6 HSRS controller.) For details including features, special considerations, and specifications, refer to the following resource: https://www.kadtronix.com/downloads/d5816_cut.pdf IMPORTANT: This device features wired contact screw terminals for optional external wired switch (N/C) or closed contact loop. Unless you plan to utilize this input, it must be disabled to avoid inadvertent trigger at the HSRS controller.
- Page 7 Register / Pair Wireless RF Sensors: All wireless door/window sensors & motion detectors must be properly registered (paired) at the controller. · Detach HSRS controller lid by removing the 4 retaining screws. · Locate the “Register” button. · Press/hold the button until the unit beeps, then release. ·...
