Summary of Contents for Aegis DataCell D

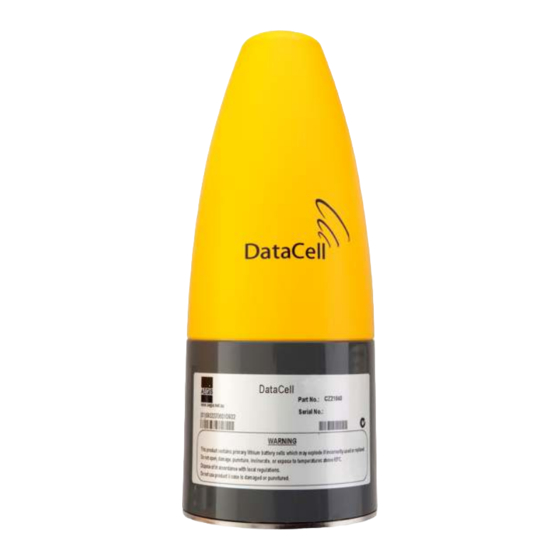

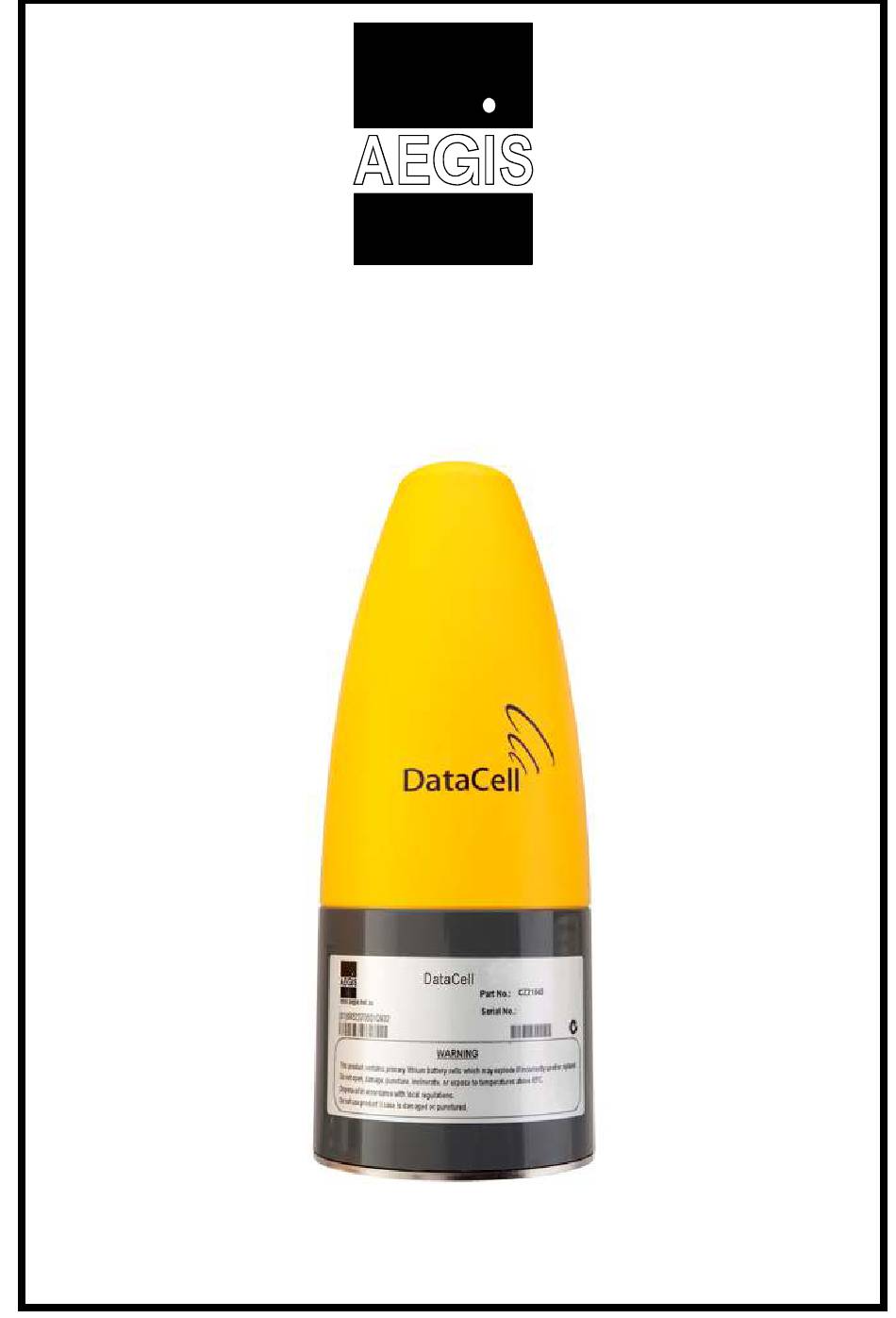

- Page 1 INSTRUCTION MANUAL DataCell D...
- Page 2 • Do not use this product if it is damaged in any way. Aegis Pty Ltd can also supply many instruments for a number of applications to support installation and maintenance of cabling for the telecommunications, Data and Electrical industries.
-
Page 3: Table Of Contents
2.1. Mounting ......................4 2.2. Bottom Panel Layout ..................4 2.3. Input connections....................5 WORKING WITH A DATACELL D ..............6 3.1. Exiting Hibernation.................... 6 3.2. Waking the DataCell D ..................6 3.3. Communicating with a DataCell D ..............7 3.4. -
Page 4: Introduction
1. INTRODUCTION The DataCell D has been designed to give you reliable and accurate data logging of metering and industrial processes in all environments. Commissioning and data collection is done locally via the DataCell’s optical port using the Infrared Cable (IRC) and a notebook PC. -
Page 5: Input Connections
2.3. Input connections There are four sockets on the bottom of the DataCell D. These are the inputs for the DataCell data logger to connect to various sensors. Three inputs will have a cap covering the input sockets to protect them from damage when not in use, see fig 2.2. -
Page 6: Working With A Datacell D
3.2. Waking the DataCell D Once the DataCell D has exited Hibernation it can be woken by using the swipe magnet as follows:- Using the Swipe Magnet from the IRC Starter Kit, swipe the magnet over the side of the unit directly in line with the IRC port using a downward swiping action, see fig 3.2.1. -
Page 7: Communicating With A Datacell D
To communicate with the DataCell D you must use the Connect software suite. Configuration changes may only be made locally via the Infrared cable. All information and instructions regarding the configuration, set up and data collection of the DataCell D can be found in the Connect User Guide which is available online at www.datacell.co. -
Page 8: Specifications
5. SPECIFICATIONS 5.1. Inputs Up to 4 unpowered floating Voltage free inputs. Short cable mode: - Max input cable length 4 metres Long cable mode: - Max input cable length 10 metres 5.2. Communications Serial: Infrared interface 5.3. Logging Memory: 2 million records Alarms: Low or Zero usage in a period... -
Page 9: Standard Accessories
5.8. Standard Accessories Accessory Part No Bracket CZ21269 Screws M4X20 PAN HD XR S/S M12 Male Inline Plug CZ21512 Cap M12 CZ21511 5.9. Optional Accessories Accessory Part No IRC Starter Kit USB CZ21036 M12 Male Inline Plug CZ21512 Cap M12 CZ21511 Page 9 of 12 CZ21554-01... -
Page 10: Other Products In The Datacell Range
6. OTHER PRODUCTS IN THE DATACELL RANGE DataCell Atx The top of the range DataCell Atx provides monitoring and recording of analogue and digital signals. Equipped with 4 fully programmable inputs and two-way GSM/GPRS communications the highly flexible DataCell Atx is the cornerstone of any remote monitoring and reporting application. - Page 11 NOTES:- Page 11 of 12 CZ21554-01...
- Page 12 Aegis Pty Ltd 200 Rooks Road, Vermont, Victoria 3133 AUSTRALIA International Prefix +613 Email: sales@aegis.net.au WEB: www.aegis.net.au WEB: www.datacell.co Page 12 of 12 CZ21554-01...
