Summary of Contents for Houseper GMB-HAS-SW1-B02

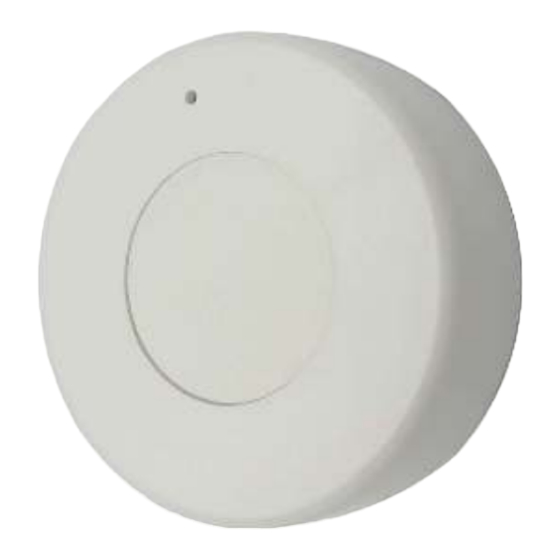

- Page 1 Smart control button Model Logical devices GMB-HAS-SW1-B02 1 x Light sensor and switch GMB-HAS-SW2-B02 2 x Light sensor and switch GMB-HAS-SW3-B02 3 x Light sensor and switch GMB-HAS-SW4-B02 4 x Light sensor and switch User Guide version 2.0...
- Page 2 Technical specification Network ZigBee 3.0 Frequency 2.4 GHz Coverage 100m (open area) Network extender Operating temperature -10℃ ~ +85℃ Operating humidity ≤95%RH Dimensions d – 40 mm, h - 13 mm Weight ≤ 15 g Material Power supply DC 3.0V Battery type 1xCR2032 Battery lifetime...
- Page 3 Control Sequentially press the button from 1 to a maximum of 4 times, but not more than the number of logical devices. The number of presses refers to a corresponding logical device, which will send a single "Toggle" command to all devices configured for control (bound) of this logical device.
- Page 4 cover. Put the back cover back, making sure the stopper fits into the slot provided for it and turn it clockwise. For fixing, use the double sided sticky pad included in the package. Initial power on On power up, the device will check if it has a configured ZigBee network and: a.
- Page 5 If a wrong or invalid command is entered, the red LED will blink 1 time SLOWLY. If the device is not part of a ZigBee network and you execute a command related to a ZigBee network, the red LED indicator will blink 2 times SLOWLY, indicating that the command cannot be executed.
- Page 6 4. Follow the binding instructions of the device you want to control with the button. It must be part of the same ZigBee network. Alternatively: When both devices you want to bind are part of a Houseper system, binding can be done via the Houseper app.
- Page 7 If the device is unlocked, it will lock. The green LED indicator will blink 3 times SLOWLY, indicating that the device is now locked and no reconfiguration commands can be executed. B. Unlock If the device is locked (and not blocked), the green LED indicator will remain off, waiting for a PIN/PUK code to be entered.
