Summary of Contents for PG BISON OFFICE FURNITURE BLUM FLATPAX

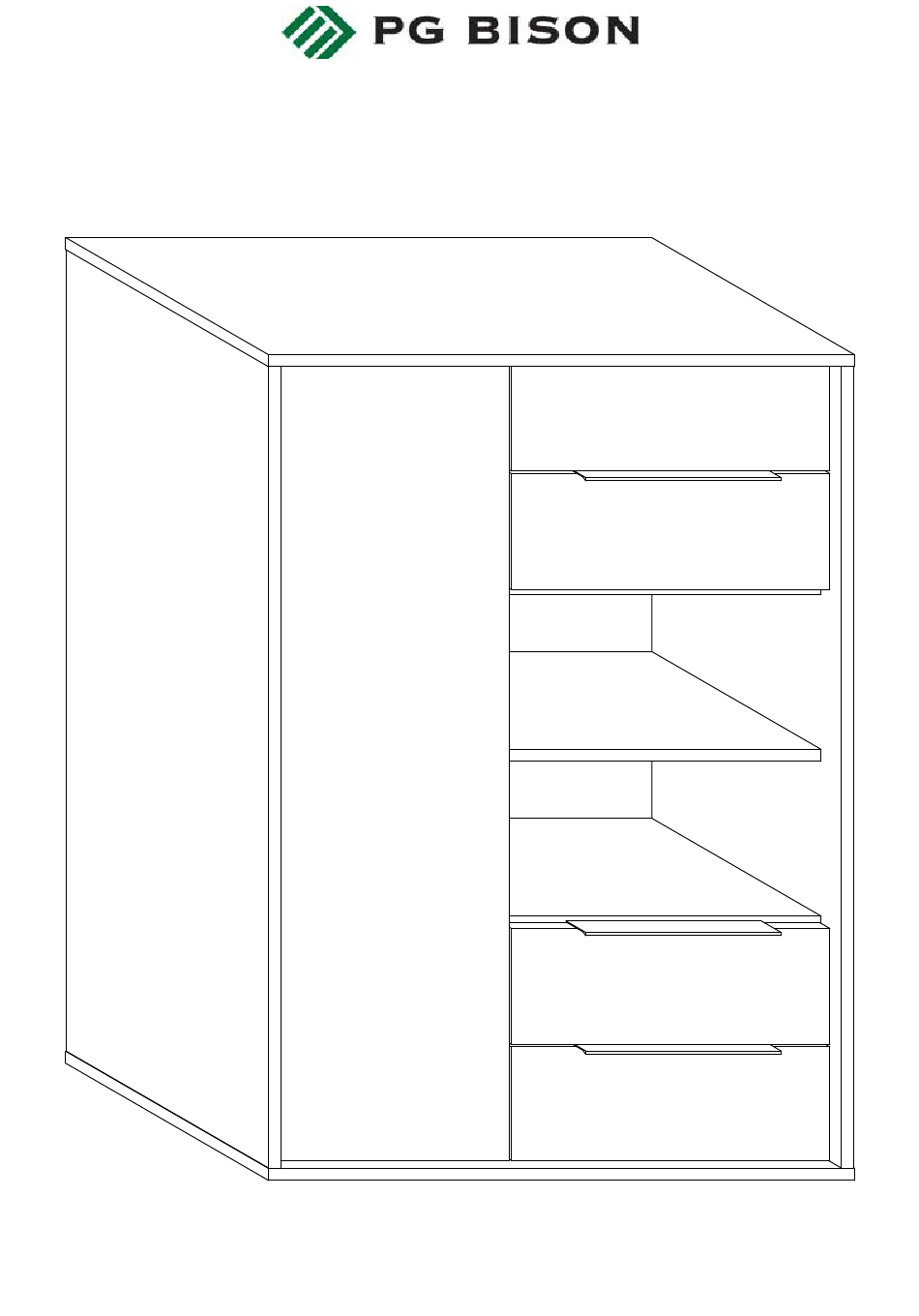

- Page 1 BLUM FLATPAX OFFICE FURNITURE RANGE ASSEMBLY GUIDE STORAGE CABINET 1268mm TOTAL NUMBER OF PANELS: 40...
-
Page 2: Tools Required
HARDWARE PRODUCT IMAGE Dufix Minifix Wooden Dowel Screw 3.5 x 16mm Modul Inset Application Hinge Kit Tandem Single Extension Runners 270mm 4 pairs Left & Right 4 pairs Locking Devices Left & Right Screw 4 x 30mm Front Adjusters Dome Screws Handle J9913 260mm Glides H - Profile Backer Connector... - Page 3 CARCASS ASSEMBLY B - Visible Side Right D - Top K - Back Rail O - Back E - Fixed Shelf I - Partition F - Fixed Shelf N - Back G - Fixed Shelf M - Back L - Back J - Back Rail A - Visible Side Left H - Partition...
-
Page 4: General Instructions
GENERAL INSTRUCTIONS 1. Confirm that all panels (15) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A - O). 3. Ensure that the panels are laid on a non-abrasive surface when assembling. - Page 5 STEP 1 Connect panel H to panel G as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel I to panel E as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 6 STEP 3 Connect panels G, F, & E to panel B as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Det. 1 Connect panels J & K to panel B as shown. Note the different Dowel-Dufix arrangement detailed in Det.
- Page 7 STEP 5 Connect panel A to panels G, F, E, J & K as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 6 50 mm 50 mm 10 mm 10 mm 10 mm 10 mm 50 mm 50 mm...
- Page 8 STEP 7 With panel C sitting on the glides, connect panels A, B & H to panel C as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 9 STEP 8 7. Slide panel O through the grooves on panels A and B and into the slot on the H - Profile Backer Connector 6. Insert the slot on the H - Profile Backer Connector into the shown egde on panel N 5.
- Page 10 STEP 9 Det. 9 Connect panel D to panels A & B as shown. Note that the groove on panel D goes into the revealed edge on panel O (See Det. 9). Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 11 STEP 11 First, use these screws to align the runner holes with the predrilled pilot holes. Then, reinforce the runners by adding screws in the shown positions. Right Runner Det. 11 Screw in the Right Tandem Runners in the shown positions on panel B. Det. 11 for is applicable for the four runners.
-
Page 12: Door Installation
STEP 13 Det. 12 Using Screw 3.5 x16mm, screw in the Hinge Plates in the shown positions on panel A. See Det. 12. DOOR INSTALLATION STEP 1 Using Screw 3.5 x16mm, screw in the Hinges in the shown positions on panel N1. - Page 13 STEP 2 Det. 13 Fig. 1 Fig. 2 Connect the hinges on panel N1 to the corresponding hinge plates on panel A as shown. See Det. 13, Fig. 1 and Fig. 2. STEP 3 Fig. 3 Fig. 4 12.7 mm 2.5 mm Fig.
- Page 14 DRAWER BOX ASSEMBLY DP - Drawer Box Bottom (4) DB - Drawer Box Back (4) DL - Left Box Side (4) DR - Right Box Side (4) DF - Drawer Box Sub Front (4) TOTAL NUMBER OF PANELS: 20 GENERAL INSTRUCTIONS 1.
- Page 15 STEP 1 Connect panel DB to panel DR as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 2 Connect panel DL to panel DB as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation.
- Page 16 STEP 3 Connect panels DL & DR to panel DF as shown. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 4 Slide 3mm panel DP through the grooves on panels DR & DL and into the groove on panel DF as shown.
- Page 17 STEP 5 Screw 3.5 x 16mm Secure the 3mm panel DP onto panel DB using Screw 3.5 x 16mm. Refer to the holes and/or grooves on the diagram to determine the panel orientation. STEP 6 Screw 3.5 x 16mm Locking Device Left &...
- Page 18 STEP 7 J1, K1, L1, M1 Front Adjustment Bracket Using a rubber mallet, gently knock in the Front Adjustment Brackets into panels J1, K1, L1 & M1 in the shown positions. Confirm that they go all the way in such that no part appears above the surface of the panel.
- Page 19 STEP 9 Screw 3.5 x 16mm Using Screw 3.5 x 16mm, screw in the handles onto panels J1, K1, L1 & M1 in the shown position. Confirm that the holes on the handles align with the pilot holes on panels J1, K1, L1 & M1 . STEP 10 Insert the Drawer Boxes as shown.
- Page 20 STEP 11 6.5 mm Det. 5 3 mm 4 mm 3 mm 6.5 mm Det. 6 Det. 7 Fig. 1 Screw 4.0 x 30mm Adjust panels J1, K1, L1 & M1 to achieve the clearances shown in Det. 5-7. This is done by knocking the drawer faces (Panels J1, K1, L1 &...
