Summary of Contents for DeepSea Power & Light Deep-SeaLite

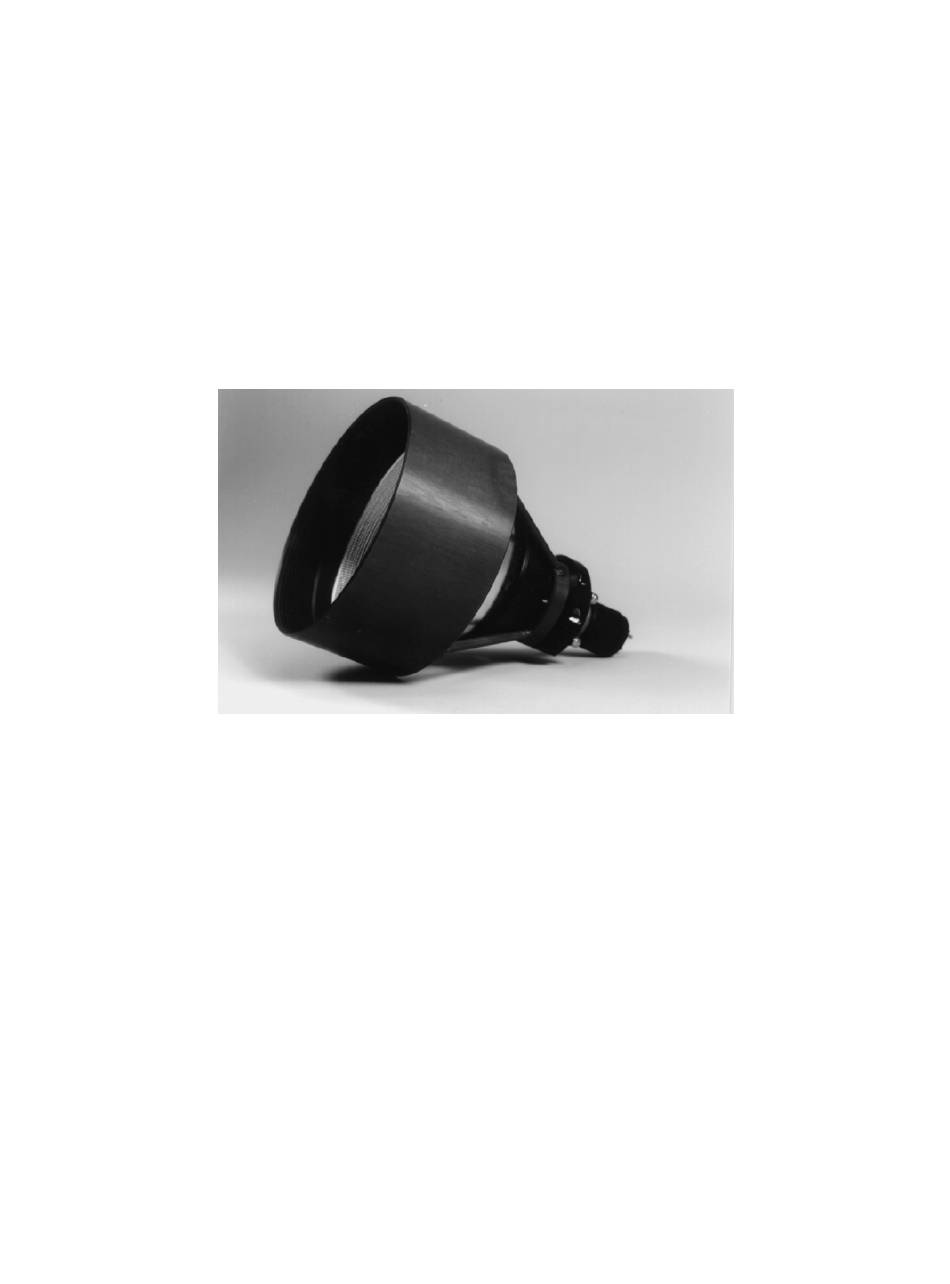

- Page 1 Deep-SeaLite® User Manual 710-001-601 DeepSea Power & Light, Inc. 4033 Ruffin Rd. San Diego, CA 92123 Tel. (858) 576-1261 Fax (858) 576-0219 Web: www.deepsea.com E-mail: info@deepsea.com...
-
Page 2: Table Of Contents
Deep-SeaLite User Manual 6/19/02 Table of Contents Section Page Introduction........................1 Deep-SeaLite® Pre and Post-Deployment Checklist............ 1 Lamp Changing Procedure ....................2 Electrical Requirements ....................2 Voltage Requirements......................2 Current Requirements ......................3 Cold Filament Surge ......................3 Varying Operational Voltages ................... 3 Connector Options ...................... -
Page 3: Introduction
Make sure that the power is disconnected as soon as a flooded condition is suspected. Each Deep-SeaLite® is shipped ready for immediate use. To ensure that the light will perform reliably, please observe the following maintenance guidelines: 1) Try to rinse the light with fresh water after use in salt water. -
Page 4: Lamp Changing Procedure
(rubbing) alcohol. Electrical Requirements It is very important to use an appropriate power supply for each particular Deep-SeaLite®; factors to consider are: voltage requirements (including voltage drop over long cable lengths), current draw of the lamp, cold filament power surge, and lamp life at various voltages. -
Page 5: Current Requirements
Connector Options: Three different industry standard underwater connectors can be used with the Deep-SeaLite®: a Subconn-type 3-pin male bulkhead connector, model BH3M, a right angle connector LPBH3M, and an XSG-3-BCL. The standard connector pinouts are illustrated below. -
Page 6: Electrical And Thermal Warnings
Deep-SeaLite® User Manual 6/19/02 Electrical and Thermal Warnings It is essential that caution is exercised whenever electricity is utilized in or near the water. AC current is certainly more dangerous, but even 12 volts DC can pose an electrocution hazard under certain circumstances. -
Page 7: Deep-Sealite® Quality Control Procedures
This section is included to provide an understanding of the quality control process that each Deep-SeaLite® is subjected to. After assembly is completed, each Deep-SeaLite® is electrically tested with the Meg-Ohm tester to verify that the socket wire insulation is intact, and that there are no short circuits between a power lead and the metal light body. -
Page 8: Flooded Light Repair
Spares kits are available from DeepSea Power & Light. General Notes Do not burn a Deep-SeaLite® out of water for more than about 30 seconds. Do not operate any high voltage electrical equipment without using a Ground Fault Interrupt circuit for safety, especially when divers are in the water! Do not operate a lamp at higher than recommended voltage. -
Page 9: Re-Ordering And Replacement Parts List
Deep-SeaLite® User Manual 6/19/02 Re-ordering and Replacement Parts List All Deep-SeaLites® include choices of connector, reflector, and lamp. To order a Deep-SeaLite®, please use the following code, substituting values listed below for the following variables base model- c-r-v/w, where base model = base model, c = connector, r = reflector, and v/w = volts/wattage of the lamp. -
Page 10: Deep-Sealite® Specifications
Deep-SeaLite® User Manual 6/19/02 Deep-SeaLite® Specifications MECHANICAL Housing Material: 6AL-4V titanium (tiodize finish) and 6061 aluminum hard anodized Diameter: 16.51 cm (6.5 in.) Lens: Quartz Reflectors: Proprietary design spot, medium flood or wide flood Depth Rating: 11,000 meters (36,300 feet) of seawater... -
Page 11: Terms And Conditions
Deep-SeaLite® User Manual 6/19/02 11. Terms and Conditions of Sale No terms or conditions, other than those stated herein, whether contained in customer's purchase order or shipping forms or elsewhere, and no agreement or understanding, oral or written, in any way purporting to modify or negate these terms and conditions shall be binding on DeepSea Power &... - Page 12 Deep-SeaLite® User Manual 6/19/02 C. Any return, repair or replacement shall be subject to DeepSea Power & Light, Inc. Quality Assurance acceptability. D. Buyer assumes all risk of damage or loss or destruction of the property which is accepted for return, repair, or replacement as provided above.
