Summary of Contents for 3DConnexion Keyboard Pro with Numpad

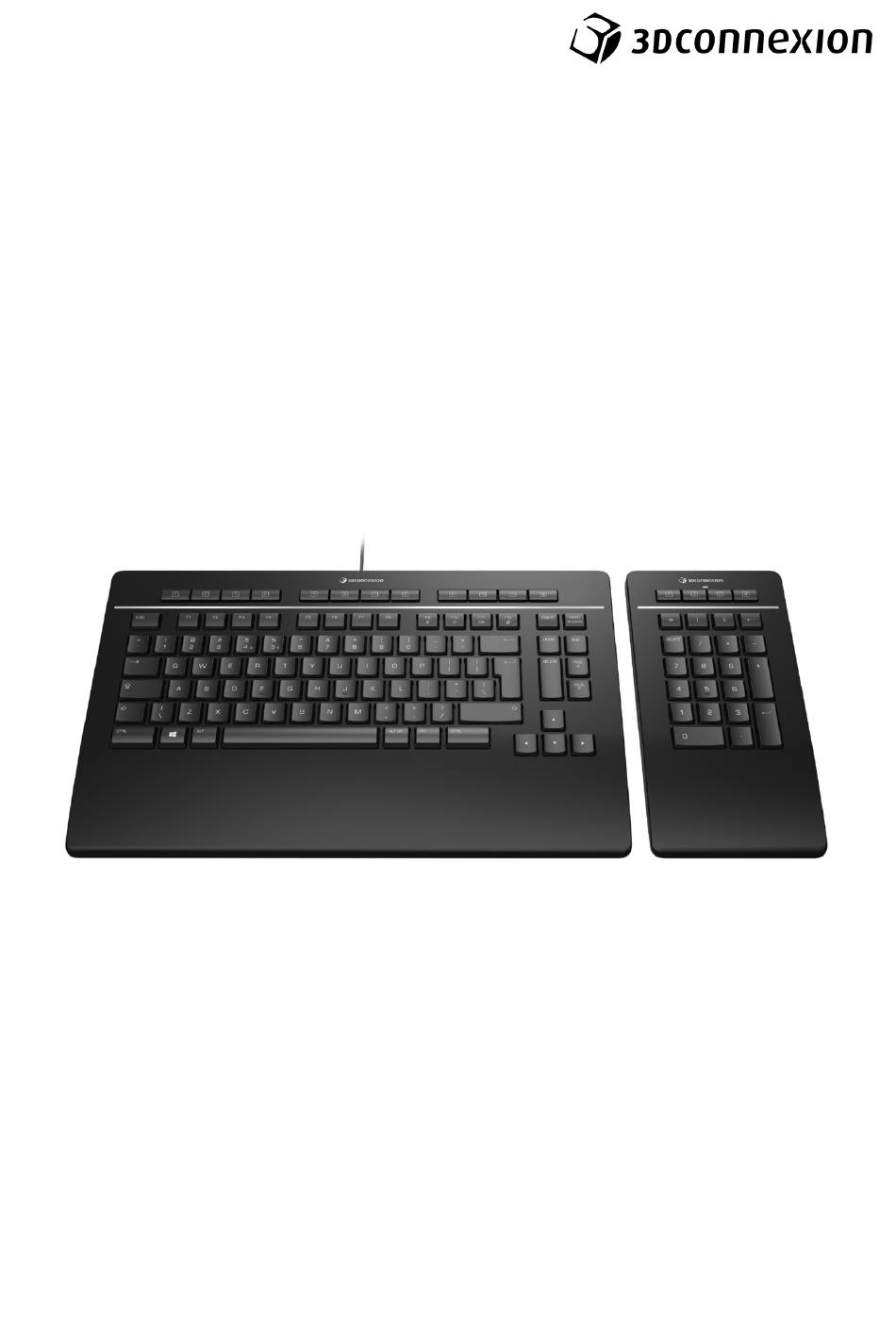

- Page 1 Manual 3Dconnexion Keyboard Pro with Numpad ® Driver Version: 3DxWare 10.8.0 and higher...
-
Page 2: Table Of Contents
Assigning Quick Macros to buttons ..............................9 Assigning Commands using the flyout window ..........................10 Creating Macros ....................................10 Creating Radial Menus ..................................11 Paired Devices ....................................11 3Dconnexion Home ..........................12 Technical Specifications ........................13 3Dconnexion Keyboard Pro with Numpad | 2... -
Page 3: Quickstart Guide
Turn on the device with the power switch located on the right rear side of the Numpad. 3. Download and install the latest software package Make sure you have the latest 3Dconnexion software installed. The latest version can be downloaded at 3dconnexion.com/drivers. -
Page 4: Feature Guide
After installing the driver, the On-Screen Display (OSD) will appear on your desktop, providing a convenient visual reminder of the commands assigned to the 3Dconnexion Keys. You can easily drag and drop the OSD to a different position, where it is more convenient (e.g., on the taskbar near the systray). -
Page 5: 3Dconnexion Numpad Pro
On-Screen Display After installing the driver, the OSD for the Numpad Pro is hidden by default. In order to enable the OSD open the 3Dconnexion Settings, select the Numpad Pro, click on Buttons, and activate the checkbox Always show On-Screen Display. - Page 6 3Dconnexion Settings. Decimal Separator You can adjust the Decimal Separator of your Numpad Pro to suit your preferences in the 3Dconnexion Settings. Status LED The Numpad Pro features a status LED that shows the battery status and the connection status as well.
-
Page 7: 3Dconnexion Settings
The name of the active application is displayed at the top of the panel. Any setting change is relevant to this application only. If multiple 3Dconnexion devices are connected, you can select the desired product to configure by clicking on the flyout button at the top left of the panel. -
Page 8: Advanced Settings
By clicking on the > arrow on the right-hand side of the key field you open a flyout window with the help of which you can assign commands, macros or radial menus to the keys (Assigning Commands using the flyout window). 3Dconnexion Keyboard Pro with Numpad | 8... -
Page 9: Buttons
The Buttons panel within 3Dconnexion Settings allows you to assign commands, macros or radial menus to the programmable 3Dconnexion Keys, which are placed on top of your Keyboard/Numpad. The name of the active application is displayed at the top of the panel. Any setting change is relevant to this application only. While you are working in an application, the On-Screen Display always shows you the current assignment of the keys for this app. -
Page 10: Assigning Commands Using The Flyout Window
The category of the command that it is currently assigned to is highlighted in bold. The flyout window allows you to browse or search for commands in different categories such as 3Dconnexion or application commands. When you select a command by clicking on it, it is automatically assigned to the Keyboard/Numpad key. -
Page 11: Creating Radial Menus
Paired Devices As your Keyboard Pro has an integrated 3Dconnexion Receiver, you can connect the 3Dconnexion Numpad and up to five additional 3Dconnexion devices of the SpaceMouse and CadMouse product line via the Paired Devices panel. -
Page 12: 3Dconnexion Home
3Dconnexion Home Once you have successfully installed the latest 3Dconnexion driver, 3Dconnexion Home gives you access to various 3Dconnexion apps: Trainer: Learn how to quickly use the 3Dconnexion SpaceMouse. Manual: Here you can find the manuals for all 3Dconnexion products. -
Page 13: Technical Specifications
3Dconnexion Keyboard Pro 3Dconnexion Numpad Pro 3Dconnexion Cable USB-A / USB-C (1.5m) Certifications and Registrations CE, UKCA, EAC, FCC, RCM, WEEE, RoHS-EU, REACH-SVHC, RoHS-CN More information Warranty 3-year limited hardware warranty Support 3dconnexion.com/support 3Dconnexion Keyboard Pro with Numpad | 13...
