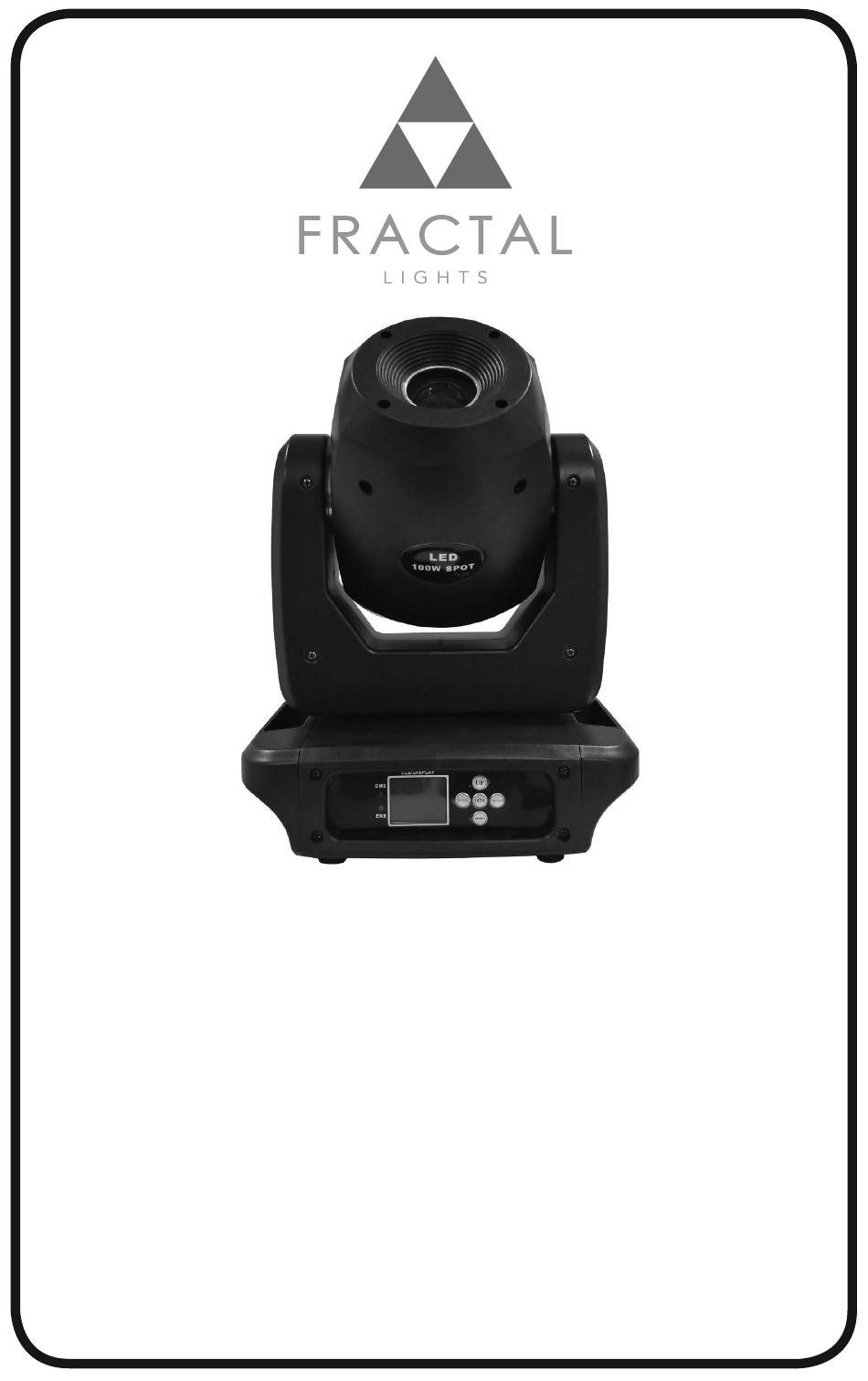

- Page 1 MORPH 100 USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: General Information
1. General Information: Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to this manual. Unpacking:Once receive it,please handle it carefully and check if there is some shatter because of transportation and the following fittings are OK. -
Page 3: Installation
unit to cool down before replacing or serving. • In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assi- stance center. -
Page 4: Technical Specifications
3. Technical Specifications Voltage: AC100-240V,50-60Hz Power Consumption: 150W DMX Channel: 14 CH LED Source: ultra bright 100W white LED Beam Angle: 15° Lumin: 3420 Lux @ 5m Control Mode: DMX512, Master/Slave, Auto, Sound. Support RDM Color Wheel: 7 colors + white, spilt colors , rainbow effect. Fixed Gobo Wheel: 7 gobos + blank, rainbow effect, gobo shake. -
Page 5: Manual Control
5. Subinterface Setting Option Description Slave status: Receive DMX signals from the console or Master Sound Run Mode Auto run ; Random Master status: Auto run and send DMX signal to slave Auto Press “OK” key enter into edit status, then press “UP” DMX Address 001-512 “DOWN”... - Page 6 Option Description 0-255 Pan Fine 0-255 Tilt 0-255 Tilt Fine 0-255 Pan-Tilt Speed 0-255 Dimmer 0-255 Orange indicates selected, Press “OK” key enter into Edit Shutter/Strobe 0-255 status, then press “UP” “DOWN” to select, press “OK” save and Exit edit status. Color 0-255 Gobo...
-
Page 7: Dmx Channel Table
Pan Calibration After entering the sub-interface, you Tilt Calibration can adjust the motor such as X-axis Color Calibration and Y-axis. Reset Calibration Gobo Calibration Reset position to compensate for er- rors in hardware installation, Focus Calibration Adjustment range -128~+127, +0 me- Prism Calibration ans no adjustment. - Page 8 DIMMER – channel 6 EFFECT Note Brightness 100% …… …… Brightness 0% STOP/STROBE – channel 7 EFFECT Note Controlled by Dim- 252-255 UNUSED mer CH FAST STROBE …… …… SLOW STROBE Controlled by Dim- UNUSED mer CH COLOUR WHEEL – channel 8 EFFECT Note FAST ROTATION...
- Page 9 PINK YELLOW BLUE GREEN WHITE FIXED GOBO WHEEL – channel 9 EFFECT Note 251-255 GOBO 7 SHAKE, SLOW to FAST …… …… 221-225 GOBO 1 SHAKE, SLOW to FAST FAST ROTATION (Clockwise) …… …… SLOW ROTATION (Clockwise) 130-134 WHITE SLOW ROTATION (Counterclockwise) ……...
- Page 10 ROTATION GOBO WHEEL – channel 10 EFFECT Note 251-255 GOBO 6 SHAKE, SLOW to FAST …… …… 226-230 GOBO 1 SHAKE, SLOW to FAST FAST ROTATION (Clockwise) …… …… SLOW ROTATION (Clockwise) 130-134 WHITE SLOW ROTATION (Counterclockwise) …… …… FAST ROTATION (Counterclockwise) 60-69 GOBO 6 GOBO 5...
- Page 11 …… …… FAST ROTATION (Clockwise) FAST ROTATION (Clockwise) …… …… SLOW ROTATION (Clockwise) 0-63 POSITION PRISM – channel 12 EFFECT Note PRISM FAST ROTATION …… …… PRISM SLOW ROTATION 10-14 PRISM INSERTED PRISM EXCLUDED FOCUS – channel 13 EFFECT Note Focus 100% ……...
