Summary of Contents for BPE BPE-FFSS-S1

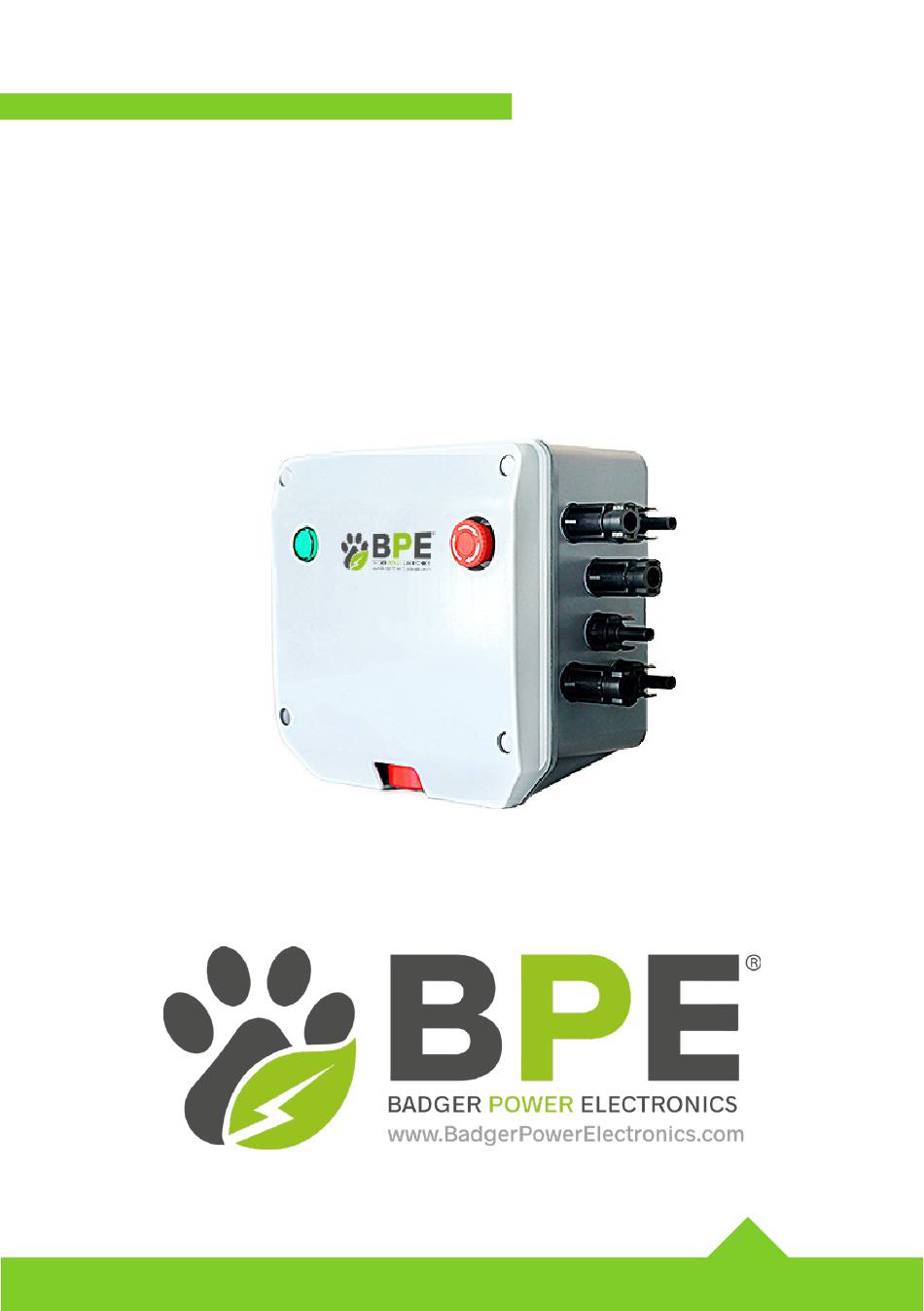

- Page 1 INSTALLATION GUIDE Firefighter PV Safety Switch BPE-FFSS-S1 BPE-FFSS-S2 BPE-FFSS-S3...
-
Page 2: Table Of Contents
GENERAL NOTICE & SAFETY INSTRUCTIONS General Notice Important Safety Precautions Note Intended Use of the Domestic Firefighter Safety Switch Location of the Domestic Firefighter Safety Switch Normal Operation Special Operation Specification Appearance Introduction Wiring Diagram Installation Introduction BPE-FFSS-S3 BPE-FFSS-S2 BPE-FFSS-S1 Dimensions... -
Page 3: General Notice & Safety Instructions
BPE. The material furnished in this document is believed to be accurate and reliable however, BPE assumes no responsibility for the use of this material. BPE reserves the right to make changes to the information contained at anytime without prior notice. All products and company names mentioned in this manual are trademarks or registered trademarks of their respective holders. -
Page 4: Intended Use Of The Domestic Firefighter Safety Switch
• AC Supply Cut-Off Shutdown When the AC power to the BPE-FFSS is interrupted, the BPE-FFSS will automatically switch to OFF, breaking the DC connection between the solar panels and the inverter. Once the AC power to the BPE-FFSS is restored, the BPE-FFSS will automatically switch to ON, restoring the DC connection between the solar panels and the inverter. -
Page 5: Specification
Specification Model BPE-FFSS 1500V 1350V 1000V 800V Max DC Voltage IEC/EN 60947-3 Max DC Current IEC/EN 60947-3 BPE-FFSS-S1 BPE-FFSS-S2 BPE-FFSS-S3 Models 1 String 2 Strings 3 Strings Number of Strings 90Vac-260Vac Operating Voltage 220Vac Nominal Voltage 30mA Nominal Current Average 100mA... -
Page 6: Appearance Introduction
Appearance Introduction BPE-FFSS-S3 Model Description and Status Red light ON: 220VAC power connected. 1 - LED Indicator Red light OFF: 220VAC power disconnected. Button Released and Red LED light ON: 220VAC power connected. 2 - Emergency Button Button Pressed and Red LED light OFF:220VAC power disconnected. -
Page 7: Installation Introduction
Installation Introduction Step 1 - Install the switch Step 2 - Press Emergency Button to keep AC circuit disconnected Step 3 - Connect to AC Main Power... - Page 8 Step 5 - Connect to PV arrays Wiring Requirement for EVO2 Note! Before Connection to PV arrays, Make sure the BPE-FFSS is in “OFF” status .(Red Indicator OFF, Switch Indicator switch to GREEN) Warning All EVO2 connectors must be installed and sealed properly with isolator to maintain...
-
Page 9: Bpe-Ffss-S3
BPE-FFSS-S3 BPE-FFSS-S2 BPE-FFSS-S1... -
Page 10: Dimensions
Dimensions... - Page 12 Badger Power Electronics Manchester Science Park Enterprise House Lloyd Street N Manchester M15 6SE United Kingdom Tel: +44 (0) 161 771 2377 E: hello@badgerpowerelectronics.com www.BadgerPowerElectronics.com...
