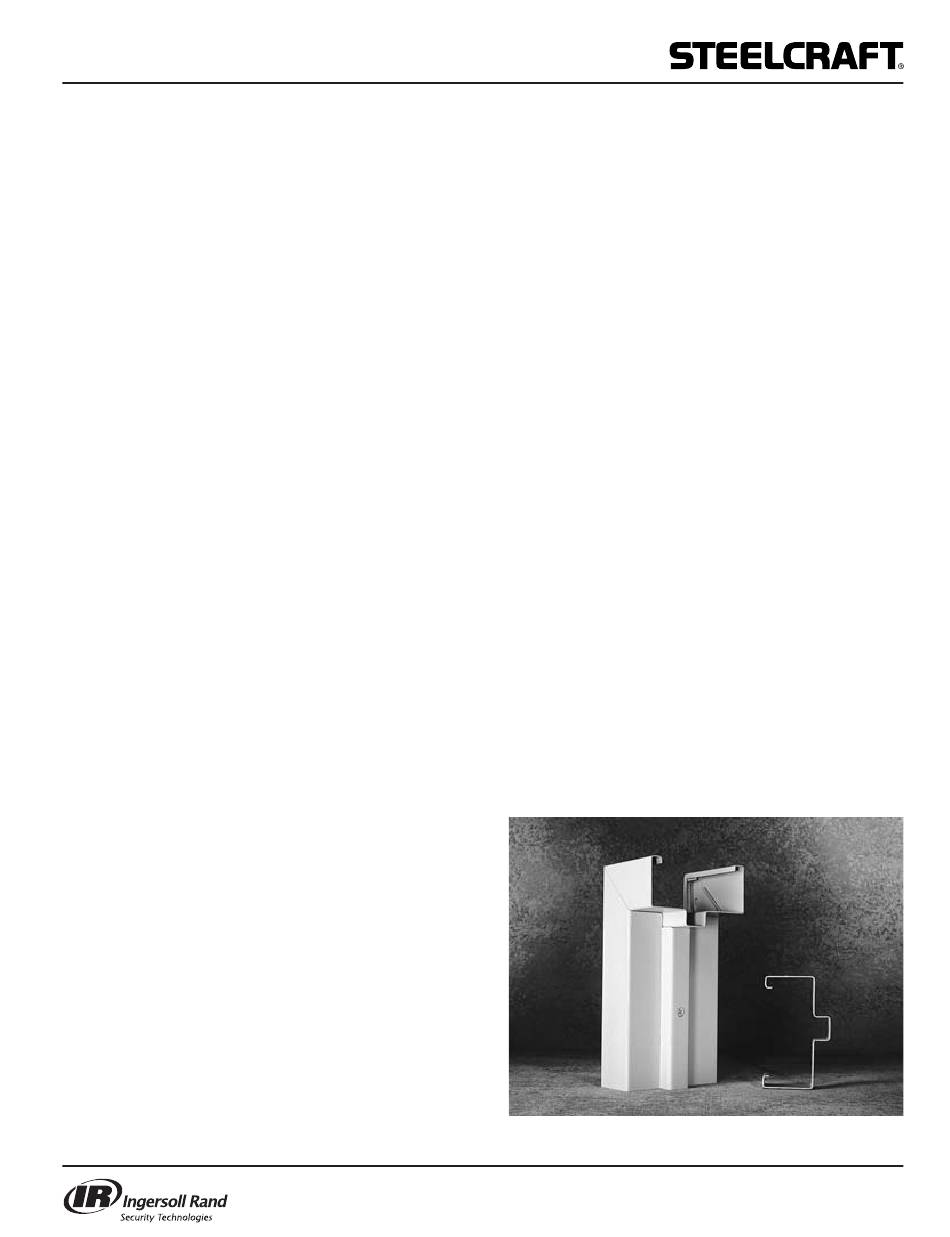

Ingersoll-Rand STEELCRAFT DW Series Technical Data Manual

ANCHORING SYSTEMS

ANCHOR SYSTEMS FOR DW & K SERIES FRAMES:

ANCHORING AND INSTALLATION NOTES:

1. Drywall Frames are supplied standard with field adjustable
compression anchors in each jamb and adjustable base anchors.
DW Series Frames are designed especially for use in
installations using wall baseboards.
2. Anchoring Applications:
• Masonry Wall – Not recommended.
• Wood and Steel Stud Walls – Adjustable compression
anchors are factory located near the top of each jamb.
These anchors can be easily adjusted with either a screw driver
or power driver. Adjustable lock-in base anchors are provided
for attachment directly to the wall floor (sill) runner.
• Optional Security Anchor – Security Stud Anchors are
recommended in frames over 8'-0" (2438mm) high or in
frames installed in areas where security is a priority. Locate the
Security Stud Anchor immediately above or below the strike
reinforcements, and on both faces (secure and entrance sides)
of the jamb. Security Stud Anchors may be used in both the
strike and hinge jambs. They are also recommended to be used
in the head of frames for pairs of doors.
3. Grouting of the DW and K Series Frames is not recommended.
4. Installation shall conform to the published Steelcraft installation
instructions, ANSI A250.11 Recommended Erection Instructions
for Steel Frames, and HMMA 840.
5. Installation Caution Notice
6.
Technical Data Manual Rev. 4/08
• After the frame pieces have been installed over the wallboard,
the frame is squared by adjusting the compression anchor
screws located in the soffit of the jambs. Turning the screw in a
clockwise direction will tighten the frame.
• DO NOT over tighten the compression anchors.
• Check to insure the opening is plumb.
All Fire Rated frames must be installed in accordance with
NFPA Pamphlet 80 and the Authority Having Jurisdiction.
2.4.3
