Summary of Contents for Proline LK4035

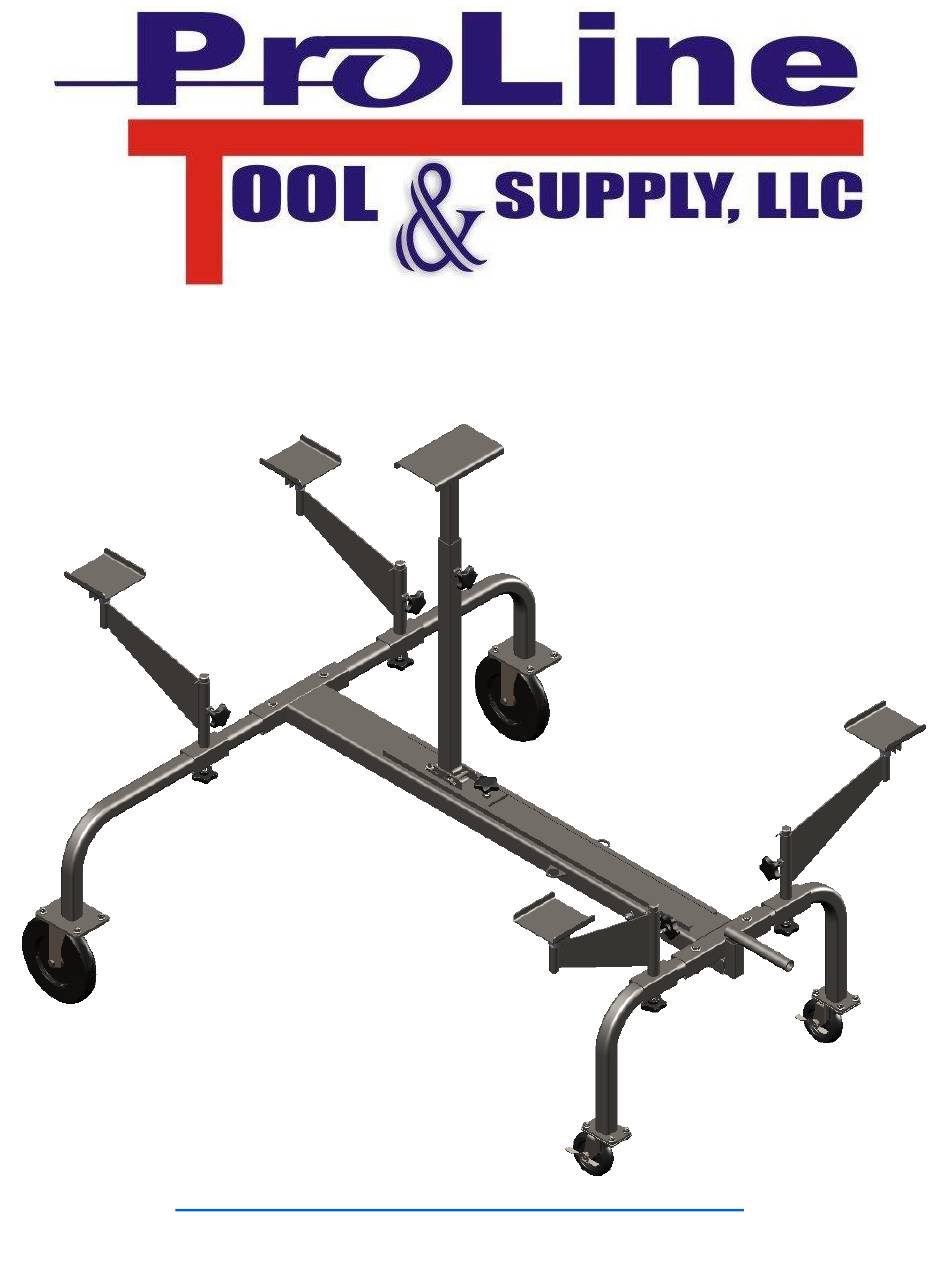

- Page 1 LK4035 SEMI HOOD DOLLY Assembly Guide www.prolinetoolsupply.com (989) 315-8946...
- Page 2 SEMI HOOD DOLLY SPECIFICATIONS PARTS & HARDWARE ASSEMBLY GUIDE OPERATION If you have any questions or comments, please call 1 (989) 315-8946. Proline Tool & Supply, LLC 210 Pigeon Rd Bad Axe MI 48413 US (989) 315-8946...
- Page 3 It is completely adjustable and will accommodate most semi hood designs. With the removal of a pin, the LK4035 Semi Hood Dolly also serves as a pickup box dolly. Storing a semi hood on the LK4035 Semi Hood Dolly enables the operator...
- Page 4 FELT PAD, 4 3/4 X 5 11/16 FELT PAD, 6 3/16 X 8 LK-H006 3/8-16 STAR KNOB LK-H018 CASTER, LOCKING LK-H020 8" CASTER LK4035-01 WELD, BASE, SEMI HOOD DOLLY LK4035-02 WELD, POST, PIVOT ARM LK4035-03 WELD, BRACKET, HORIZ. SLIDE LK4035-04 WELD, LEG, LONG...
- Page 5 LK-4035-10 LK-4035-11 LK-4035-12 LK-4035-13 LK-4035-14 STEP 1 Attach the LK4035-03 Horizontal Slide Bracket to the LK4035-01 Semi Hood Dolly Base using (2) 3/8-16 x 1 hex bolts and (2) 3/8-16 nylon insert hex nuts.. LK-4035-01 3/8-16 nylon insert hex nut...
- Page 6 STEP 2 Attach the (2) LK-H018 Caster with Brake to the (2) LK4035-04 Long Legs, using (8) 5/16-18 x 3/4 hex bolts and (8) 5/16-18 hex flange nuts. LK-4035-01 LK4035-04 5/16-18 x 3/4 hex bolt LK-H018 5/16-18 hex flange nut STEP 3 Slide (2) 0f the LK4035-02 Pivot Arm Posts over the (2) LK4035-04 Long Legs.
- Page 7 STEP 4 Attach the (2) LK-4035-04 Long Legs to the LK4035-01 Semi Hood Dolly Base, using (2) 3/8-16 x 2 1/2 hex bolts and (2) 3/8-16 nylon insert hex nuts. 3/8-16 x 2 1/2 hex bolt LK-4035-01 LK4035-04 3/8-16 nylon insert...
- Page 8 LK-4035-02 LK4035-05 LK-4035-01 STEP 7 Attach both LK4035-05 Short Legs to the LK4035-01 Semi Hood Dolly Base using (2) 3/8-16 x 2 3/8 hex bolts and (2) 3/8-16 nylon insert hex nuts. 3/8-16 x 2 1/2 hex bolt 3/8-16 nylon insert...
- Page 9 Slide the LK4035-06 Horizontal Slide Bar into the LK4035-03 Horizontal Slide Bar Bracket (shown as BLUE for clarity). Attach (1) 3/8-16 x 2 hex bolts and (1) 3/8-16 nylon insert hex nut to the LK4035-06 Horizontal Slide Bar. These will act as a stop and prevent the LK4035-06 from sliding out of the LK4035-03.
- Page 10 STEP 11 Attach the LK-4035-11 Swivel Arm Pad to the LK4035-12 Pad Post using (1) 3/8-16 x 1 3/8 hex bolt, (2) 6/8 flat washers and (1) 3/8-16 nylon insert hex nut. Slide the LK4035-12 Pad Post into LK4035-13 Swivel Arm. Thread (1) LK-H006 3/8-16 Star Knob into the LK4035-13 Swivel Arm.
- Page 11 STEP 12 Slide the (4) Swivel Arm assemblies from Step11 onto the LK4035-02 Pivot Arm Posts. Slide the (4) LK4035-14 Ø1.05 O.D. x Ø.82 1/4 Spacers over each of the LK-4035-02 Pivot Arm Posts and secure with the (4) Ø3/32 x 1 1/2 cotter pins.
