Summary of Contents for KnoxGear KN-MIP01

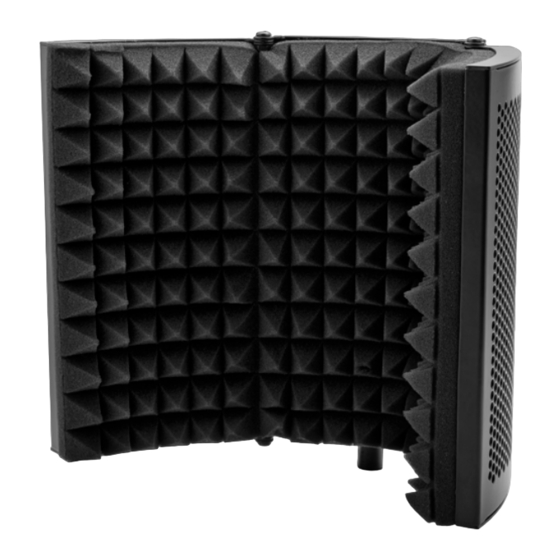

- Page 1 MICROPHONE ISOLATION SHIELD USER MANUAL Model: KN-MIP01 Please read all instructions before use for best performance of this product. Save these instructions for future reference.
- Page 2 Please read this manual carefully before using this product, and keep it in a safe place for future reference. We hope you enjoy your new Knox Gear Microphone Isolation Shield. For technical assistance and warranty service, please email us at cs@knoxgear.com.
- Page 3 Connecting rod Washer Connecting rod nut Crossbar 3/8” gasket (optional) 5/8” gasket (optional) 5/8” female to 3/8” male adapter 3/8” female to 5/8” male adapter Isolation shield NOTE: This product does not include a microphone or shock mount.
- Page 4 Step 1: Mount the crossbar onto the neck of the microphone stand (not included). (1) If using a stand with a 5/8” thread, mount using the 5/8” hole at the end of the crossbar, as pictured. Insert the thread into the hole, and then attach the included 5/8” female to 3/8”...
- Page 5 Step 2: Connect a shock mount or microphone (not included). (5) Attach a shock mount or microphone (not included) to the connecting rod. (a) If using a microphone or shock mount with 5/8” threading, use 3/8” female to 5/8” male adapter. (6) Mount the connecting rod to the crossbar with the washer and connecting rod nut.
