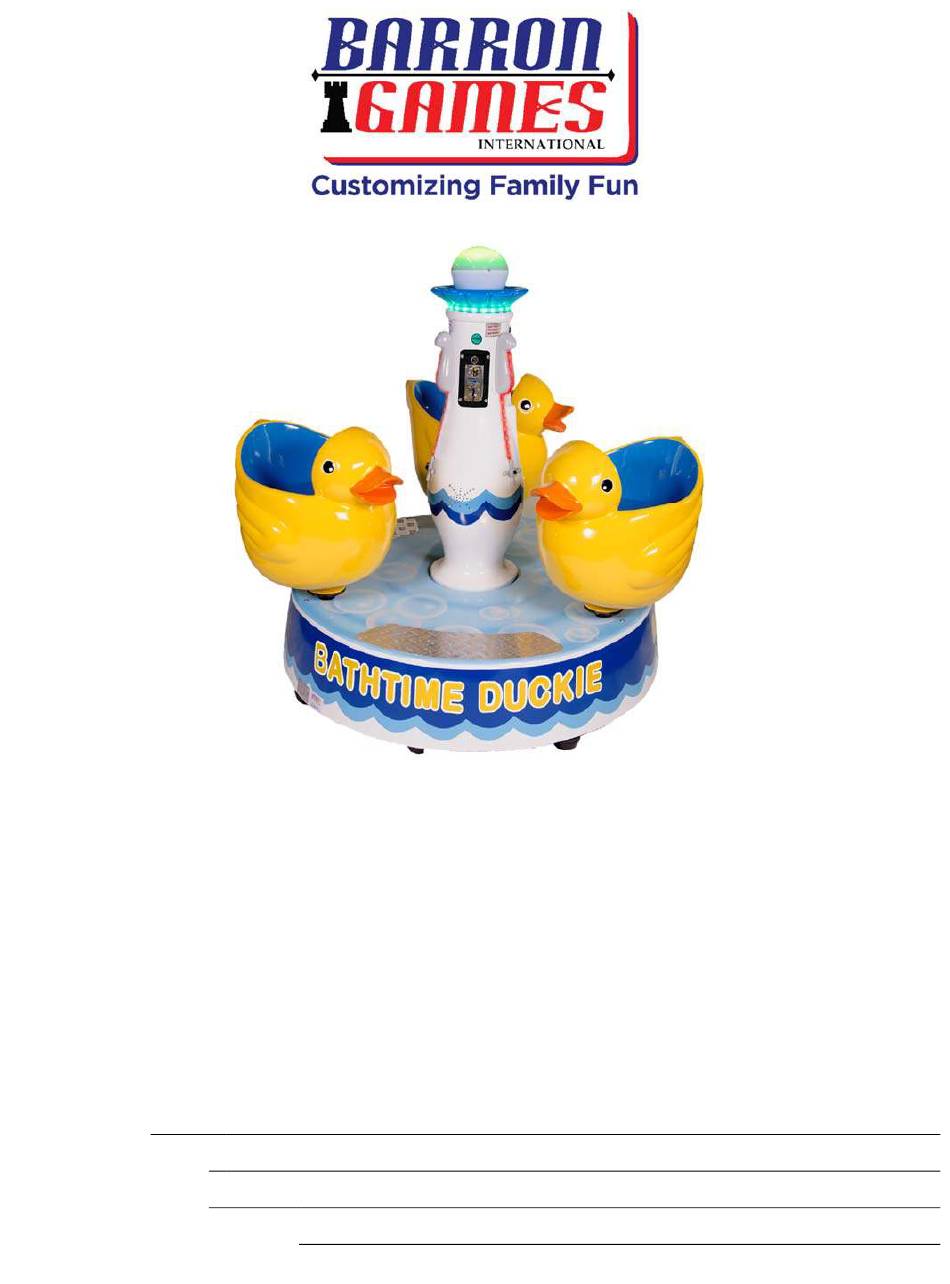

- Page 1 SKU# BGFC‐110 Bathtime Duckie Instruction Manual Assembly, Operation, and Care Instructions Serial #: Distributed By: Sales Person: Technical Service #: *V.042616 ...
- Page 2 Bathtime Duckie I nstruction Manual I nspect I mmediately after Transporting the Product After receiving the shipment, inspect the product thoroughly to ensure that it has been shipped with care. Before turning the power on, please check the following: •...
-
Page 3: Safety Instructions
Bathtime Duckie I nstruction Manual Safety I nstructions • This equipment may contain hazardous voltage which can cause electrical qualified personnel shock. Only * should work inside the equipment. * Note: Keep reading for a list of qualified personnel. •... - Page 4 Bathtime Duckie I nstruction Manual Definition of Site Maintenance Personnel or Other Qualified I ndividuals WARNING Servicing and maintenance work of the contents herein stated should be performed by the SERVICEMAN stipulated as per IEC Standard. Those who do not have technical expertise and knowledge other than the SERVICEMAN are not allowed to perform the work herein stated.
-
Page 5: Before Using This Product
Please contact Barron Games Technical Support at 1+ 716-866-0054 or email service@barrongames.com if you are in need of new stickers or parts. Visit www.BarronGames.com for more information about Barron Games’ Parts and Service Department. service@barrongames.com For assistance call: 1+(716) 866-0054... - Page 6 Bathtime Duckie I nstruction Manual NSTALLATI ON AND AI NTENANCE AFETY This product is an indoor amusement ride for small children. Do not install it outside. Even indoors, it is strongly recommended to avoid installing it in the places mentioned below, to avoid causing a fire, electric shock, machine malfunction, or even death.
-
Page 7: Assembly Notes
Bathtime Duckie I nstruction Manual ASSEMBLY NOTES 1. Read this I nstruction Manual carefully before assembling or operating. 2. Ensure that there is sufficient space to place and shift the product prior to assembling. 3. Three strong adults are recommended to assemble the product. -
Page 8: Product Specifications
Bathtime Duckie I nstruction Manual Assembly – Step A Product Specifications Stem FRP Coin Door 13 Base FRP 14 Power Plug Light Control & Music Box Start Button Speaker 15 Wheel Coin Machine 10 Handlebar 16 Fixer White LED Light Strip... -
Page 9: Control Panel Settings
Bathtime Duckie I nstruction Manual Assembly – Step B Control Panel Settings <- Control Panel Note: In order to activate each function change, the unit must be rebooted (turn the power off and back on). VOLUME SETTINGS Adjust the volume using knob. - Page 10 Bathtime Duckie I nstruction Manual Assembly – Step B Control Panel Settings TIMER SETTINGS Turn the knob to direct number and function as follows: Position Function Ride Time = 30 seconds Ride Length Timer: Ride Time = 60 seconds Ride Time = 90 seconds...
- Page 11 Bathtime Duckie I nstruction Manual Assembly – Step C Connect Panel Settings <- Connect Panel J3: 12-PIN LED LAMP Game-play & DC power output DC 12V Game-play & DC power output DC 12V Game-play & DC power output per 0.5sec DC 12V Game-play &...
- Page 12 Bathtime Duckie I nstruction Manual Assembly – Step C Connect Panel Settings AC INPUT GND AC INPUT 86V~265V AC INPUT L MAX 10A AC INPUT N AC INPUT L AC INPUT N AC INPUT L AC INPUT N J7: 4-PIN AC OUTPUT...
- Page 13 Bathtime Duckie I nstruction Manual Assembly – Step D Coin Comparator I nstructions ( U.S. Model Only) Coin Reject Button Coin Machine Key #8153 Lock Mounting Frame How to Set a Constant Coin Continue reading for a visual diagram of these steps.
- Page 14 Bathtime Duckie I nstruction Manual Coin Comparator Operating Manual Coin Box Description Key for Coin Box # 103 Lock Coin Box Frame Coin Box Access Door to Coin Box Size: W 175mm x L 145mm x H 175mm service@barrongames.com For assistance call: 1+(716) 866-0054...
-
Page 15: Functions And Features
Bathtime Duckie I nstruction Manual Assembly – Step E Control & Music Box Specifications Function: This equipment is for Kiddie Rides only AC Input AC 85V~265 50/60 Hz Dimensions: AC Output (Motor) AC110 / AC220V, 10A D 187mm x W 208mm x H 58mm... -
Page 16: Rear Panel Pin Assignment
Bathtime Duckie I nstruction Manual Rear Panel Pin Assignment service@barrongames.com For assistance call: 1+(716) 866-0054... - Page 17 Bathtime Duckie I nstruction Manual After I nstalling the Product 1. Check the voltage regularly to avoid a short circuit or potential fire. Do not overload the circuit. 2. Keep the power cord out of areas with busy foot traffic to ensure the safety of users and the machine.
-
Page 18: Care And Maintenance
Bathtime Duckie I nstruction Manual Care and Maintenance Be sure to 1. Always connect the machine to a grounded electrical outlet. alw ays turn off the pow er before servicing. 2. Always turn OFF the power and unplug the power supply before opening or replacing any parts. -
Page 19: Troubleshooting
Bathtime Duckie I nstruction Manual Troubleshooting No Pow er: • Make sure the power supply cord is connected and is the correct voltage • Make sure all power switches are “ON” • Check power going out of the 24V transformer Cannot I nsert Coin: •... - Page 20 Barron Games International 84 Aero Drive, Suite 5 Buffalo, NY 14225 Phone: 1+716-866-0054 Fax: 1+716-630-0055 www.BarronGames.com For Parts and Service Information, please contact us: Phone: +1-716-866-0054 Email: Service@BarronGames.com...
