Summary of Contents for Funker E100

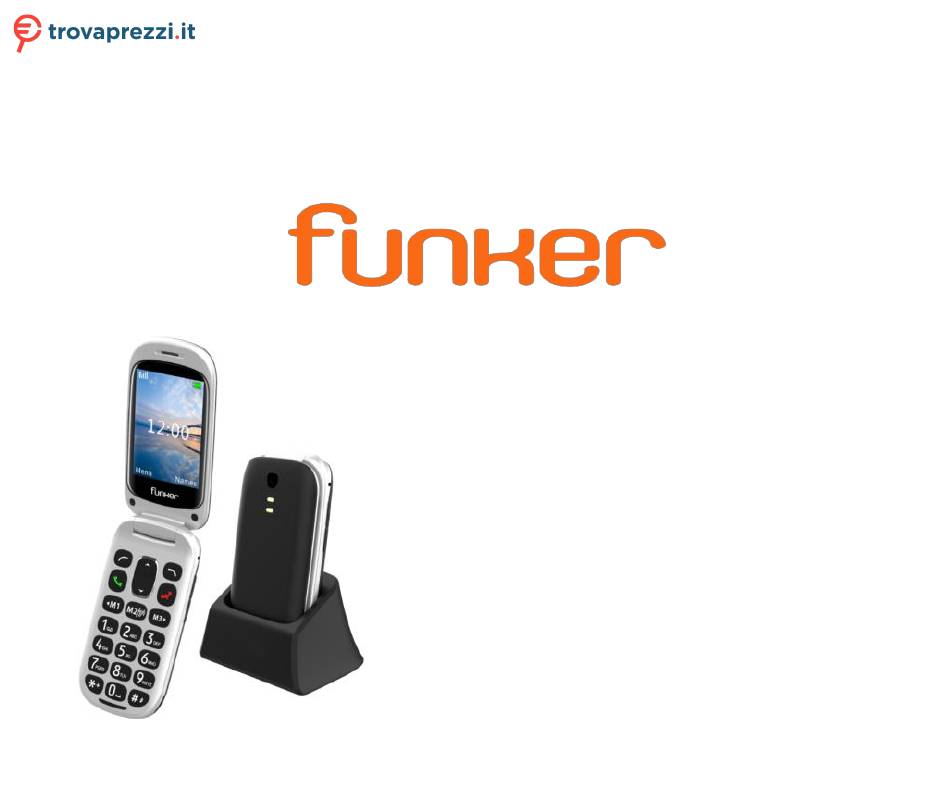

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Funker E100 Max o cerca il tuo prodotto tra le migliori offerte di Cellulari e Smartphone Funker E100 User Manual...
  • Page 3 My phone 1. Conversation speaker 2. Up / down selection keys 3. Left selection key 4. Call key 5. M1 amplification / memory key 6. Voicemail 7. Right selection key 8. Volume + key and flashlight (On / Off) 9. Power on, off, end call 10.

  • Page 4: Table Of Contents

    Contents Installation........................7 Installing the Micro-SD memory card ................7 Installing the SIM card ....................8 Battery Installation ......................9 Contacts: ........................10 Search ..........................10 Add new contact ......................10 Phonebook settings ......................10 Photo contacts ........................ 11 Messages ........................13 Write messages ......................
  • Page 5 Voice memories......................17 Organizer ........................18 Calendar ......................... 18 Calculator ........................19 Alarm ..........................20 Bluetooth ........................21 Multimedia ........................22 Image viewer ........................22 Camera ........................... 22 FM Radio........................22 File manager ........................23 Setting..........................24 SOS button configuration ....................24 Phone Settings ........................
  • Page 6 Up / Down Key Functions ....................30 Security settings ......................31 Restore factory settings ....................31 Recommendations and safety ..................32...

  • Page 7: Installation

    Installation IMPORTANT Turn off the phone and unplug the charger before removing the battery cover. Installing the micro-SD memory card Insert the memory card into the slot under the SIM card holder, make sure the card is positioned face down. Be careful not to scratch or bend the metal contacts on the card.
  • Page 8 Micro-Sd card is used as phone storage, when connected to computer by USB cable, you can copy music or photos inside. Install SIM card 1. Insert the SIM card into the SIM card slot on top of the memory card holder. (Make sure the SIM card contacts are facing down.) 2.

  • Page 9: Contacts

    Installing the battery The first time, charge the battery for 4 hours to get the best performance from it. Remove the battery cover, insert it into the battery compartment, and replace the battery cover. Contacts:...

  • Page 10: Add New Contact

    Look for You can speed up the search for the contact's name by dialing the initial letter. Add new contact You can add a new contact to the SIM card or to the phone, press "save" to confirm. 1. To SIM 1.1 Enter name and phone number.

  • Page 11: Photo Contacts

    3.3 Copy contacts: You can copy SIM and phone contacts between them. 3.4 Move contacts: You can move SIM and phone contacts between them. 3.5 Delete all contacts: You can delete all contacts from SIM card or phone. In the phone book, you can check people's contacts, send SMS, make call, edit, delete, copy and add to the black list.

  • Page 12: Messages

    2) From file and select from phone or memory card to select an existing image and press Open. Observation: use an image size of 240x320 for its correct visualization. 2.2 Ringtone ( Options Select) to select the desired incoming call tone. You can also use Record File to record a personal ringtone.
  • Page 13 1. Press Menu go to Messages and press OK. 2. Select Inbox and press OK. 3. Select a message from the list and press Options to view the message. Other options below: 1) Answer Write the message and send to the sender. 2) Call sender Press select to call the sender.

  • Page 14: Sent Messages

    2. Select Outbox and press OK. 3. Select a message from the list and press Options to view, forward, edit, delete or delete all messages. Sent messages Here you can see all the messages we have sent. SMS configuration 1. In standby mode, press Menu, go to Messages and press OK. 2.

  • Page 15: Magnifying Glass

    Call History 1. In standby mode,press Menu, go to Call History and press OK. 2. All missed, made and received calls are saved here. 3. Use to move between the different types of calls described. Magnifying glass MAGNIFYING GLASS In standby mode, press Menu, go to Magnifier and press OK. With the camera's magnifying glass, you can zoom by adjusting the focus distance.

  • Page 16: Voice Memories

    The sound recorder allows you to record voice memos to keep as a reminder. 1. Press Menu go to Sound Recorder. 2. Press 2 to record / pause. Press 5 to play / pause / stop recordings. Press 8 to delete the recordings.

  • Page 17: Organizer

    Press Menu go to Voice Notes. You can use Remember Sound to record what you want to be remembered instead of the default entries. Observation: 1. When the preset time arrives, the phone will play the recorded sound and there is a pop-up window with these options: Meet and Repeat.
  • Page 18 Show all events Add event A. Entry subject for the event. A. Put time and date of the start of the event. B. Put time and end date of the event. C. Put the subject of the event. D. Activate alarm and snooze time. E.

  • Page 19: Calculator

    Calculator 1. Press Menu go to Organizer, press OK and select Calculator. 2. Calculate the number according to the following steps: 2.1 Enter numbers. 2.2 Use to select ＋, -, =, ×, ÷. 2.3 Then press the left selection key to accept. The result of the operation is displayed on the screen.

  • Page 20: Bluetooth

    Note: The alarm works, even if the phone is switched off Bluetooth 1. Press Menu, go to Organizer and press OK. 2. Go to Bluetooth and press OK for the following settings: 2.1 On off: Select the left selection key to enable or disable bluetooth. 2.2 Visibility: Select On / Off to make the phone visible or not with other devices.

  • Page 21: Camera

    Pictures viewer You can see all the photos saved in the phone. Camera 1. Press Menu, go to Camera and press OK. 2. Press the up arrow key to take the photo. 3. To view the photos, press Options and select Photos. Warning! If the phone memory is insufficient, expand it with an external memory card.

  • Page 22: File Manager

    to work. 6. Press to change the existing channel in the Channel List. 7. Press the keys to adjust the frequency on the channel being played. 8. Press or to increase or decrease the volume. 9. Press the key to turn the radio on or off. File manager Use File Manager to manage all files, rename, copy, delete or move.

  • Page 23: Phone Settings

    SOS setting 1. Press Menu go to Configuration, select configure SOS and press OK. 2. Go to Status and select off or on. 3. Go to SOS number to enter the SOS number, you can put up to 5 different numbers. 4.
  • Page 24 Press Menu, go to Settings. Select Phone settings and press OK. You can configure the following things:  Time and date 1.1 Select Time and date and press OK. 1.2 Select Start City to choose the local time for the area. 1.3 Select Set time / date to set the time, day and daylight saving time status then press Save to save the settings.

  • Page 25: Call Settings

    2) Here you can select wallpaper from phone memory or external memory card. 4.2 Display illumination Here you can adjust the Brightness and time.  Airplane mode: Normal or flight mode. Call settings 1. Pres Menu, go to Settings, select Call settings and press OK. 2.

  • Page 26: Sound Frequency

    25dB. This feature makes the phone very suitable for the hearing impaired. Press Menu go to Settings, navigate to Amplify receiver volume and select to turn off or on When on is selected, each time a call is received or made, this option can be switched on or off by holding down the M2 key.
  • Page 27 2. Please select Low battery notification and press okay. Then you will see the following: 2.1 Status: on / off 2.2 Notification contacts: 3 numbers 2.3 Notification SMS When the battery capacity is 10%, the phone automatically sends a message at 3 Notification contacts that you have chosen to warn that the battery needs to be charged.

  • Page 28: Speed Dial

    SMS ringtone and volume, Key ringtone and volume, and Flip open / closed tone. Speed Dial 1. M1 / M2 / M3 keys: Press Menu go to Configuration, select Direct memories and press OK, eccio e on / off status, then select Choose numbers and press to select phone contacts and press Ok to save Notice: In standby mode, a long press of, will pop up a window “No number, assign...
  • Page 29 2. Select Lock function and press okay. 3. Scroll to choose each menu you want to disable or hide and press OK to choose on / off. Up / Down Key Shortcut The default setting for the up key is Messages. The default setting for the down key is Photo Contacts Security settings 1.
  • Page 30 original settings Recommendations and safety1  Be careful when you are near chemical plants, gas stations, tanks with flammable liquids or anything else that could explode as the phone emits RF signals even when it is in standby mode. Turn off the phone around these items. ...
  • Page 31 Obey the current regulations on the use of the aforementioned devices before using the telephone.  Keep the phone and accessories out of the reach of children.  This device is designed to be marketed in the EEC.  If you are on an airplane, turn off your phone before it takes off so as not to interfere with the airplane's equipment.
  • Page 32  The phone is not waterproof so keep it dry. Avoid using the phone in very hot or very cold temperatures.  Do not throw, drop or hit the phone as both internal and external parts may be damaged.  If you have any problem contact the authorized technical service, do not try to open the phone yourself as it could be dangerous.
  • Page 33 We declare the conformity of the product: Funker E100 Complies with the provisions of the Directive 2014/53/EU on Radio and Telecommunications Terminal Equipment (R & TTE), Directive 2006/95 / CE on Electrical Safety of Low Voltage Equipment and Directive 2004/108 / CE on Electromagnetic Compatibility complying with harmonized standards: EN60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013, EN 50360: 2017, EN 62209-2: 2010.
  • Page 34 THIS MODEL COMPLIES WITH THE INTERNATIONAL GUIDELINES ON EXPOSURE TO RADIO WAVES, as well as the requirements of the EU 2014/53 / EU standard. Your mobile device is the transmitter and receiver of radio waves. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines.
  • Page 35 The highest SAR values according to the ICNIRP guidelines for this device model are as follows: Head SAR: 0.373W / kg. SAR on body: 0.628W / kg. WEEE Directive 2002/96 / EC of the European Parliament of January 27, 2003 on waste electrical and electronic equipment.
  • Page 36 www.funkertech.com...
