Element (ELE-800, ELE-1600, ELE-1800, ELE-2400, ELE-
4800, ELE-7200) Manual
Inspect the packaging of the equipment to confirm that nothing was damaged during
shipping.

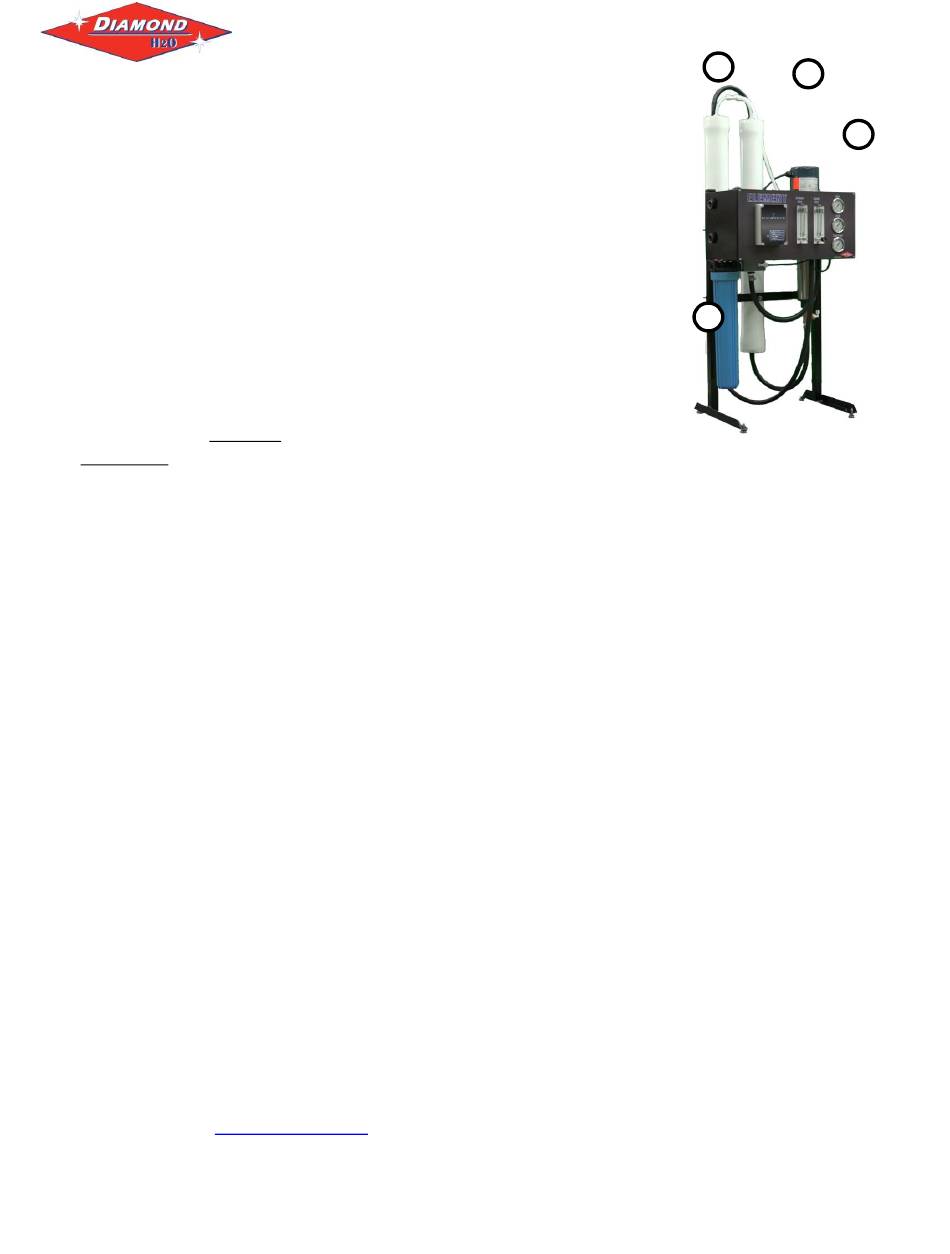

Remove the system from the packaging. Make sure everything is included and without
damage. Below is a checklist of the major components to check. The system will
already be assembled and should arrive in one piece.
_____ 1) Pump
_____ 2) Front Panel
_____ 3) Membrane Housing(s)
_____ 4) Filter Housing
Call Diamond H2O right away if anything is missing. Contact the freight company
immediately if anything is damaged. Diamond H2O will not be liable for any damage received after shipping.
Packaged By: ___________________________________
Received By: ___________________________________
Warnings
1. System produces Corrosive Water.
The element produces water with very low Total Dissolved Solids (TDS) and is corrosive.
Product/Permeate water should not be exposed to metal piping like brass, copper, or steel. Systems
installed on metallic plumbing must use Pro Products LLC Neutra 7 for protection from corrosion.
2. System produces Concentrated Water.
The element produces water with very high TDS which can be dangerous. Concentrate/Reject water will
contain a higher concentration of most contaminants than the source water and should not be used as
drinking water.
3. 120/240V present in control box
To reduce the risk of electrical shock, the incoming power supply must include a protective earth ground.
4. Pump will boost pressure by approximately 150psi.
5. Use on board TDS monitor as a secondary reference only.
TDS is a general indication of all the ions present in water. A reduction in TDS does not necessarily mean a
reduction in a specific contaminant. Testing for specific contaminants at least annually is recommended.
TG
Analytical Labs
Contact
Email:
info@tgalabs.com
Element Series Manual
with any questions on testing coliform bacteria, nitrate, arsenic, and more.
Phone: 920-757-1355
3
1
4
Date: _______________
Date: _______________
Fax: 920-757-5819
2
Page | 1
Advertisement
Table of Contents
Related Manuals for Diamond H2O Element Series
Summary of Contents for Diamond H2O Element Series
- Page 1 _____ 3) Membrane Housing(s) _____ 4) Filter Housing Call Diamond H2O right away if anything is missing. Contact the freight company immediately if anything is damaged. Diamond H2O will not be liable for any damage received after shipping. Packaged By: ___________________________________ Date: _______________...
-
Page 2: Setup Instructions
Element Series Manual Setup Instructions 1. Find the location. Decide where you would like to place the system. Allow at Permeate Outlet least 45 inches above the unit for membrane removal and (product) loading. If the height is not available, allow at least 25... -
Page 3: Feed Water Requirements
Element Series Manual Feed Water Requirements 1. Plumbing feeding the element must be at least ¾” in diameter. 2. Filtered water must be used on the membrane. The element has a 5 micron filter to remove particles and will drastically extend the life of the membrane. Changing these filters every month is recommended to extend the life of the membrane. - Page 4 Element Series Manual Control A diagram of the Element controller is shown below. Page | 4...
- Page 5 Element Series Manual Inner Control Box Page | 5...
- Page 6 Element Series Manual CPU Board Diagram Page | 6...
-
Page 7: Dip Switch Settings
Element Series Manual DIP Switch Settings See Page 8 for details on RO Program settings. Page | 7... -
Page 8: Programming Guide
Element Series Manual Programming Guide The element has four programs which determine the flush behavior or the system. Program 1: High Pressure Flush Program 2: No Flush Program 3: Permeate flush, (low pressure, inlet valve closed) Program 4: Low pressure feed water flush The program details are shown below. - Page 9 Element Series Manual Control Programming: Parameters Explained Page | 9...
- Page 10 Element Series Manual Control Programming: Parameters Explained (Continued) Page | 10...
-
Page 11: Changing A Filter
Element Series Manual Changing a Filter 1. Turn off the control and the incoming water supply and depressurize the incoming water line. 2. Once the system is depressurized, place the housing tool onto the filter housing. 3. Twist the housing tool counter-clockwise to unscrew the bottom of the filter housing from the top of the filter housing. - Page 12 Element Series Manual Notes: Page | 12...
