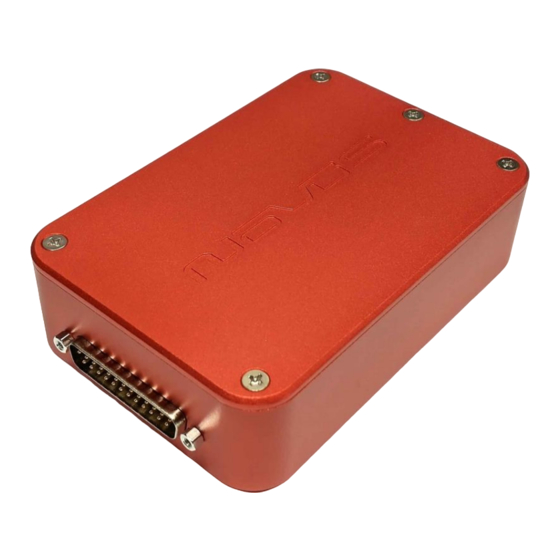

Miniature Low Noise OCXO Rubidium Reference
This atomic reference brings exceptional stability in a very
small, low power and economic package. It offers a
Rubidium reference, low phase noise options in a 5" x
3.4"X1.33 aluminum chassis. There are 10 MHz low phase
noise sine output, or 10MHz LVCMOS output, plus a PPS.
This atomic reference affords exceptional holdover stability
of less than 0.3 ppb/month. Temperature stability of 1ppb.
To further enhance stability, the Rubidium source is
available with a GNSS locking option. All channels are
monitored for a fault condition and built-in test monitors
critical circuits which drives BITE and serial indicators.
Output
Page #:
NR7020-RO
10 MHz,0.5 Vrms sine, or Square Wave (SMA)
1 of 4
DATA SHEET NUMBER
REVISION
DATE
Rubidium Atomic
Reference
Aging < 4E-10/month
Phase Noise
Offset Frequency Typical
(Hz)
(dBc / Hz)
10
-120
100
-145
1K
-155
10K
-160
www.novuspower.com
NR7020-RO
B
040522
