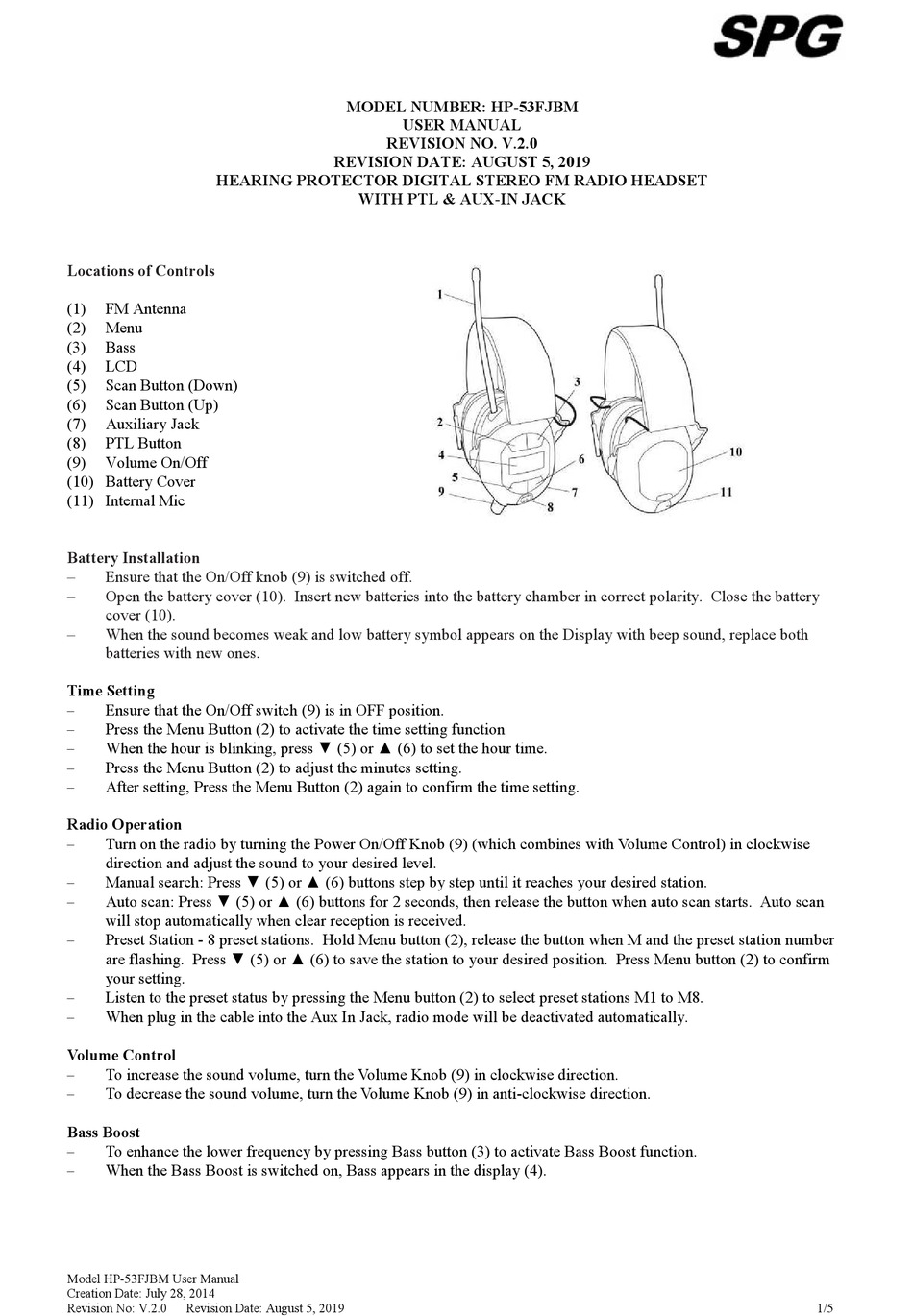

HEARING PROTECTOR DIGITAL STEREO FM RADIO HEADSET
Locations of Controls
(1)
FM Antenna
(2)
Menu
(3)
Bass
(4)
LCD
(5)
Scan Button (Down)
(6)
Scan Button (Up)
(7)
Auxiliary Jack
(8)
Ptl Button
(9)
Volume On/Off
(10) Battery Cover
(11) Internal Mic
Battery Installation
Ensure that the On/Off knob (9) is switched off.
Open the battery cover (10). Insert new batteries into the battery chamber in correct polarity. Close the battery
cover (10).
When the sound becomes weak and low battery symbol appears on the Display with beep sound, replace both
batteries with new ones.
Time Setting
Ensure that the On/Off switch (9) is in OFF position.
Press the Menu Button (2) to activate the time setting function
When the hour is blinking, press ▼ (5) or ▲ (6) to set the hour time.
Press the Menu Button (2) to adjust the minutes setting.
After setting, Press the Menu Button (2) again to confirm the time setting.
Radio Operation
Turn on the radio by turning the Power On/Off Knob (9) (which combines with Volume Control) in clockwise
direction and adjust the sound to your desired level.
Manual search: Press ▼ (5) or ▲ (6) buttons step by step until it reaches your desired station.
Auto scan: Press ▼ (5) or ▲ (6) buttons for 2 seconds, then release the button when auto scan starts. Auto scan
will stop automatically when clear reception is received.
Preset Station - 8 preset stations. Hold Menu button (2), release the button when M and the preset station number
are flashing. Press ▼ (5) or ▲ (6) to save the station to your desired position. Press Menu button (2) to confirm
your setting.
Listen to the preset status by pressing the Menu button (2) to select preset stations M1 to M8.
When plug in the cable into the Aux In Jack, radio mode will be deactivated automatically.
Volume Control
To increase the sound volume, turn the Volume Knob (9) in clockwise direction.
To decrease the sound volume, turn the Volume Knob (9) in anti-clockwise direction.
Bass Boost
To enhance the lower frequency by pressing Bass button (3) to activate Bass Boost function.
When the Bass Boost is switched on, Bass appears in the display (4).
Model HP-53FJBM User Manual
Creation Date: July 28, 2014
Revision No: V.2.0
Revision Date: August 5, 2019
MODEL NUMBER: HP-53FJBM
USER MANUAL
REVISION NO. V.2.0
REVISION DATE: AUGUST 5, 2019
WITH PTL & AUX-IN JACK
1/5
Advertisement
Table of Contents
Related Manuals for SPG HP-53FJBM
Summary of Contents for SPG HP-53FJBM
- Page 1 To enhance the lower frequency by pressing Bass button (3) to activate Bass Boost function. When the Bass Boost is switched on, Bass appears in the display (4). Model HP-53FJBM User Manual Creation Date: July 28, 2014 Revision No: V.2.0...
- Page 2 Avoid working in a noisy environment over extended periods of time. Wear the hearing protection when working at a noisy workplace. Model HP-53FJBM User Manual Creation Date: July 28, 2014 Revision No: V.2.0 Revision Date: August 5, 2019...
- Page 3 2pcs. 1.5V Alkaline Battery Frequency Range Radio FM 87.5 – 108 MHz; 20 Hz 20 kHz Frequency Response 32 Ohm 10% Impedance Material in Plastic Model HP-53FJBM User Manual Creation Date: July 28, 2014 Revision No: V.2.0 Revision Date: August 5, 2019...
- Page 4 This product can use 2 years at least unless the headband/ear cushions or the headset is damaged. The PPE does not provide proper protection if the ear muff defect, or not correctly placed over the ear. Trade Mark: SPG, Dr. Owl, Sports, Ear Marking: Trade Mark...
- Page 5 Hereby, Specialthing International Co, Ltd declares that the earmuffs are in compliance with the Regulation (EU) 2016/425. Please see attachment for the full text of the EU Declaration of Conformity. Model HP-53FJBM User Manual Creation Date: July 28, 2014 Revision No: V.2.0...
