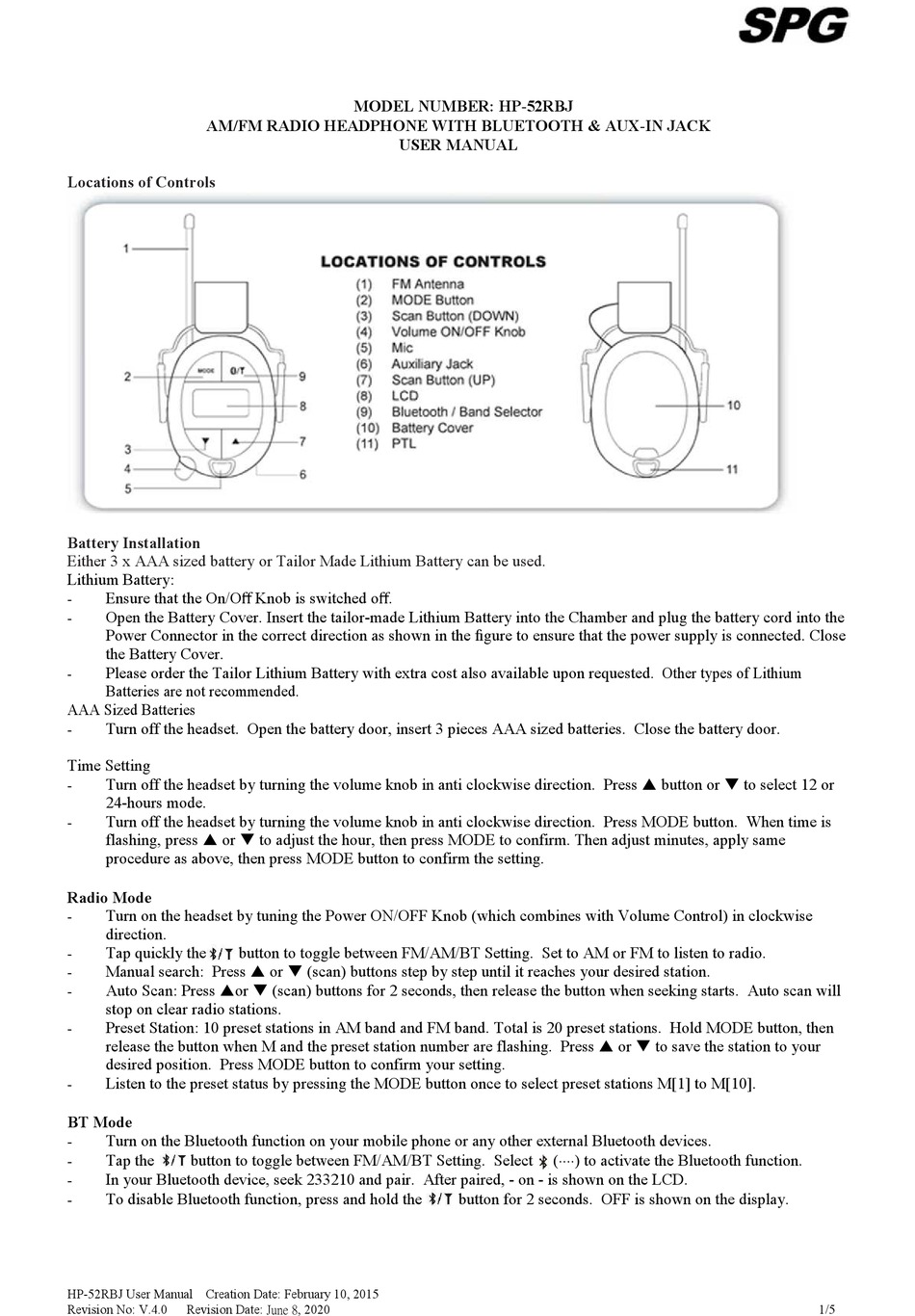

SPG HP-52RBJ User Manual

AM/FM RADIO HEADPHONE WITH BLUETOOTH & AUX-IN JACK
Locations of Controls
Battery Installation
Either 3 x AAA sized battery or Tailor Made Lithium Battery can be used.
Lithium Battery:
Ensure that the On/Off Knob is switched off.
-
Open the Battery Cover. Insert the tailor-made Lithium Battery into the Chamber and plug the battery cord into the
-
Power Connector in the correct direction as shown in the figure to ensure that the power supply is connected. Close
the Battery Cover.
Please order the Tailor Lithium Battery with extra cost also available upon requested . Other types of Lithium
-
Batteries are not recommended.
AAA Sized Batteries
Turn off the headset. Open the battery door, insert 3 pieces AAA sized batteries. Close the battery door.
-
Time Setting
Turn off the headset by turning the volume knob in anti clockwise direction. Press  button or  to select 12 or
-
24-hours mode.
Turn off the headset by turning the volume knob in anti clockwise direction. Press MODE button. When time is
-
flashing, press  or  to adjust the hour, then press MODE to confirm. Then adjust minutes, apply same
procedure as above, then press MODE button to confirm the setting.
Radio Mode
Turn on the headset by tuning the Power ON/OFF Knob (which combines with Volume Control) in clockwise
-
direction.
Tap quickly the button to toggle between FM/AM/BT Setting. Set to AM or FM to listen to radio.
-
Manual search: Press  or  (scan) buttons step by step until it reaches your desired station.
-
Auto Scan: Press or  (scan) buttons for 2 seconds, then release the button when seeking starts. Auto scan will
-
stop on clear radio stations.
Preset Station: 10 preset stations in AM band and FM band. Total is 20 preset stations. Hold MODE button, then
-
release the button when M and the preset station number are flashing. Press  or  to save the station to your
desired position. Press MODE button to confirm your setting.
Listen to the preset status by pressing the MODE button once to select preset stations M[1] to M[10].
-
BT Mode
Turn on the Bluetooth function on your mobile phone or any other external Bluetooth devices.
-
Tap the button to toggle between FM/AM/BT Setting. Select
-
In your Bluetooth device, seek 233210 and pair. After paired, - on - is shown on the LCD.
-
To disable Bluetooth function, press and hold the
-
HP-52RBJ User Manual Creation Date: February 10, 2015
Revision No: V.4.0 Revision Date: June 8, 2020
MODEL NUMBER: HP-52RBJ
USER MANUAL
button for 2 seconds. OFF is shown on the display.
() to activate the Bluetooth function.
1/5
