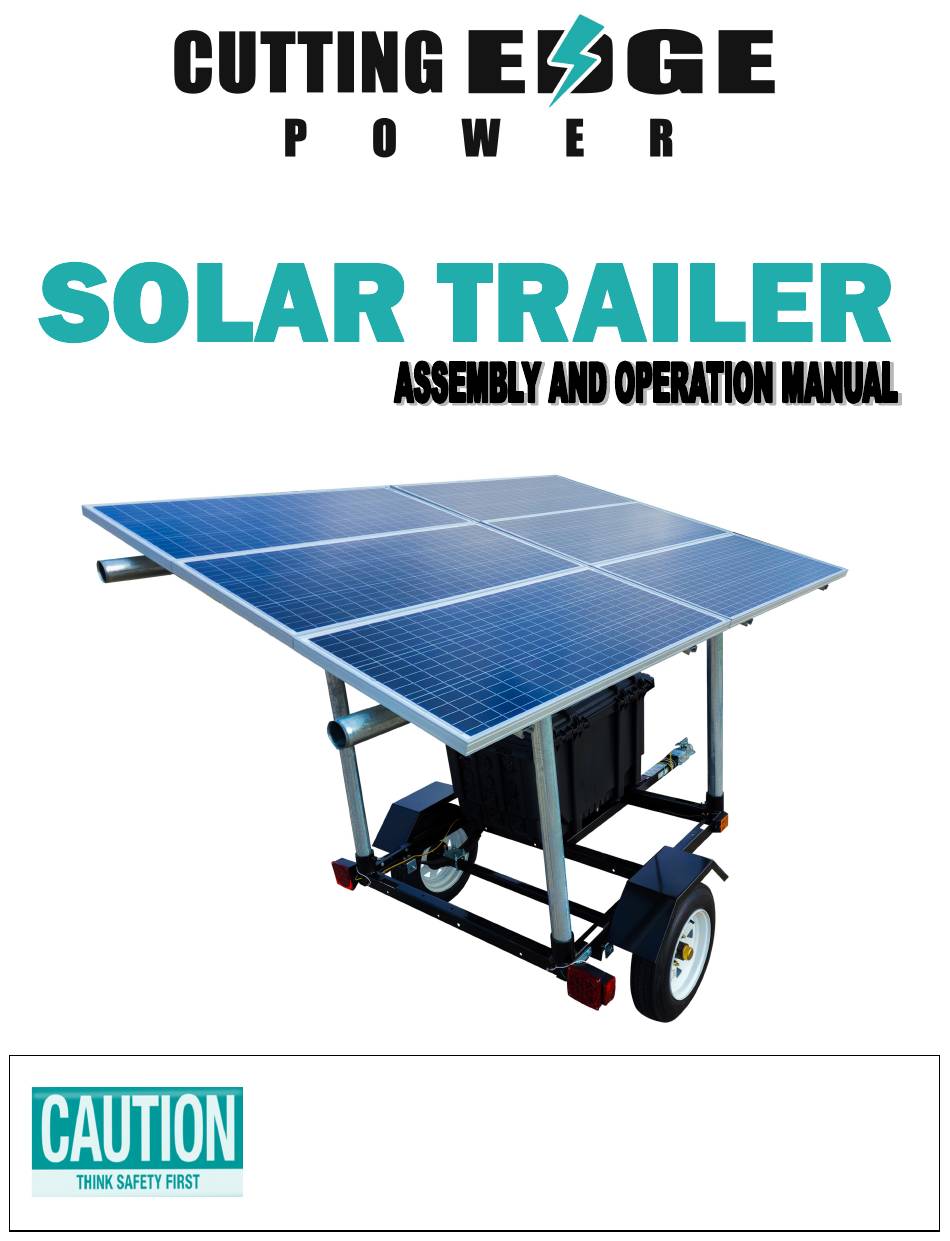

Solar Trailer Assembly and Operation Manual
The warnings, precautions, and instructions discussed in this instruction sheet can-
not cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors that cannot be
built into this product but must be supplied by the operator.
While Cutting Edge
Power is proud to be dedicated to producing high-quality products, we are not
responsible for any property or personal damage to you or your device or vehi-
cle due to the use/misuse of this product. Always use good judgment and nev-
er try to modify or disassemble this product.
Advertisement
Summary of Contents for Cutting Edge SOLAR TRAILER
- Page 1 Solar Trailer Assembly and Operation Manual The warnings, precautions, and instructions discussed in this instruction sheet can- not cover all possible conditions and situations that may occur. It must be under- stood by the operator that common sense and caution are factors that cannot be built into this product but must be supplied by the operator.
- Page 2 Some hard bumps on the road can easily shatter the solar panel glass if they’re mounted to the solar trailer while driving. We recommend transporting the solar panels on the deck of the trailer or in your truck bed.
- Page 3 Cutting Edge Power will help you file a claim with the freight company. 2. Insert the vertical pipes into the feet welded to the trailer and tighten down the set screw with a 9/16”...
- Page 4 Solar Trailer Assembly and Operation Manual 3. Attach brackets to the top of the poles. Don’t tighten these yet. 4. Place the 8ft long pipes on top of both brackets. Insert U-bolts and tighten the U- bolts. You may need a buddy for this step.
- Page 5 Solar Trailer Assembly and Operation Manual 6. Lay out the strut channel on the top pipes and hand tighten the pipe straps. Don’t tighten them down all the way yet, but make sure they won’t fall when we attach the solar panels.
- Page 6 Solar Trailer Assembly and Operation Manual 7. Carefully attach the solar panels. We recommend still not tightening the pipe straps down all the way until the end. At the very end, you can finally tighten the pipe straps and solar panels.
- Page 7 Solar Trailer Assembly and Operation Manual 9. Firmly tighten the trailer’s tongue with the 4 bolts, already loose in place. Tighten the trailer light hardware. 10. If you plan to tow the trailer on public roads, you will need to register the trailer’s title (enclosed with...
- Page 8 Solar Trailer Assembly and Operation Manual 11. If a wind turbine is included, assembly is identical, except one of the tall pipes must be substituted with a taller 8ft pipe as shown below. The wind turbine bracket must also be used,...
- Page 9 Solar Trailer Assembly and Operation Manual 12. Attach the wind turbine to the flange adapter first. The hardware is shown below: 13. Run the wire through the pipe and out the bottom of the welded foot on the trailer. Connect the 3 wires to the 3 wires on the solar generator.
-
Page 10: Safety Information
SAFETY INFORMATION • Cutting Edge Power is an OEM that outfits existing trailers for wind and solar applications. We are not a trailer manufacturer, therefore we do not have the authority regarding the use or misuse of this product. Always follow DOT warnings and recommendations, as well as the trailer manufacturer’s warnings and recommendations.
