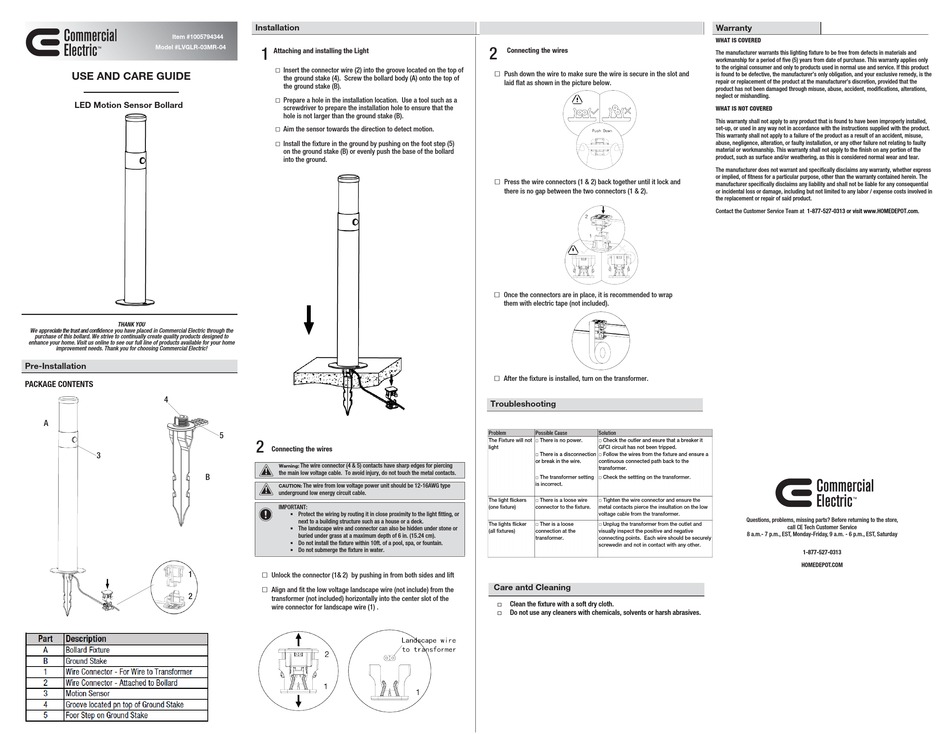

USE AND CARE GUIDE
LED Motion Sensor Bollard
THANK YOU
We appreciate the trust and confi dence you have placed in Commercial Electric through the
purchase of this bollard. We strive to continually create quality products designed to
enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Commercial Electric!
Pre-Installation
PACKAGE CONTENTS
4
A
3
1
2
Installation
1
Attaching and installing the Light
Insert the connector wire (2) into the groove located on the top of
□
the ground stake (4). Screw the bollard body (A) onto the top of
the ground stake (B).
Prepare a hole in the installation location. Use a tool such as a
□
screwdriver to prepare the installation hole to ensure that the
hole is not larger than the ground stake (B).
Aim the sensor towards the direction to detect motion.
□
Install the fixture in the ground by pushing on the foot step (5)
□
on the ground stake (B) or evenly push the base of the bollard
into the ground.
5
2
Connecting the wires
The wire connector (4 & 5) contacts have sharp edges for piercing
Warning:
the main low voltage cable. To avoid injury, do not touch the metal contacts.
B
The wire from low voltage power unit should be 12-16AWG type
CAUTION:
underground low energy circuit cable.
IMPORTANT:
 Protect the wiring by routing it in close proximity to the light fitting, or
next to a building structure such as a house or a deck.
 The landscape wire and connector can also be hidden under stone or
buried under grass at a maximum depth of 6 in. (15.24 cm).
 Do not install the fixture within 10ft. of a pool, spa, or fountain.
 Do not submerge the fixture in water.
□ Unlock the connector (1& 2) by pushing in from both sides and lift
□ Align and fit the low voltage landscape wire (not include) from the
transformer (not included) horizontally into the center slot of the
wire connector for landscape wire (1) .
2
Connecting the wires
□ Push down the wire to make sure the wire is secure in the slot and
laid flat as shown in the picture below.
□ Press the wire connectors (1 & 2) back together until it lock and
there is no gap between the two connectors (1 & 2).
□ Once the connectors are in place, it is recommended to wrap
them with electric tape (not included).
□ After the fixture is installed, turn on the transformer.
Troubleshooting
Care antd Cleaning
□
Clean the fixture with a soft dry cloth.
□
Do not use any cleaners with chemicals, solvents or harsh abrasives.
Warranty
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in materials and
workmanship for a period of five (5) years from date of purchase. This warranty applies only
to the original consumer and only to products used in normal use and service. If this product
is found to be defective, the manufacturer's only obligation, and your exclusive remedy, is the
repair or replacement of the product at the manufacturer's discretion, provided that the
product has not been damaged through misuse, abuse, accident, modifications, alterations,
neglect or mishandling.
WHAT IS NOT COVERED
This warranty shall not apply to any product that is found to have been improperly installed,
set-up, or used in any way not in accordance with the instructions supplied with the product.
This warranty shall not apply to a failure of the product as a result of an accident, misuse,
abuse, negligence, alteration, or faulty installation, or any other failure not relating to faulty
material or workmanship. This warranty shall not apply to the finish on any portion of the
product, such as surface and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specifically disclaims any warranty, whether express
or implied, of fitness for a particular purpose, other than the warranty contained herein. The
manufacturer specifically disclaims any liability and shall not be liable for any consequential
or incidental loss or damage, including but not limited to any labor / expense costs involved in
the replacement or repair of said product.
Contact the Customer Service Team at 1-877-527-0313 or visit www.HOMEDEPOT.com.
Questions, problems, missing parts? Before returning to the store,
call CE Tech Customer Service
8 a.m.- 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
